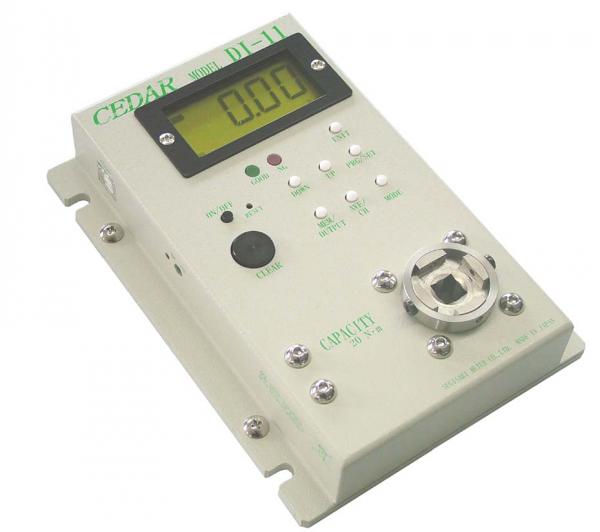

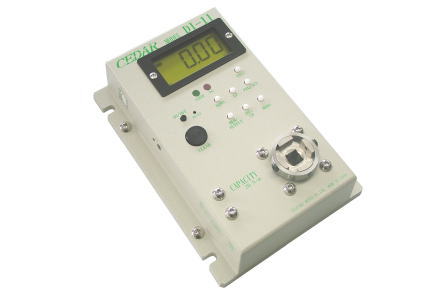

Cedar รุ่น DI-11 เครื่องทดสอบแรงบิด,Tool management torque tester,Meas.range0.10～20Nm

Range of measurement

0.10 to 20 N ・ m

Accuracy

± 0.5% (less than 499 digits ± 3 digits)

Display

LCD 4-digit digital display

Measurement direction

CW-CCW (right / left)

Measurement mode

PP (peak mode), TRACK (track mode),
PD (peak down mode), C (real-time output mode)

Upper and lower limit setting

Both upper and lower limits can be set within the measurement range

Admission decision

You can check the pass / fail judgment within the set range
(10 digits or more in PP mode)
Check by lighting the lamp
GOOD ( pass ) ・ ・ ・ Green lights NG (No) ・ ・ ・ Blinks red

Data output / memory

ASCII format (baud rate 19200) / 800 data storage

Display auto clear

The display is automatically cleared in 0.1 to 3.0 seconds (0.5 second intervals).If set in 0.0 seconds, the display will be cleared manually.

Auto power off

Power off after leaving for 10 minutes

Charging time / usage time

Charge for about 3 hours / Can be used continuously for about 12 hours at maximum charge

accessories

Electric screwdriver measurement joint SJ-50 x 1, SJ-100 x 1

Dedicated charger

Inspection report, calibration certificate, traceability system diagram
