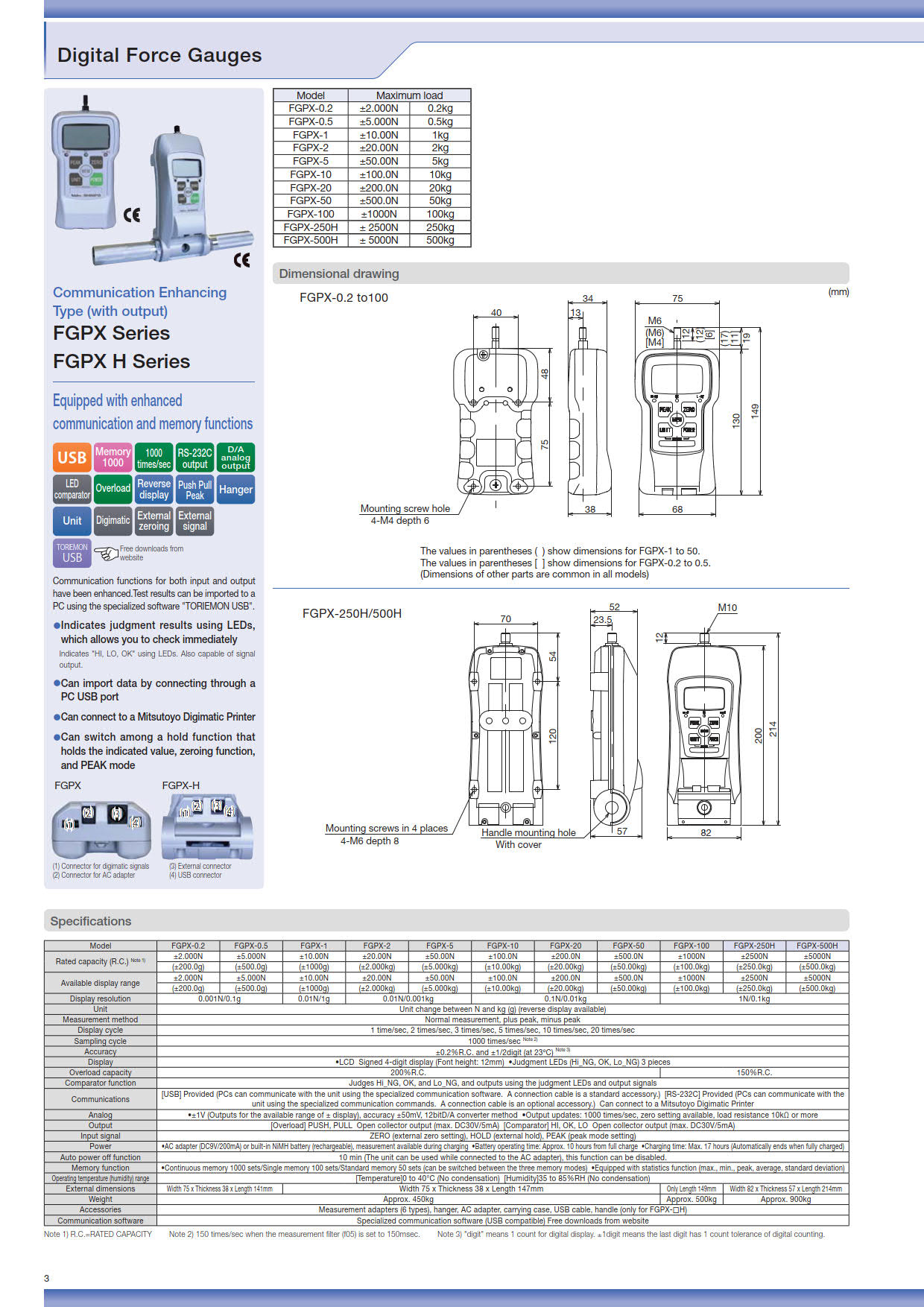

Shimpo รุ่นFGPX-20เครื่องทดสอบแรงดึงแรงกดแบบดิจิตอลDigital Force Gauge ±200.0N 20kg

Model

FGPX-0.2

FGPX-0.5

FGPX-1

FGPX-2

FGPX-5

FGPX-10

FGPX-20

FGPX-50

FGPX-100

Capacity(R.C.)

±2.000N
(±200.0g)
(±0.5lb)

±5.000N
(±500.0g)
(±0.1lb)

 ±10.00N
 (±1000g)
 (±0.2lb)

 ±20.00N
 (±2.000kg)
 (±5lb)

 ±50.00N
 (±5.000kg)
 (±10lb)

 ±100.0N
 (±10.00kg)
 (±20lb)

 ±200.0N
 (±20.00kg)
 (±50lb)

 ±500.0N
 (±50.00kg)
 (±100lb)

 ±1000N
 (±100.0kg)
 (±200lb)

Display range

±2.000N
±200.0g
±0.5lb

 ±5.000N
 ±500.0g
 ±0.1lb

 ±10.00N
 ±1000g
 ±0.2lb

 ±20.00N
 ±2000kg
 ±5lb

 ±50.00N
 ±5.000kg
 ±10lb

 ±100.0N
 ±10.00kg
 ±20lb

 ±200.0N
 ±20.00kg
 ±50lb

 ±500.0N
 ±50.00kg
 ±100lb

 ±1000N
 ±100.0kg
 ±200lb

Resolution

0.001N
0.1g
0.001lb

 0.01N
 1g
 0.001lb

 0.01N
 0.001kg
 0.001lb

 0.01N
 0.001kg
 0.01lb

 0.1N
 0.01kg
 0.01lb

 0.1N
 0.01kg
 0.1lb

 1N
 0.1kg
 0.1lb

Unit

N,kg(g),lb(oz)(Reversible display)

Measuring mode

Standard measuring,Plus peak measuring,Minus peak measuring

Display cycle

1,2,3,5,10,20 times per second

Sampling Rate

1000 times per second

Accuracy

±0.2% R.C. ±1/2digit(23℃)

Influence of temperature

Gain:±0.01%LOAD/℃ Zero:±0.01%/R.C./℃(Drift of zero point can be cancelled with tracking function.)

Display

Main display:4-digits 12mm high, Reversible display

Unit display:3-digits 7mm high

Other display
1."LO BAT"(Decrease battely voltage),
2."BAT"(Battery charge),
3."OVR"(Over load),
4."Peak"(Peak hold mode)

Overload

200% R.C.

 150%R.C.

Tracking

Available(ON/OFF)

 Output

USB

Communicate with PC by special application software (max 100x/s). Connection cable is a standard accessory.

RS-232C

Communicate with PC by special command(maximum 100 times per second), Connection cable is option.

Analog

±1V, Accuracy ±50mV, through a 12 bit D/A converter

Output update 1000 times per second, Acceptable tare, Load resistance is more than 10k Ω

 Overload/Comparator

Open-collector output(Max DC30V/5mA).Either overload output or comparator output.

Power

Rechargeable Nickel hydride battery or AC adapter/charger, measurable during the charge

Operating hours: about 8 hours after full charge

Charging time: Max 16 hours (when the battery is full, charge ends automatically.)

Auto Power Off

10 minutes (not active if adapter/charge is in use) or OFF

Memory function

Continuous memory: 1000 data, Single memory: 100 data, Standard memory: 50 data
Statistic function(max, minimum, peak, average, standard deviation)

Comparator function

Yes (high and low)

Temperature range

0-40℃ no condensation

Humidity range

35～85%RH no condensation

Dimensions

147mm *(L)×75mm(W)×38mm(H)

Weight

Approx.450g

 Approx.500g

Accessories(Included)

AC adapter/charger, carrying case, hook, chisel, flat head, notched head, hanger, cone head, extension rod, USB cable

Application software

Application software (USB version), ToriemonUSB
