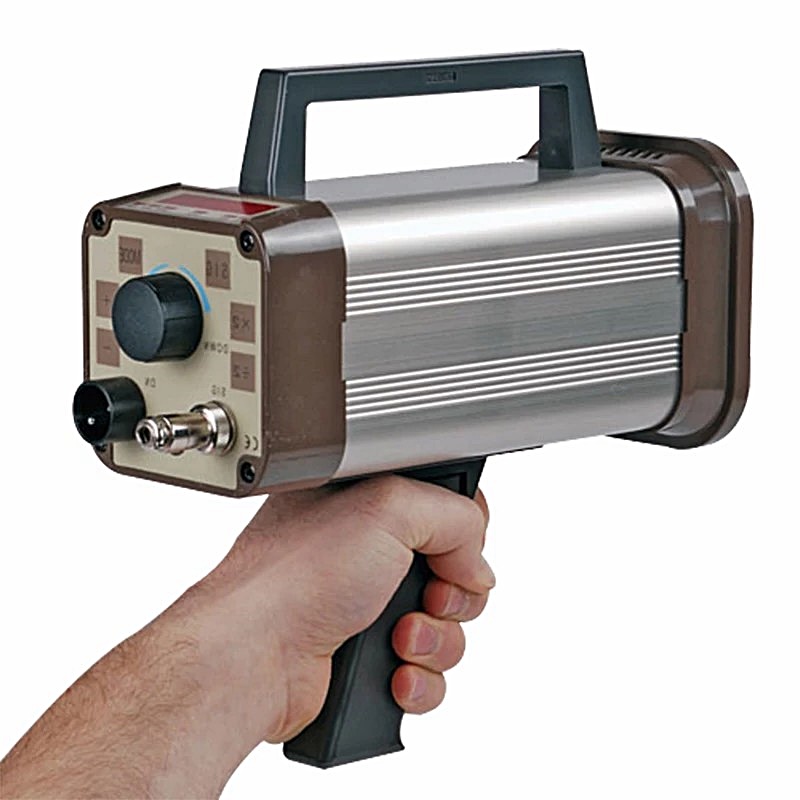

NidecShimpo รุ่นDT-311Nเครื่องวัดความเร็วรอบแบบดิจิตัล,Digital Stroboscope General-purpose type,5-digit,Meas.range:40.0～35,000rpm.

Model

DT-311N

Number of flashes (rpm)

40.0 to 35000 0 to 35000 in external sync mode

Internal oscillation
mode

Display decomposition function

0.1: 40.0 ~ 5000
0.2: ~ 8000
0.5: ~ 10000
1: ~ 35000

Jump function

Yes (Pressing the dedicated switch doubles or doubles the number of flashes)

Integer function

Yes (display decimals, do not set)

Memory function

Yes (memorizes the number of flashes when the power is turned off, and then flashes at that number of flashes when the power is turned on)

External sync
mode

input signal

Voltage input H level: 2.5V to 12V
L level: 0.8V MAX
Pulse width 50μs or more
Input impedance 10kΩ or more

Speed measurement function

40.0 to 35000 rpm (disabled during delayed flash)

Delayed emission

In the range of 40.0 to 10000 rpm
, the delay angle can be set every 0 to 359 ° 1 °, or the
delay time can be set every 0 to 2000 ms 1 ms.

display

5-digit red LED 7 segment

Synchronous output signal

12V voltage signal Pulse width approx. 400μs

Setter

Multi-turn encoder, tact switch

Flash light source

Xenon lamp

Ramp input

10W

Power supply

AC100-120V

Luminous timer

Continuous lighting or stop emitting light after a set time of 1 to 120 minutes

Power output for sensor

DC12V 40mA

Power cord

2.4m

Operating temperature

0-40 ℃

mass

1.2kg

accessories

Pistol grip
