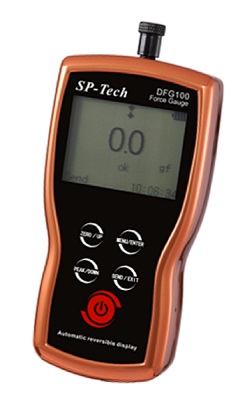

SP Tech รุ่นDFGเกจวัดแรงดึงแรงกดแบบดิจิตอล,Digital Force Gauge,Accuracy:± 0.2% FS,±1LSD

Model number

DFG Digital Force Gauge

Accuracy

± 0.2% FS, ± 1 LSD

Selectable unit

mN, N, gf, kgf, ozf and lbf.

display

128 * 64 dot matrix LCD with LED backlight

Overload capacity

~ 5N: 150% of FS (LCD display flashes above 110%)

10N ~: 200% of FS (LCD display flashes over 110%)

Overload protection

Overload protection mechanism to prevent damage

Measuring method

Peak, automatic peak or track mode

Data sampling rate

1000 Hz

Peak capture rate

1000 Hz

Update rate display

10 times / sec

Memory

1000 data

Set point

Programmable upper and lower limits

Battery indicator

The battery icon flashes when the battery is low

Power supply

3.6VDC 800mAh NiMH rechargeable battery

Battery life

Continuous use for about 20 hours per charge

Charger / adapter

Universal USB / BM Charger, Input 110 ~ 240VAC

Effect of temperature

0.03% FS per ° C

output

RS-232, output within setpoint range, output outside setpoint range

use

Temperature: -10 ~ 40 ℃

Relative humidity: 20 to 0 percent

storage

Temperature: -20 ℃ ~ 50 ℃

Relative humidity: 5 to 95 percent

size

160 * 73 * 34mm

weight

0.7kg (1.5lb)
