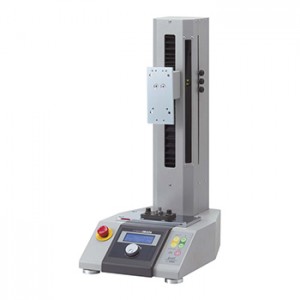

Imada รุ่นEMX-1000Nแท่นจับยึดสำหรับเครื่องทดสอบแรงดึงแรงกดแบบแนวตั้ง,Vertical Electric Measuring Stand/Speed Digital:0.5～600mm/min

Load value

1000 N

speed

Digital 0.5-600 mm / min
[0.5-20 mm / min: Setting 0.5 mm / min unit]
[20-100 mm / min: Setting 5 mm / min unit]
[100-600 mm / min: Setting 10 mm / min unit]

Maximum sample height _{(* 1)}

320 mm

Flexibility

[Normal specifications] 0.25 mm or less
[Optional long stroke] 0.6 mm or less

Stroke limit

Knob type vertical stroke limit
Digital stroke limit

action mode

Manual mode / JOG mode / Cycle mode

function

Counter: Maximum 65535 times (measurement count setting / counting function)
Timer: Maximum 99 minutes 59 seconds 9 (0.1 second unit)
Digital displacement limit (movement amount): 0.1 mm unit
Measurement condition Memory function: Maximum 5 cases

control

Emergency stop, load control _{(* 2)} , overload prevention _{(* 2 * 3)} , external input / output

Operating environment temperature and humidity

0 ° C-40 ° C
35-70% (no condensation)

Power-supply voltage

AC100-240V, 50 / 60Hz _{(Specify from} 100, 120,  _{230V. Accessories are different.)}

power consumption

50W

size

w280 x D410 x H645 mm

weight

Approximately 23.5 kg

accessories

Instruction manual, power cord, spare fuse, tool, GF-2 (chuck mounting plate)

Available options _{(* 4)}

-L: Stroke 300mm extension-
FA: Built-in displacement meter

Mountable force gauge _{(* 5)}

Mechanical force gauge: FB, PS, PSM, PSH series
Digital force gauge: DST, DSV, ZTS, ZTA series
Load cell: DPU series (500N or less _{* 6} )
