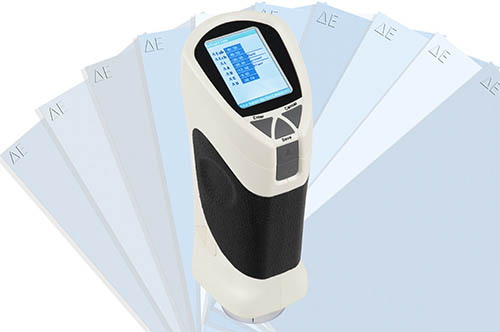

PCE รุ่นTCR-200เครื่องวัดค่าสีColorimeter

Repeatability

0.08

Illumination System

8/d, SCI

Light source

standard white light

Detection angle

10º according to CIE standard

Detection conditions

D65, D50, F11

Balancing of measured values

standard white according to CIE, standard black according to CIE

Memory

12 groups with 30 values each

Display

L*a*b*, L*c*h*, E*ab, RGB
chromatic aberration of L*a*b* and L*c*h*

Diameter

8 mm

Voltage Supply

4 x AA 1.5 V, external 5 V power plug

OS Comaptibility

Windows XP, Windows Vista, Windows 7

Dimentions

60 x 110 x 40 mm / 2.3 x 4.3 x 1.5 in

Regulations to evaluate colour measurements with the Color Device PCE-TCR 200

Range of colour differences

Valuation

0 ... 0.25 ΔE

small deviation, deviation acceptable

0.25 ... 0.5 ΔE

less chromatic aberration, acceptable in a few applications

0.5 ... 1.0 ΔE

less or average chromatic aberration, acceptable in a few applications

1.0 ... 2.0 ΔE

average deviation of colours, acceptable in a few applications

2.0 ... 4.0 ΔE

high colour deviation, only acceptable in special applications

> 4.0 ΔE

really high colour deviation, not acceptable
