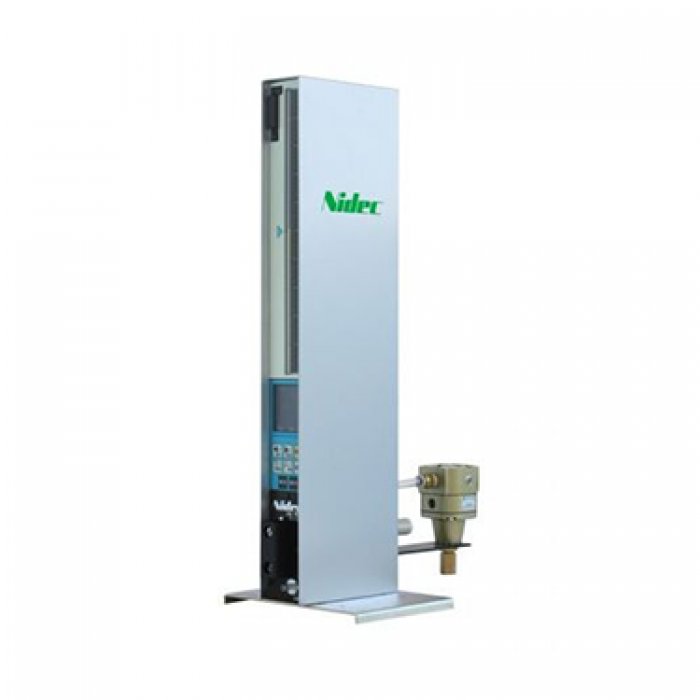

Nidec รุ่นCAG-4000-20เครื่องวัดคุณภาพชิ้นงาน(งานดี-งานเสีย)เหมาะสำหรับการผลิตชิ้นงานจำนวนมากNew Column Type Air-Micrometer with Reguration/Air filter Range:20μm.

basic specifications

A / E converter

Number of vehicles installed

1

Number of measurement items 1

display

Bar display

101 dot color LED

measured value

TFT color LCD

Configuration

Number of programs

30

Menu display language

Japanese / English / Chinese

Change the setting value

CAG body / PC

PC changed via SD card

Master alignment

ZERO / MAG adjustment method

Pneumatic

Master alignment method

Automatic (small / large)

measurement

Measurement range [μm]

10

20

50

100

200

Display resolution [μm]

0.1 / 1 selection formula

1

Measurement function

standard

real time

Peak measurement function is optional

Judgment function

standard

-NG / OK / + NG

Rank judgment function is optional

Data storage contents

CSV file format (date / time / measured value / judgment)

Data storage destination

SD card (SDHC) * Sold separately

Supports 32GB or less

External input / output

RS-232C / USB 2.0

standard

1 port each

External switch input

standard

Measurement / RESET / minor / major

For foot switch and push button BOX connection

Digimatic output

option

1 port

For U-WAVE connection

DC input / output

option

Judgment output

BCD output

Rank output

Specify any one

usage environment

Operating temperature [℃]

5 --40

Power supply

AC100-240V

AC adapter included

Supply air pressure [MPa]

0.3 --0.7

Clean dry air (no water or oil)

Supply air volume [L / min]

50

60 [L / min] for a measurement range of 200 μm

External dimensions (WxDxH) [mm]

50 x 131 (+160) x 480

D = Including regulator unevenness

Weight [kg]

3.5

Display (excluding accessories)
