NidecSHIMPO รุ่นDT-735เครื่องวัดความเร็วรอบแบบดิจิตอล,Portable Stroboscope with Rechargeable Battery,Flashing range:60~12,000 FPM

NidecSHIMPO รุ่นDT-735เครื่องวัดความเร็วรอบแบบดิจิตอล,Portable Stroboscope with Rechargeable Battery,Flashing range:60~12,000 FPM
NidecSHIMPO รุ่นDT-735เครื่องวัดความเร็วรอบแบบดิจิตอล,Portable Stroboscope with Rechargeable Battery,Flashing range:60~12,000 FPMNidecSHIMPO รุ่นDT-735เครื่องวัดความเร็วรอบแบบดิจิตอล,Portable Stroboscope with Rechargeable Battery,Flashing range:60~12,000 FPMNidecSHIMPO รุ่นDT-735เครื่องวัดความเร็วรอบแบบดิจิตอล,Portable Stroboscope with Rechargeable Battery,Flashing range:60~12,000 FPMNidecSHIMPO รุ่นDT-735เครื่องวัดความเร็วรอบแบบดิจิตอล,Portable Stroboscope with Rechargeable Battery,Flashing range:60~12,000 FPM
รหัสสินค้า SKU-08828
หมวดหมู่ •เครื่องวัดความเร็วรอบแบบStroboscope
ราคาปกติ 60,000.00 บาท
ลดเหลือ 0.00 บาท
สถานะสินค้า Pre-Order
ลงสินค้า 27 ส.ค. 2564
อัพเดทล่าสุด 2 ธ.ค. 2566
คงเหลือ 1 ชิ้น
จำนวน
ชิ้น
หยิบลงตะกร้า
หนังสือรับรองบริษัท
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay

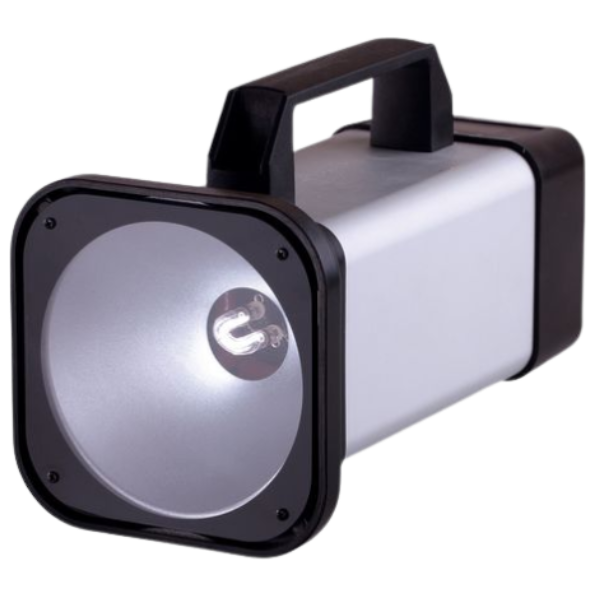

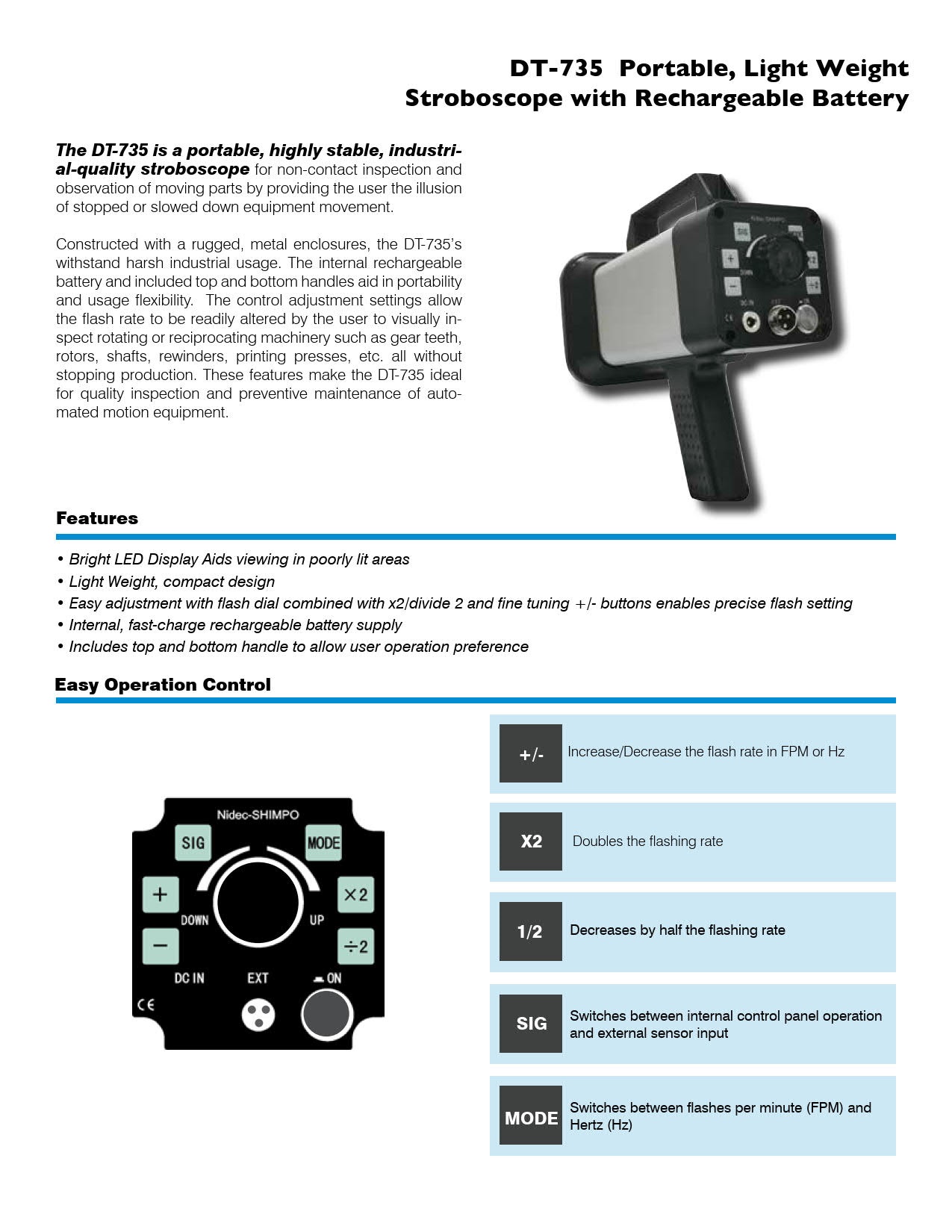

The DT-735 is a portable, highly stable, industrial-quality stroboscope for non-contact inspection and observation of moving parts by providing the user the illusion of stopped or slowed down equipment movement.
Constructed with a rugged, metal enclosure, the DT-735’s withstand harsh industrial usage. The internal rechargeable battery and included top and bottom handles aid in portability and usage flexibility. The control adjustment settings allow the flash rate to be readily altered by the user to visually inspect rotating or reciprocating machinery such as gear teeth, rotors, shafts, rewinders, printing presses, etc. all without stopping production.

These features make the DT-735 ideal for quality inspection and preventive maintenance of automated motion equipment.

  • NIST-Traceable Calibration Certificate & Test Report optionally available
  • Can be operated directly from AC-Power for continuous use
  • Includes top and bottom handle to allow user operation preference
  • Easy-to-use controls with bright LED display
  • Made in China
  • 1-year warranty
  • CE Certified

sensor

Piezoelectric vibration pickup (with magnet)

Measurement mode

Acceleration (ACC)
Acceleration peak (ACC PEAK)
Velocity (VEL)
Displacement (DISP)

Measuring range



L range

H range

Acceleration
Acceleration Peak
Velocity
Displacement

0.0~20.0m/s2
0.0~20.0m/s2
0.0~20.0mm/s
0~200?m

0~200m/s2
0~200m/s2
0~200mm/s
0~1990?m

Measurement frequency range

Acceleration: 1kHz~20kHz
Acceleration Peak: 1kHz~20kHz
Speed: 10Hz~1kHz
Displacement: 10Hz~1kHz

Arithmetic processing

Acceleration: RMS value
Acceleration peak: PEAK value
Speed: RMS value
Displacement: PP value

Display method

LCD 4.5 digits, with backlight

Low battery display

Mark displayed on LCD

Operating temperature limit

0~50℃ (90%RH non-condensing)

Storage temperature range

-10~60℃ (90%RH non-condensing)

power supply

1 AA alkaline battery, can be used continuously for more than 8 hours

External dimensions

69W×154H×30D

mass

Approximately 140g (main body only, including batteries)
