รหัสสินค้า | SKU-08638 |
หมวดหมู่ | Ultrasonic thickness gauge |
ราคาปกติ | |
ลดเหลือ | 0.00 บาท |
สถานะสินค้า | Pre-Order |
ลงสินค้า | 14 ส.ค. 2564 |
อัพเดทล่าสุด | 14 ส.ค. 2564 |
คงเหลือ | 1 ชิ้น |
จำนวน | ชิ้น |
Specifications
Display | LCD |
Operating Principle | Ultrasonic |
Measuring Range | 0.75~400mm(45#steel)(Depend on Probe) |

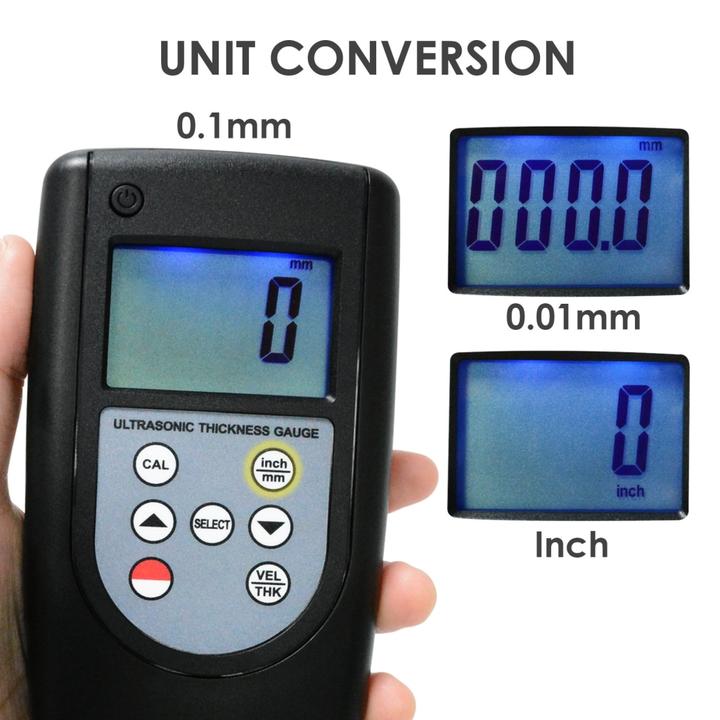

Resolution | 0.1mm/0.01mm/0.001inch |
Accuracy | ±(0.5%n+0.1) |
Lower Limit of Pipes |
Φ15x2.0mm Φ20x3.0 mm
Determined By Transducer
|
Sound Velocity | 1000~9999 m/s |
Operating Conditions | Temperature:0~40ºC Humidity:<85%RH |
Power Supply | 4x1.5V AAA(UM-4)Battery |
Dimensions | 140x72x34mm |
Weight | 185g(Not Including Batteries) |
Standard Accessories | Main Unit |
Standard Probe | |
Coupling Agent | |
Carrying Case(B04) | |
Operation Manual | |
Optional Accessories | Other Special-purpose Probe |
RS-232C Data Cable with Software | |
Bluetooth Data Adapter with Software |
