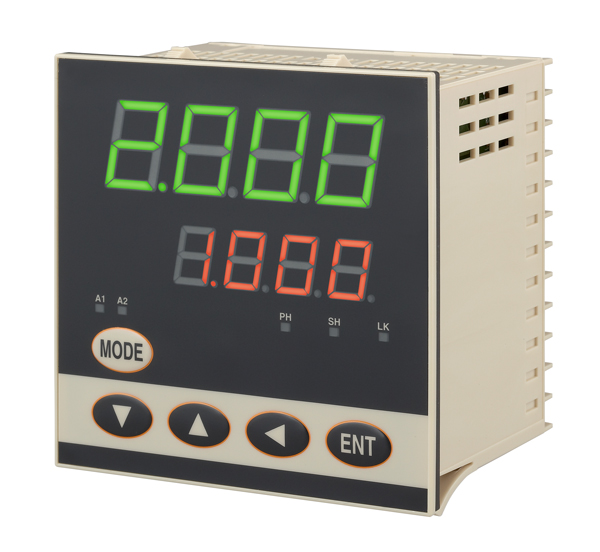

JapanSensor รุ่นTMCX-NDEเครื่องอ่านแสดงค่าแบบดิจิตัลสำหรับเทอร์โมมิเตอร์Display setting Device,Power:DC8～27V,Setting range0.050～1.000

Specification

●Supporting thermometer：TMHX-C/A/P/R・FTKX-A/P/R
Old model(Guarantee only for the basic operation)
Connect by the optional conversion terminal (TMBX-C).
TMH9 series RS232C output type
TMH90 series RS232C output type
FTK9 series RS232C output type

●Communication with thermometer, speed
RS232C(Output swing width ±4V )every 5mSec Max

●Connection with the thermometer：e-CON

●Emissivity
Guaranteed range 0.3 ～ 1.0
Setting range 0.050～ 1.000（ Setting resolution 0.001）
With reflection correction.
Analog external setting function (Analog input 0～ 5V corresponds to emissivity 0～ 1.0)
Response time: Max 2seconds ＋ smoothing setting value

●Analog output
Analog output1
Analog output of TMHX/FTKX series thermometer
As for the specification, refer to the thermometer instruction manual

●Alarm output
One.Hysteresis :0 ～ 99.9℃, resolution 0.1℃
Photo coupler :DC24V, 50mA

●Peak hold
Reset type(Selected)
Time : 0.01 ～ 10s changeable
Discharge: time 0.01～10s, level 0.20～1.00

●Sample hold ：Updated with [ENT] key

●Sensor correction function
Span；0.50 ～ 2.00
Zero；－50.0 ～ ＋50.0 ℃（ﾟＦ）

●Selection of indication (Measureing mode)
Upper display: temperature/alarm H/alarm L/blank
Lower display: temperature unit/emissivity/alarm H/alarm L/blank

●Display resolution
Changeable to 1℃ or 0.1℃（1℃ in case of more than 1000℃）max3276℃

●Indication unit ：°C or °F

●Supply voltage
DC8 ～ 27V 9.5W Max(Including thermometer)
Caution)In case of using thermometer with analog output 0～5V/10V.
0～ 5V output : 9～ 27V input
0～10V output :14～ 27V input
No power supply code

●Size ：48W×48H×66Dmm 150 g

●Applied panel thickness ：1.0 – 3.5mm

●Ambient temperature：-10 – 50℃

●Ambient humidity ：Less than 90%RH (without dew drop)

●Storage temperature ：-20 – 65℃

●CE Marking
EMC：EN61326-1:2013、RoHS：EN50581:2012
LVD：EN61010-1:2010
