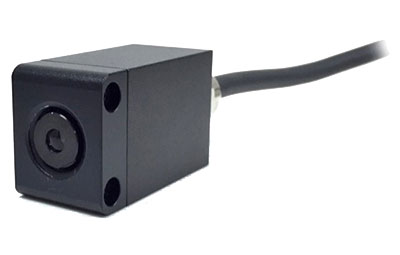

Japan Sensor รุ่นTMHX-CNE0500-0035E1.6-000เทอร์โมมิเตอร์ชนิดใช้งานโดยการสะท้อนของรังสีRadiation thermometer Temperature range:0°C~500°C

Model

TMHX-CNE0500-0035E1.6

Temperature range

0-500 ℃

Effective wavelength

2 to 6.8 μm

Detection element

InSb

Standard measurement distance

35mm

* Can be used at other distances. Please refer to the optical path diagram.

Standard target size

Ø1.6mm

Aim

LED aiming

Accuracy rating

Less than 300 ℃: ± 3.0 ℃
300 ℃ or more: ± 1% of measured value

Reproducibility

± 0.5 ℃

Measurement resolution

0.5 ℃ or less

Response time
(variable with smoothing function)

0.01 to 5 seconds
(0 to 95% analog output)

Warm-up time

1 minute

Output Analog output
(non-insulated)
Output type (switching)

DC4 ~ 20mA, DC0 ~ 20mA, mV / ℃, DC0 ~ 1V
(optional 0 ~ 5V, 0 ~ 10V available)

Output RS232C output
(RS232C compliant, non-insulated)

Output swing width: Approximately ± 4V
Communication speed: 4800,9600,19200,38400,57600,115200BPS

Output Alarm output
(non-insulated)

Open drain: DC27V, 0.2A

Peak hold

Reset method (selection) Time: 0.01 to 10 seconds Variable
discharge: Time 0.01 to 10 seconds, level 0.2 to 1.0

Emissivity correction

Guarantee range 0.3 to 1.0
Setting range 0.050 to 1.000 (setting resolution 0.001) With
reflection correction function

Sensor correction function

Span; 0.500 to 2.000
zero; -50 to + 50 ° C (° F)

Ambient temperature and humidity used

0 to 50 ° C (storage ambient temperature: -15 to 70 ° C)
30 to 85% RH (no condensation)

Power-supply voltage

DC4.7-27V, 0.1A Max

Cable length (standard)

2m
