| รหัสสินค้า | SKU-08489 |
| หมวดหมู่ | เครื่องวัดแรงดึงแรงกด(Force Meter) |
| ราคาปกติ | |
| ลดเหลือ | 0.00 บาท |
| สถานะสินค้า | Pre-Order |
| สภาพ | สินค้าใหม่ |
| ลงสินค้า | 30 ก.ค. 2564 |
| อัพเดทล่าสุด | 30 ก.ค. 2564 |
| คงเหลือ | 1 ชิ้น |
| จำนวน | ชิ้น |
|
|

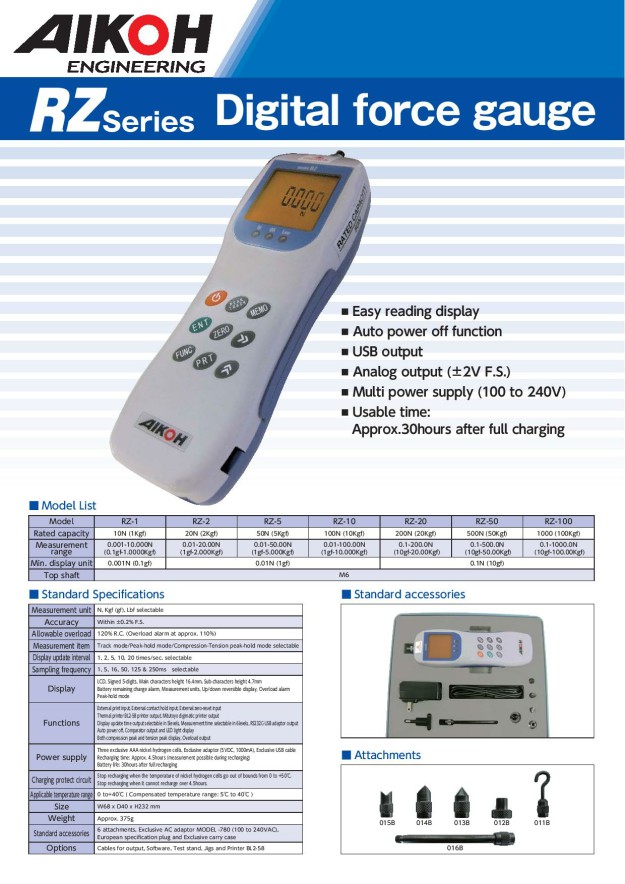

capacity | display unit |
| RZ-1 | 1kgf | 0.1gf |
| RZ-2 | 2kgf | 1gf |
| RZ-5 | 5kgf | 1gf |
| RZ-10 | 10kgf | 1gf |
| RZ-20 | 20kgf | 10gf |
| RZ-50 | 50kgf | 10gf |
| RZ-100 | 100kgf | 10gf |
| RZ-1 | RZ-2 | RZ-5 | RZ-10 | RZ-20 | RZ-50 | RZ-100 | |
| Rated capacity | 10N (1Kgf) |
20N (2Kgf) |
50N (5Kgf) |
100N (10Kgf) |
200N (20Kgf) |
500N (50Kgf) |
1000N (100Kgf) |
| Min. display unit | 0.001N (0.1gf) |
0.01N (1gf) |
0.1N (10gf) |
||||
| Accuracy | ±0.2%F.S. | ||||||
| Sampling cycle | 1 ms, 5 ms, 16 ms, 50 ms, 125 ms and 250 ms selectable | ||||||
| Display update interval | 1, 2, 5, 10, 20 times/sec. selectable | ||||||
| Display | LCD, signed, 5 digits | ||||||
| Output | USB output Analog voltage ±2V / F.S. Printer output Motorized stand control External connection hold |
||||||
| Mass | Approx. 375g | ||||||
| Power supply | Nickel-metal hydride battery, AC adapter Model 780(100VAC – 240VAC) | ||||||
| Standard accessories |
※Hook of 011B for RZ-100 is different from standard hook,the wire diameter is Φ4 |
||||||
| Options | Output cable, software RZ-3000, test stand, printer BL2-58SNWJC | ||||||
| Optional cables | I/O cable RZ-OP-1, I/O cable RZ-OP-2, Mitutoyo DP-1VR printer cable RZ-OP-3, Sanei Electric line thermal printer cable RZ-OP-4 RZ-OP-1 : For Stand control function only RZ-OP-2 : For Stand control function, Analog output and Comparator output |
||||||
