เครื่องมือวัดอุตสาหกรรม l Measuring Instruments [10184]
คุณสมบัติการใช้งานเครื่องมือวัด l Featured Products [870]




| รหัสสินค้า | SKU-00761 |
| หมวดหมู่ | •แท่นทดสอบสำหรับเครื่องวัดแรงดึงแรงกด(Test Stand for Force Gauge) |
| ราคาปกติ | |
| ลดเหลือ | 0.00 บาท |
| สถานะสินค้า | Pre-Order |
| สภาพ | สินค้าใหม่ |
| ลงสินค้า | 5 พ.ย. 2561 |
| อัพเดทล่าสุด | 26 พ.ย. 2566 |
| คงเหลือ | 1 ชิ้น |
| จำนวน | ชิ้น |

| Max. force | 500N(50kgf) |
| Test speed | Manual |
| Stroke | 240 mm, movement by 3 mm by one turn of handle |

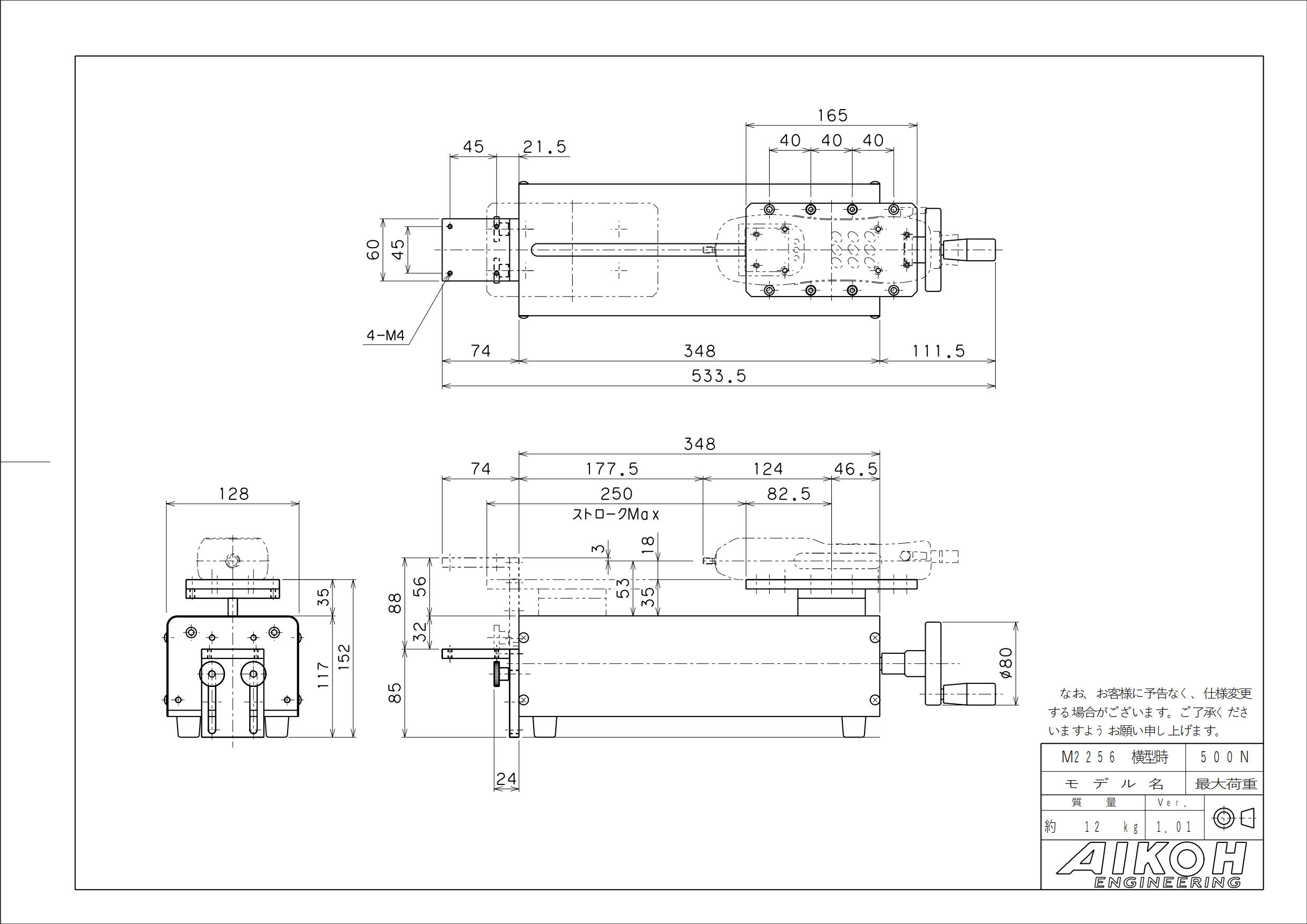

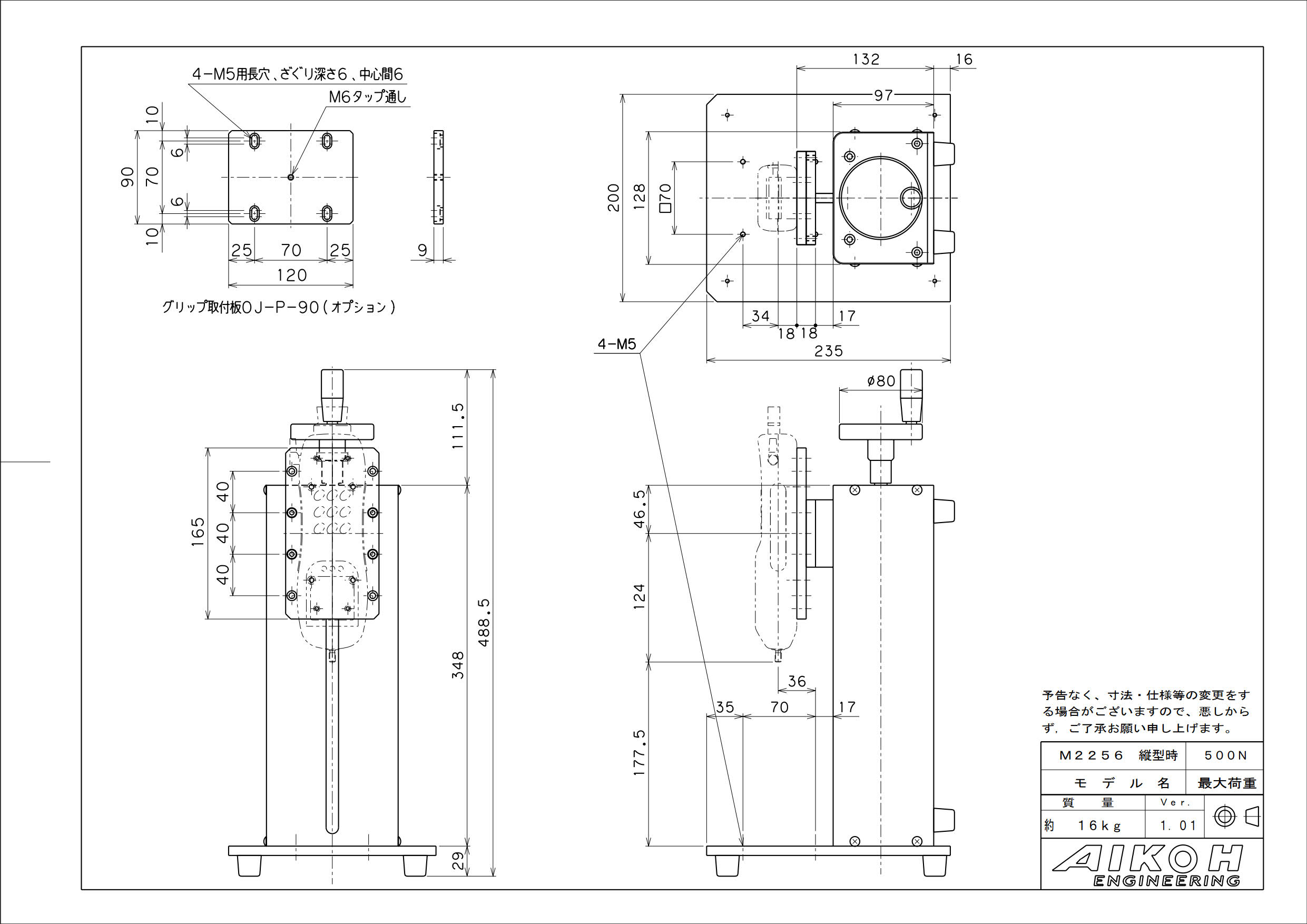

| Table size | Vertical: W200 x D120 mm Horizontal: W70 x D60 mm |
| Dimensions | W200 x H500 x D150 mm (handle included) |
| Stand mass | Vertical: Approx. 16 kg Horizontal: Approx. 12 kg |
| Options | Force gage jig/fixture cable jig mounting plate OJ-P-90 (for tensile test) |
