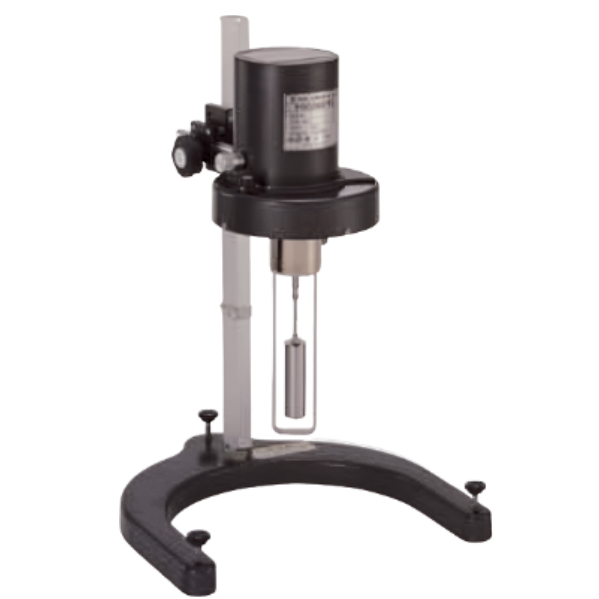

TokiSangyo รุ่นBS-Ⅱเครื่องวัดความหนืด,BSⅡ type viscometer,Viscosity meas.range:1,200～12,000,000mPa-s*2

The rotation of the motor of the viscometer body is transmitted to the rotor via the spring.The viscous friction torque of the liquid acts on the outer circumference of the rotor immersed in the measuring liquid, and the torque and the force of the spring are balanced and the rotor rotates steadily.

The magnitude of the torque is the declination of the pointer fixed to the rotor shaft and is proportional to the value read by the scale plate directly connected to the motor shaft.Absolute viscosity is calculated from this indicated value and the converted multiplier.

• Wide measurement range from low to high viscosity
• Wetted parts are SUS304/303
• Possible to measure the viscosity of corrosive substances
• Ideal for measuring flow characteristics of non-Newtonian liquids
• Highly reliable measurements are possible even in the case of asphalt, high-temperature solutions, gel-like substances, etc.
• Know-how accumulated through extensive experience
• The viscosity of more than 30 types of substances such as ink and rubber can be displayed as measured values using this viscometer
