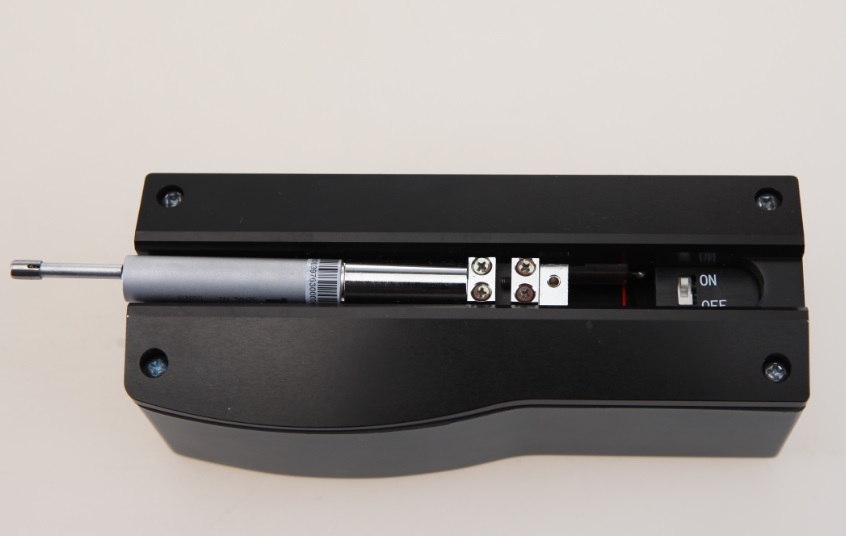

Time รหัส Time3200 เครื่องทดสอบความเรียบของผิวแบบพกพา,Portable roughness tester

TR200/TIME3200

TR220/TIME3202

Roughness Parameters

Ra, Rz, Ry, Rq, Rt, Rp, Rmax, Rv, R3z, RS, RSm, RSk, Rmr, P;
µm/µinch switchable

Ra, Rq, Rz, Rt, Rp, Rv, Ry, RS, RSm, RSk, Rz (JIS), R3z, Rmax, RPc, Rk, Rpk, Rvk, Mr1 and Mr2;
µm/µinch switchable

Measuring Range

Ra, Rq: 0.005 - 16 µm
Rz, Ry, Rp, Rt, R3z: 0.02 - 160 µm
RSm, RS: 2 - 4,000 µm
Tp: 1 - 100 % (%Ry)

Ra: 0.005 - 16 µm
Rz: 0.02 - 160 µm

Resolution

0.001 μm / 0.04 µinch

Cut-off Wavelength

0.25 mm / 0.8 mm / 2.5 mm / Auto

Traversing Length Ln

1 - 5 cut-off (selectable)

Traversing Path Ln

1 - 5 cut-off + 2 cut-off (selectable)

Digital Filter

RC, PC-RC, GAUSS, D-P

Probe/Stylus

Standard model TS-100, inductive, diamond tip 5µm radius, 90° angle

Probe Measuring Range

± 20µm / ± 40µm / ± 80µm

Boreholes from

6.0 mm, depth 15 mm (standard probe TS100)

Profiles

Primary profile (P), roughness profile (R), TP curve (material ratio Mr)

Finished profile (R)

Profile Magnification

Vv: 200x - 20000x
Vh: 20x, 50x, 200x

Functions

Display of probe tip position, battery status display, direct display of roughness parameters and profiles, direct printout, LCD brightness adjustment, automatic shutdown after 5 min with automatic storage, calibration via software (for each cut-off wavelength)

Display of probe tip position, direct display of roughness parameters, direct printout, memory for 15 measurements, shutdown after 5 min with storage of the last measured value, calibration via software

PC Data Processing

RS232; direct to printer TA230 or PC, Dataview software

Display

128 x 64 graphic LCD with backlight

Power Supply

Li-Ion battery 1000mAh, rechargeable, charger 220V, 50 Hz, capacity for 3000 measurements

Environment

0°C - 40ºC, ≤ 80% rel. humidity

Standard

ISO, DIN, ANSI, JIS (selectable in menu)

according to ISO class 3

Dimensions (L x W x H)

141 x 56 x 48 mm (device without probe)

Weight

480g

440g
