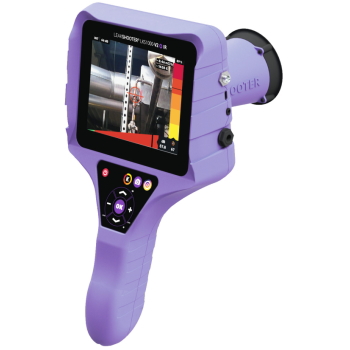

Sato รุ่น MJ-LKS-V2X เครื่องตรวจจับการรั่วไหลแบบกล้องอัลตราโซนิก,Ultrasonic camera Leak detector,Meas.range:-10～400°C(Thermo image)

• Visualization of air leak locations (visualization)
• Heterodyne technology makes inaudible ultrasonic waves audible
• Never miss a leak with dynamic targeting
• K (evaluation) mode: Leak level, flow rate (m 3 /h)
• Separate sensitivity adjustment and volume
• The sensor at the base of the cone identifies the leak location
• Thermo camera can measure the temperature of the object

Automobile factories, home appliance factories, semiconductor factories, pulp and paper factories, pharmaceutical factories, food factories, petroleum plants, chemical plants, power plants, office buildings, theme parks, aircraft maintenance yards, ship maintenance yards, etc.

• Air - more than just locating leaks

Sound waves with a wide range of frequencies are generated from the air leak, including ultrasonic waves around 40kHz (inaudible to the human ear).

It is possible to detect not only compressed gas (air, nitrogen, helium, carbon dioxide, freon gas, etc.) leaks, but also all ultrasonic waves that are generated due to facility abnormalities such as vacuum leaks, electrical failures, and bearing abnormalities.

Ground/rack piping (long-distance conduits, piping in plants, etc.), around various gas headers in buildings, valves and piping around equipment, hoses around welding machines, gas leaks inside insulation (when there is a large amount of leakage), around various gas tanks , 24/7 equipment peripheral diagnostics, etc.

• As a vacuum leak detector (vacuum leak inspection) in a vacuum process

Vacuum leaks are also captured with a camera monitor and headphones.
It is effective not only for normal air leaks, but also for checking vacuum leaks (leaks), which are reverse suction leaks.
Capture the leaking part with a camera and headphones.
The contents of the inspection can be saved as images, which is useful for creating reports.
(Note: The detection level is too different compared to expensive helium-type vacuum leak detectors.)

• As an electrical fault detection system (discharge detector: corona discharge/tracking detection)

Corona discharge can be recognized by image and sound even during the daytime under fine weather.
Detects insulation deterioration of transformers, etc. in a live-line state.
It can be used as a primary checker (discharge detector) for corona discharge detection.
Quickly detect insulation deterioration of transformers, etc. with sound and images without stopping electricity!
