รหัสสินค้า | SKU-06902 |
หมวดหมู่ | เครื่องมือวัดด้านสิ่งแวดล้อม(Environmental Measuring Instrument) |
ราคาปกติ | |
ลดเหลือ | 0.00 บาท |
สถานะสินค้า | Pre-Order |
ลงสินค้า | 31 พ.ค. 2564 |
อัพเดทล่าสุด | 31 พ.ค. 2564 |
คงเหลือ | 1 ชิ้น |
จำนวน | ชิ้น |

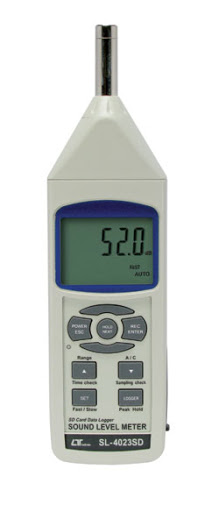

Measurement range | 30-130dB (3 range switching + auto) | |
---|---|---|
Lo | 30-80 dB | |
Med | 50-100 dB | |
HI | 80-130 dB | |
Auto auto | 30-130dB | |
resolution | 0.1dB | |
frequency | 31.5Hz-8,000 Hz | |
Frequency correction circuit | A or C characteristics | |
Microphone | 1/2 inch electric condenser microphone (outer diameter φ12.7 mm) | |
function | Maximum, minimum / peak hold / data hold automatic power off function |
|
accuracy | See table of frequency characteristics (IEC 61672 class 2) | |
Dynamic characteristics | FAST or SLOW | |
display | 52 x 38mm, large LCD display / backlight | |
Power supply | 6 AA batteries (* rechargeable batteries cannot be used) or AC adapter sold separately |
|
output | Data output RS232 serial interface | |
Size | 245 (H) x 68 (W) x 45 (D) mm | |
weight | About 489g | |
Data logger | Automatic | Measurement interval setting: 1,2,5,10,30,60,120,300,600,1800,3600 seconds (selectable) (1 second has the first data drop) |
Manual | Record from 1 to 99 points | |
SD card | Supports 1GB to 16GB | |
Operating environment temperature / humidity | Ambient operating temperature 0-50 ° C Ambient operating humidity 80% RH or less (no condensation) |
|

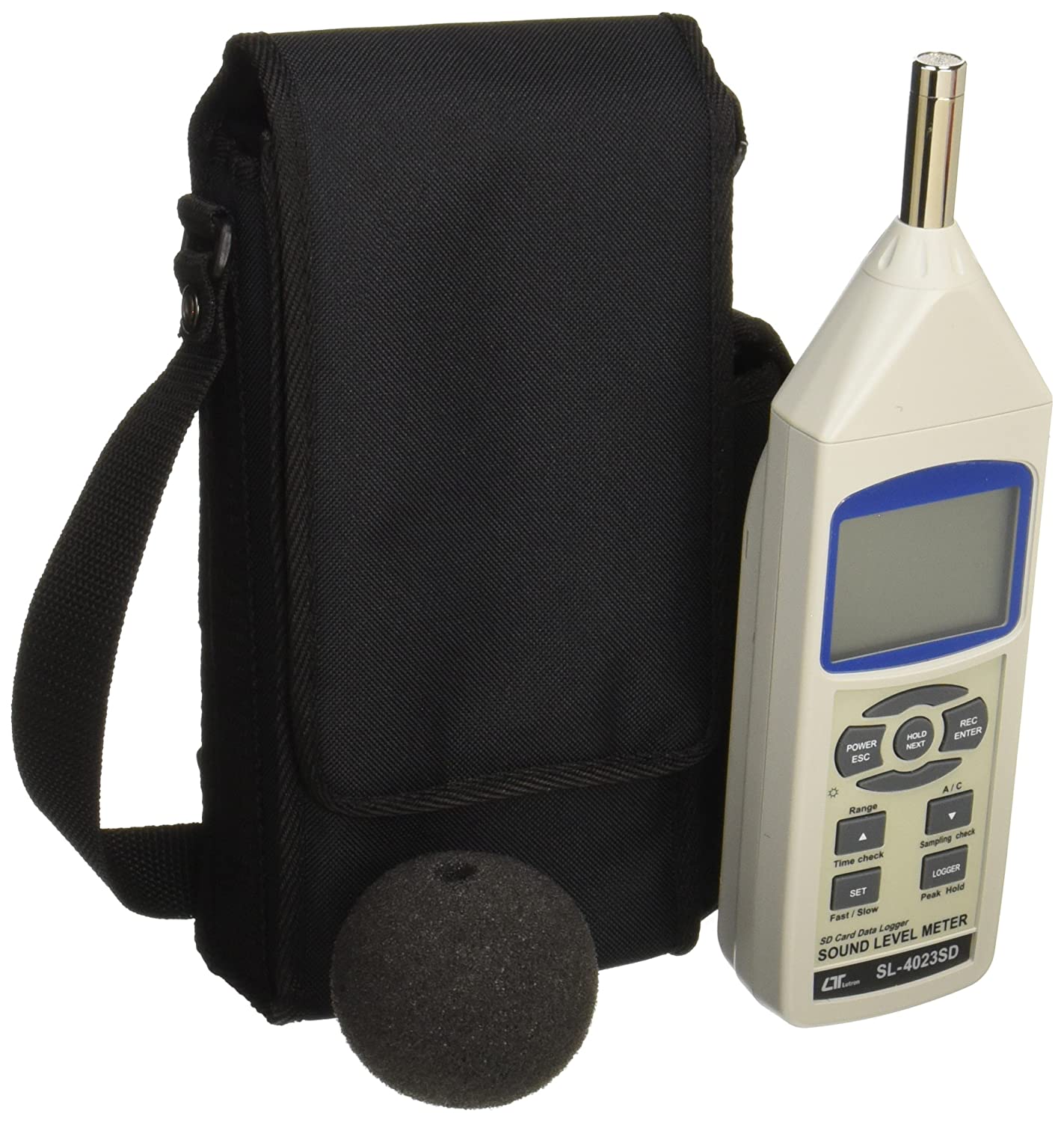

accessories | Windproof sponge x 1, instruction manual, carrying case, 6 AA batteries | |
option | Multi-logger collection software MJ-LOG2, AC adapter, calibrator | |
Since it is a measuring instrument (sound level meter) for self-management, it is not possible to enter numerical values in officially submitted documents. |
