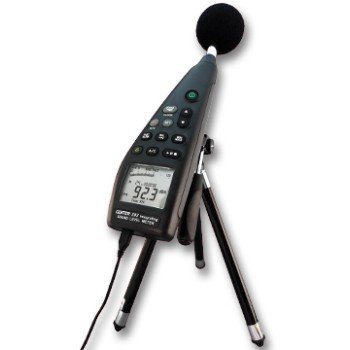

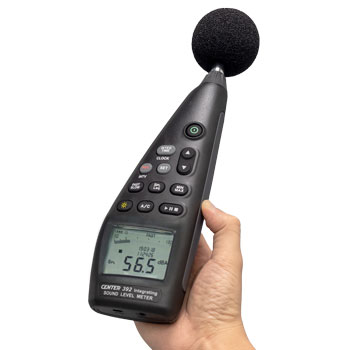

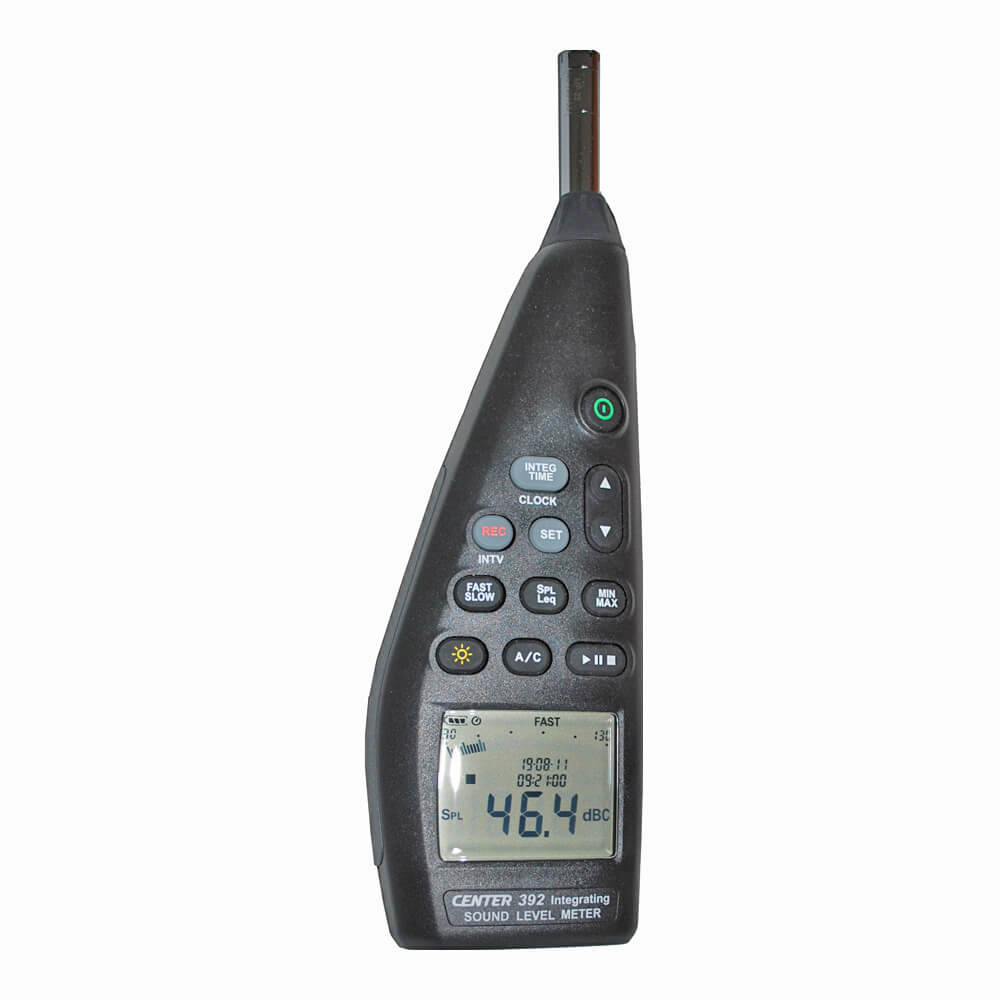

CENTER รุ่นCENTER392เครื่องวัดระดับเสียงData Logger Sound Level Meter CENTER392

CENTER รุ่นCENTER392เครื่องวัดระดับเสียงData Logger Sound Level Meter CENTER392
CENTER รุ่นCENTER392เครื่องวัดระดับเสียงData Logger Sound Level Meter CENTER392CENTER รุ่นCENTER392เครื่องวัดระดับเสียงData Logger Sound Level Meter CENTER392CENTER รุ่นCENTER392เครื่องวัดระดับเสียงData Logger Sound Level Meter CENTER392
รหัสสินค้า SKU-06898
หมวดหมู่ เครื่องมือวัดด้านสิ่งแวดล้อม(Environmental Measuring Instrument)
ราคาปกติ 200,000.00 บาท
ลดเหลือ 0.00 บาท
สถานะสินค้า Pre-Order
ลงสินค้า 31 พ.ค. 2564
อัพเดทล่าสุด 31 พ.ค. 2564
คงเหลือ 1 ชิ้น
จำนวน
ชิ้น
หยิบลงตะกร้า
หนังสือรับรองบริษัท
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay
Compliant with international standard IEC 61672-1 TYPE2. (Compliant with JIS C 1509-2)
128,000 records can be recorded. Includes software and USB cable.
With analog output function With AC / DC signal output terminal (with analog signal output plug)
AC / DC signals can be used for frequency analysis of sound in combination with an FFT analyzer, etc., or for recording noise levels in combination with a level recorder. It is available when you do.
Maximum / minimum display. There is an automatic mode for switching the measurement range. There is a
microphone extension cable (sold separately).
Specifications of Satotech Data Logger Sound Level Meter CENTER392 (Equivalent noise level measurement compatible / with analog output function)


Measurement range 30 --130dB
display Liquid crystal display
resolution Digital: 0.1dB
Bar graph 1 memory: 2 dB
Number of records 64,000 data
frequency 20 Hz to 8 KHz
Frequency weighting characteristics A characteristic / C characteristic
Time weight characteristic FAST / SLOW
Microphone 1/2 inch electric capacitor
accuracy ± 1.4 dB (94 dB, at 1 kHz calibration standard)
Measurement mode Instantaneous value display, maximum / minimum value display, equivalent noise level display
Equivalent noise level measurement * 1

Measurement with this device alone and measurement with software
Measurement time: 10 seconds / 1 minute / 5 minutes / 10 minutes / 15 minutes / 30 minutes / 1 hour / 8 hours / 24 hours

Attached software compatible OS Windows10 * 2
Power supply 4 AA alkaline batteries or dedicated AC adapter (sold separately)
Size 272 x 83 x 42 mm
Weight

About 390g

accessories Sato Shoji Co., Ltd. Original Japanese Instruction Manual
Windproof screen x 1 Storage case x 1 4 AA alkaline batteries
Analog output pin jack (pin jack conversion plug) * 3
USB cable x 1 Software x 1
Distributor Sato Shoji Co., Ltd. Japan Authorized Agent
Please feel free to contact us for repairs and defect inspections.

Since it is a measuring instrument (sound level meter) for self-management, it is not possible to enter numerical values in officially submitted documents.

Click here for sound level meters that can be numerically entered in officially submitted documents
