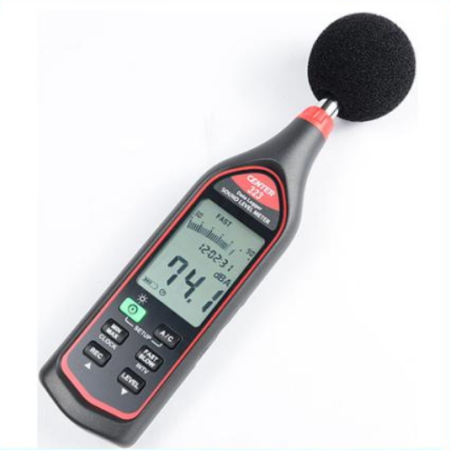

CENTER รุ่นCENTER324ครื่องวัดระดับเสียงData Logger Sound Level Meter CENTER324

CENTER รุ่นCENTER324ครื่องวัดระดับเสียงData Logger Sound Level Meter CENTER324
CENTER รุ่นCENTER324ครื่องวัดระดับเสียงData Logger Sound Level Meter CENTER324CENTER รุ่นCENTER324ครื่องวัดระดับเสียงData Logger Sound Level Meter CENTER324
รหัสสินค้า SKU-06895
หมวดหมู่ เครื่องมือวัดด้านสิ่งแวดล้อม(Environmental Measuring Instrument)
ราคาปกติ 15,000.00 บาท
ลดเหลือ 0.00 บาท
สถานะสินค้า Pre-Order
ลงสินค้า 31 พ.ค. 2564
อัพเดทล่าสุด 31 พ.ค. 2564
คงเหลือ 1 ชิ้น
จำนวน
ชิ้น
หยิบลงตะกร้า
หนังสือรับรองบริษัท
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay
Compliant with international standard IEC 61672-1 Class 2. (Compliant with JIS C 1509-2)
64,000 records can be recorded. Includes software and USB cable.
With analog output function. With AC / DC signal output terminal (with analog signal output plug)
AC / DC signal is used for frequency analysis of sound in combination with FFT analyzer, etc., and for recording noise level in combination with level recorder. Is possible.
Maximum / minimum display. There is an automatic mode for switching the measurement range. There is a
microphone extension cable (sold separately).
Specifications of Satotec Data Logger Sound Level Meter CENTER323 (with analog output)


Measurement range 30-130dB (4 range switching)
Lo 30-90 dB
Med 50 --1110 dB
HI 70 -130 dB
Auto 30 --130dB
resolution 0.1dB
Number of records 64,000 data
frequency 20Hz-8,000 Hz
Frequency correction circuit A or C characteristics
Microphone 1/2 inch electric condenser microphone
accuracy ± 1.4 dB (94 dB, at 1 kHz calibration standard)
Dynamic characteristics FAST or SLOW
display

・ Berkraf
・ MAX / MIN function
・ Dynamic characteristics
・ Level range
・ Clock

Attached software compatible OS Windows10 * 1
Power supply 4 AAA alkaline batteries or dedicated AC adapter (sold separately)
Size 264 x 63 x 29 mm
Weight

About 245g

accessories Sato Shoji Co., Ltd. Original Japanese Instruction Manual
Windproof screen x 1 Storage case x 1 AAA alkaline batteries 4 pieces
Analog output pin jack (pin jack conversion plug) * 2
Calibration driver USB cable x 1 Software x 1
Distributor Sato Shoji Co., Ltd. Japan Authorized Agent
Please feel free to contact us for repairs and defect inspections.

Since it is a measuring instrument (sound level meter) for self-management, it is not possible to enter numerical values in officially submitted documents.
