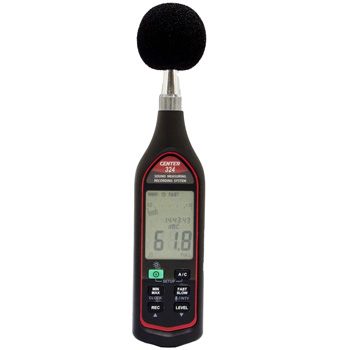

CENTER รุ่นCENTER324ครื่องวัดระดับเสียงData Logger Sound Level Meter CENTER324

CENTER รุ่นCENTER324ครื่องวัดระดับเสียงData Logger Sound Level Meter CENTER324
CENTER รุ่นCENTER324ครื่องวัดระดับเสียงData Logger Sound Level Meter CENTER324CENTER รุ่นCENTER324ครื่องวัดระดับเสียงData Logger Sound Level Meter CENTER324CENTER รุ่นCENTER324ครื่องวัดระดับเสียงData Logger Sound Level Meter CENTER324
รหัสสินค้า SKU-06893
หมวดหมู่ เครื่องมือวัดด้านสิ่งแวดล้อม(Environmental Measuring Instrument)
ราคาปกติ 20,000.00 บาท
ลดเหลือ 0.00 บาท
สถานะสินค้า Pre-Order
ลงสินค้า 31 พ.ค. 2564
อัพเดทล่าสุด 31 พ.ค. 2564
คงเหลือ 1 ชิ้น
จำนวน
ชิ้น
หยิบลงตะกร้า
หนังสือรับรองบริษัท
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay
Data logger with noise measurement and recording function
Sound level meter 324 Can record on-site sound. [It is possible to identify what the sound was]
International standard IEC 61672-1 Class2 compliant, ANSI S1.4 Type2 (JIS C 1509 compliant)
A characteristic / C characteristic. Supports FAST / SLOW.
With analog output function. (With analog signal output plug)
Maximum / minimum value display
Can be recorded on a microSDHC card at the same time. You can also play it.
128,000 data can be recorded. Includes software and USB cable.
Specifications of data logger sound level meter CENTER324 (with recording function)


Conformity standard IEC61672-1 Class 2, ANSI S1.4 Type2
Microphone 1/2 inch electric capacitor
Frequency band 20 Hz to 8 kHz
Measurement range 30 --130dB (4 range switching)
Lo 30-90 dB
Med 50-110 dB
HI 70 -130 dB
Auto 30 --130dB
Frequency weighting characteristics

・ A characteristic: Used for general noise measurement

・ C characteristic: Used for low frequency noise measurement

Time weight characteristic

・ FAST: Normal measurement mode

・ SLOW: Mode to measure the average level of noise amplitude

accuracy ± 1.0 dB (94 dB, at 1 kHz calibration standard)
Dynamic range 60 dB
Digital display 4 digits, display resolution 0.1 dB, display update every 0.5 seconds
Bar graph 30 steps, display resolution 2 dB, display update every 50 milliseconds
Measurement mode

Instantaneous value display and maximum / minimum value display

Built-in memory recording 128,000 data recording (recorded data not included)
Data logger recording interval From 1 second to 60 seconds (can be set every 1 second)
External memory microSDHC card (supports up to 32GB) *
Attached software compatible OS Windows10 * 1
Equivalent average sound pressure level There is a display function on the software
Measurement time 10 seconds / 1 minute / 5 minutes / 10 minutes / 15 minutes / 30 minutes / 1 hour / 8 hours / 24 hours / Manual setting
AC output 1 Vrms (output impedance about 100 Ω at full scale)
DC output 10 mV / dB (output impedance about 1 kΩ)
Power supply Power supply by AAA battery x 4 or USB connection
Battery life: Approximately 20 hours (when using alkaline batteries), Approximately 5 hours (when recording)
usage environment Temperature: (0-40) ° C, Humidity: (10-90)% RH (no condensation)
Storage environment Temperature: (0-60) ° C Humidity: (10-75)% RH (no condensation)
Size Height 270 x Width 63 x Thickness 29 mm
weight

Approximately 290g (including batteries)

accessories Sato Shoji Co., Ltd. Original Japanese Instruction Manual
Windproof screen, test battery (AAA battery x 4), microSDHC card
analog output pin jack (pin jack conversion plug) * 2
USB cable x 1, software CD-ROM, carrying Case
Distributor Sato Shoji Co., Ltd. Japan Authorized Agent
Please feel free to contact us for repairs and defect inspections.

Since it is a measuring instrument (sound level meter) for self-management, it is not possible to enter numerical values in officially submitted documents.

Click here for sound level meters that can be numerically entered in officially submitted documents
