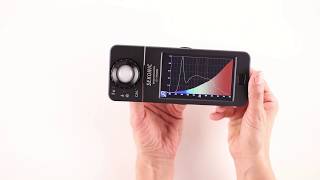

Sekonic รหัส C-7000 เครื่องวัดสเปกตรัมแสง,Spectroscopic color illuminometer,wavelength range:380～780nm
| รหัสสินค้า | SKU-06824 |
| หมวดหมู่ | เครื่องมือวัดด้านสิ่งแวดล้อม(Environmental Measuring Instrument) |
| ราคาปกติ | |
| ลดเหลือ | 0.00 บาท |
| สถานะสินค้า | Pre-Order |
| ลงสินค้า | 30 พ.ค. 2564 |
| อัพเดทล่าสุด | 28 ก.ค. 2568 |
| คงเหลือ | 1 ชิ้น |
| จำนวน | ชิ้น |
หยิบลงตะกร้า
รายละเอียดสินค้า
Spectral color illuminance meter suitable for industrial use
All light can be measured with this one unit regardless of the light source.
By adopting a CMOS linear image sensor, it is possible to accurately measure all light sources such as LEDs and fluorescent lamps.
Flash light measurement by spectroscopic method is possible.
● Measurement items and display modes suitable for industrial applications ●
Measurement value display / recording and graph display are possible with portable machines ●
Flash light measurement by spectroscopic method is possible by adopting a unique storage sensor
● Swing mechanism of light receiving part User-friendly product design such as capless dark correction
● Photosynthetic photon flux density PPFD can be confirmed in a plant factory
 |

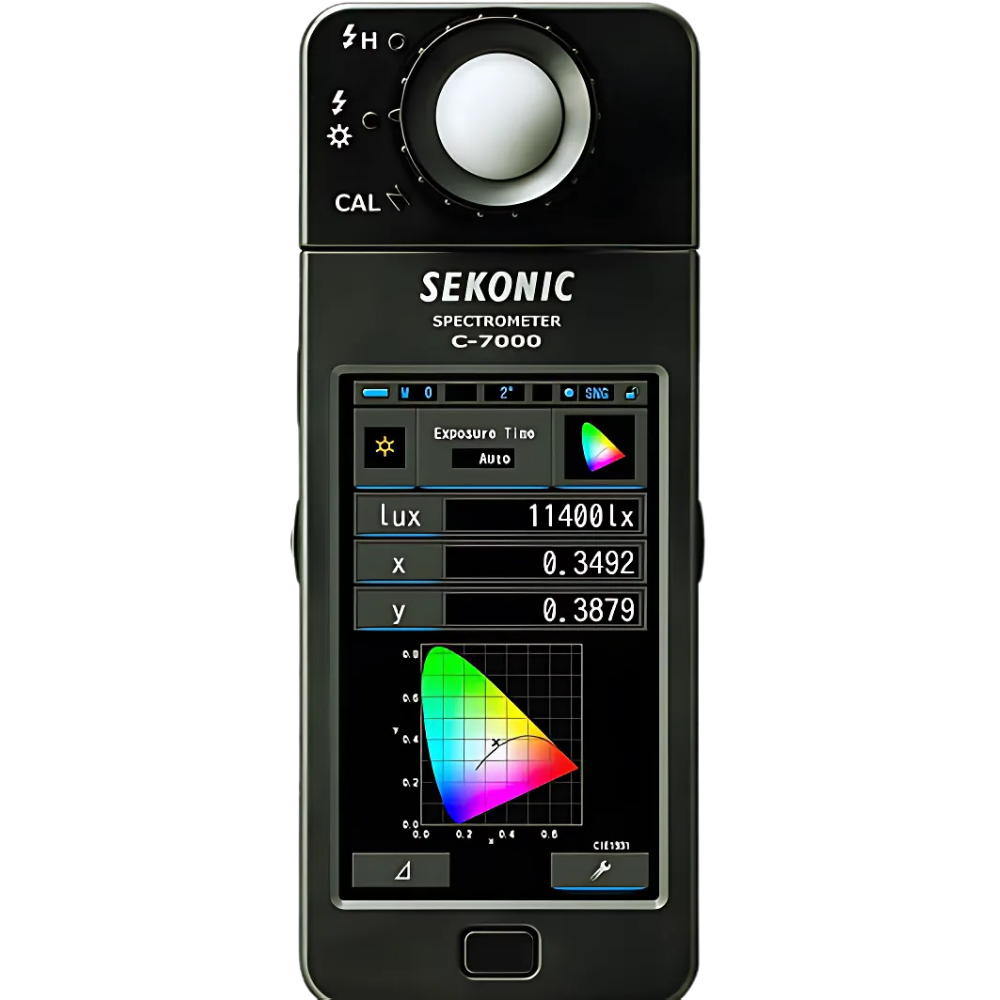

The C-7000 Spectrometer is a portable handheld spectrometer, designed especially for industrial use. Utilizing Sekonic’s CMOS linear image sensor design and large touch-screen color display, the C-7000 can measure and accurately describe LED, HMI, fluorescent, as well as natural light and electronic flash. The C-7000’s Utility software displays memorized data in several ways and outputs spectral data in 1nm/5nm (nanometer) increments in CSV format. The C-7000 is an important measuring tool for quality control in lamp manufacturing, medical facilities, educational / office safety and health standards, agricultural lighting / design and many more industrial uses.
Compatible with various light sources (LED, HMI, fluorescent light, tungsten light, natural light, flash light, etc.)
C-7000 uses a CMOS linear image sensor in the light receiving section. In order to determine accurate color temperature, we perform spectroscopic measurements in the wavelength range of 380nm to 780nm. It is possible to accurately measure not only conventionally used flash light, constant light illumination, tungsten light, and HMI, but also light sources such as LED and fluorescent lights, which have been increasing in number at shooting sites in recent years.
Unique optical design in the light receiving section
The spectrometer C-7000 also makes full use of optical technology in the light receiving section. We remove infrared rays that are harmful to measurements and adjust the angle of light. In addition to using a dedicated CMOS linear image sensor, a unique optical system minimizes measurement errors caused by obliquely incident light. In addition, it has a newly developed one-touch switchable thin dark correction unit and built-in ND filter, so you can measure capless dark correction and high-intensity flash by simply rotating the light receiving dial.

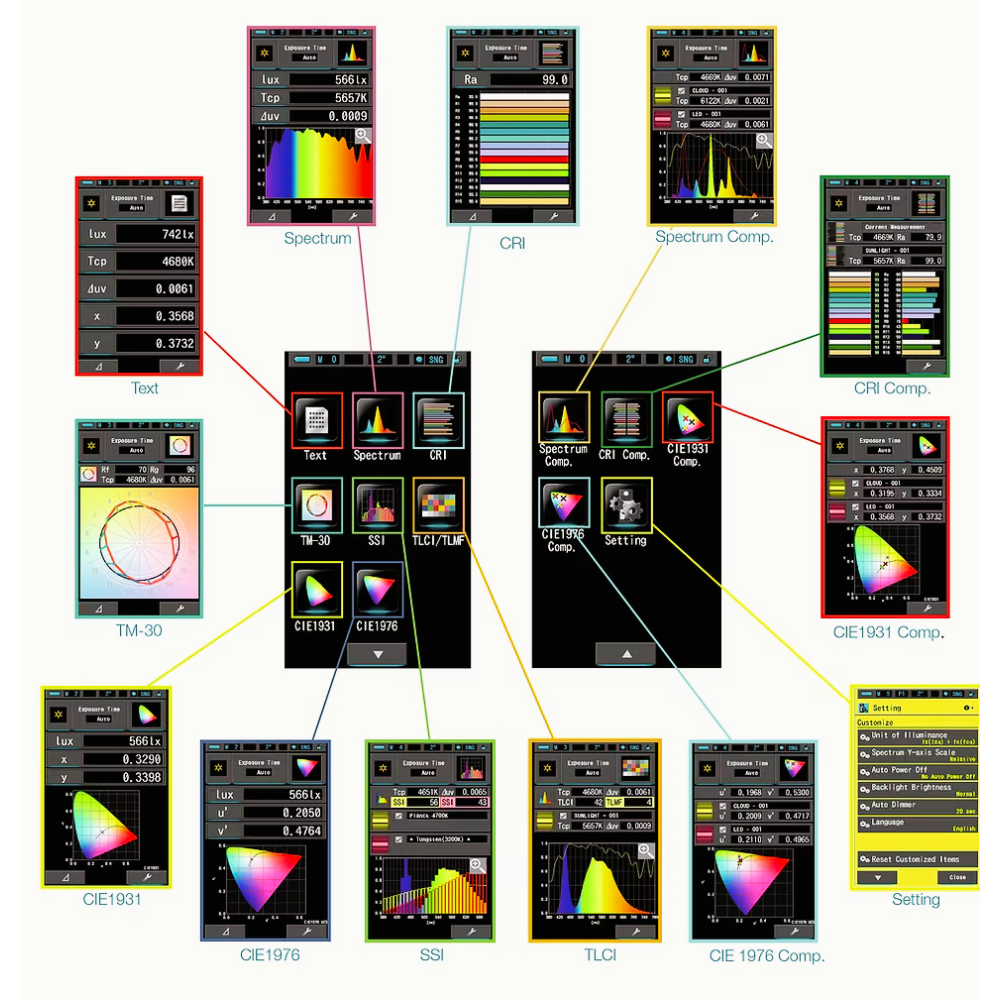

Various display modes
In addition to text mode that displays measured values in text, there are also spectrum mode, spectrum comparison mode, color rendering evaluation mode, etc.
Main screen. Display modes can be quickly changed by touching the icons on the main screen.
- text mode
- spectrum mode
- Spectral comparison mode
- Color rendering evaluation mode
- CIE1931
- CIE1931 comparison
- CIE1976
- CIE1976 comparison
text mode
spectrum mode
Spectral comparison mode
Color rendering evaluation mode
CIE1931
CIE193 comparison
CIE1976
CIE1976 comparison
Abundant measurement values and wide measurement range
The displayed values include color temperature (Kelvin), illuminance (Lux), color rendering index CRI (Ra, R1 to R15), deviation (⊿uv), ⊿xy...
In addition, it has a wide measurement range of illuminance of 1 to 200,000Lx and color temperature of 1,600 to 40,000K.
custom cushion
The custom function function allows settings to be made to suit the application and environment.

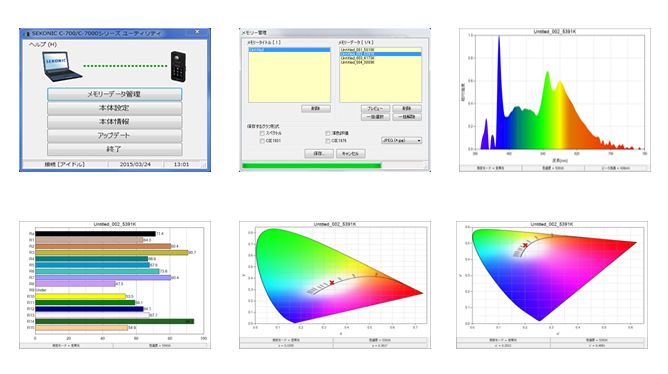

Dedicated utility software
By connecting the main unit to a PC via USB and using the dedicated utility software, you can do the following.
- Check aircraft information
- Main unit settings (toolbox, custom function change, preset data editing, hardware settings, initialization)
- Recalling and saving memory data (text data, images)
- Graph display (Jpeg, BMP, PNG)
- Main unit firmware update
- Compatible with Windows
Part names
| format | Spectroscopic color illuminometer with built-in CMOS linear image sensor | ||
|---|---|---|---|
| Illuminometer class | JIS C 1609-1: 2006 Compliant with general class A illuminometer Compliant with DIN 5032 Part 7 class C |
||
| Light receiving method | Incident light type | ||
| Light receiving section | White diffuser (fixed) | ||
| Light receiving element | CMOS linear image sensor 128 pixels | ||
| Measurement method | Measurement mode | Constant light | Constant light mode |
| Flash light | Measurement using a synchro code (code-in) Measurement without a synchro code (cordless) |
||
| Display mode | Text mode, spectrum mode, spectrum comparison mode, color rendering evaluation mode, CIE1931 (CIE1964) mode, CIE1931 (CIE1964) comparison mode, CIE1976 mode, CIE1976 comparison mode | ||
| Measurement item | Tcp (correlated color temperature), ⊿uv (deviation), X, Y, Z / X10, Y10, Z10 (tristimulus value), x, y, z / x10, y10, z10 (CIE1931 / 1964 color rendering index ) u ', v'/ u'10, v'10 (CIE1976UCS color rendering index) λd / λd, 10 (main wavelength) Pe / Pe, 10 (stimulation purity) λp (peak wavelength) Lux, fc / Hlx, Hfc (illuminance) / Exposure) Ra (Average color rendering index) R1 to R15 (Special color rendering index) PPFD (Photosynthesis effective photon flux density) |
||
| Measurement time | Constant light | Minimum: 0.5 seconds-Maximum: 15 seconds | |
| Flash light | 1/500 seconds to 1 second (1 step) | ||
| Measurement range | Measurement wavelength range | 380nm-780nm | |
| Measurement wavelength interval | 1nm (Data can be output in CSV format when using the attached application C-7000 utility) |
||
| Spectral wavelength width | Half width about 11nm | ||
| Brightness when measuring color temperature | Constant light 5lx-200,000lx | ||
| Illuminance | Constant light 1lx ～ 200,000lx 1,563 ～ 100,000K | ||
| Exposure | Flash light range L: 20lx ・ s ～ 640lx ・ s range H: 580lx ～ 20,500lx ・ s 2,500k ～ 100,000k |
||
| Photosynthesis effective photon flux density | 0.0 to 9999.9 μmol m -2 s -1 | ||
| Accuracy * 1, * 2 | Illuminance | ± 5% ± 1 digit of indicated value * 3 (Compliant with JIS C1609-1: 2006 general class A illuminance meter) |
|
| xy | ± 0.003 (A light source, 800lx) | ||
| Repeatability (2σ) | Illuminance | 1% + 1digit (A light source, 30lx to 200,000lx) 5% + 1digit (A light source, 1lx to 29.9lx) |
|
| xy | 0.001 (A light source, 500 lx to 200,000 lx) * 1 * 4 0.002 (A light source, 100 lx to 499 lx) * 1 * 4 0.004 (A light source, 30 lx to 99 lx) * 1 * 4 0.008 (A light source, 5 lx to 29.9) lx) * 1 * 4 |
||
| Visible region relative spectral response characteristics | f1' | 9% or less (JIS C1609-1: 2006 general type A class illuminance meter compliant) * 1 | |
| Oblique incident light characteristics | f2 | 6% or less (JIS C1609-1: 2006 general type A class illuminance meter compliant) * 1 | |
| Temperature characteristics | Illuminance | ± 5% of the indicated value (JIS C1609-1: 2006 general type A class illuminance meter compliant) * 1 | |
| xy | |||
| Humidity characteristics | Illuminance | ± 3% of the indicated value (JIS C1609-1: 2006 general type A class illuminance meter compliant) * 1 | |
| xy | ± 0.006 (A light source, 1000lx) * 1 | ||
| Display range | Color temperature | 1,563k-100,000 (5lx-200,000lx) | |
| Illuminance | Constant light 1lx-200,000lx (upper 3 digits valid) | ||
| Exposure | Flash light 20lx ・ s ～ 20,500lx ・ s, 1.86fc ・ s ～ 1,900fc ・ s (upper 3 digits valid) | ||
| Shutter speed | Flash light 1/500 to 1 second | ||
| Other features | Preset setting function | Presets №1-5 | |
| Body settings | 5 items can be set | ||
| Memory function | Possible up to 999 times | ||
| memory | Clear recall function | ||
| Outside the measurement range and outside the display range | [Under] Under, [Over] Over warning display | ||
| Battery level display function | 4-step display | ||
| Automatic power off function | Selectable from about 20 minutes, about 10 minutes, about 5 minutes, and none after the final operation | ||
| LCD backlight (EL) | Brightness can be selected from bright, normal, and dark. The dimming time can be selected from about 20 seconds, 40 seconds, 60 seconds after the final operation, and no dimming. |
||
| Touch panel lock function | |||
| With screw holes for tripod | 1 / 4in, 20 mountains | ||
| Liquid crystal used | LCD display pixel count 4.3 inch QVGA 480 x 800 dots | ||
| Recommended battery | AA battery 1.5V x 2 Alkaline, manganese | ||
| Bus power 5V / 500mA or less by USB connection (supplied from USB cable when connecting to a computer) |
|||
| Display language | Japanese | ||
| Interface | USB 2.0 * A separate USB cable is required for use. (USB-A connector-USB mini B connector) |
||
| Surrounding conditions | temperature | -10-40 ℃ | |
| Humidity | 85% RH or less (at 35 ° C) / However, no condensation | ||
| Transportation storage conditions | temperature | -10 ℃ ～ 60 ℃ | |
| Humidity | 85% or less (at 35 ° C) / However, no condensation | ||
| Size | Approximately 73 (width) x 183 (height) x 27 (thickness) mm (excluding light receiving part) Maximum thickness 40 mm | ||
| mass | 230g (without batteries) | ||
| Standard accessories |
|
||
