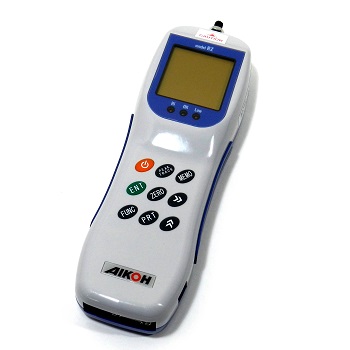

Aikoh รุ่น RZE-1 เครื่องวัดแรงดึงแรงกดแบบดิจิตอล,Digital Push Pull Gauge(10Newton)

RZ-1

Rated capacity

10N
(1Kgf)

Min. display unit

0.001N
(0.1gf)

Accuracy

±0.2％F.S.

Sampling cycle

1 ms, 5 ms, 16 ms, 50 ms, 125 ms and 250 ms selectable

Display update interval

1, 2, 5, 10, 20 times/sec. selectable

Display

LCD, signed, 5 digits

Output

USB output
Analog voltage ±2V / F.S.
Printer output
Motorized stand control
External connection hold

Mass

Approx. 375g

Power supply

Nickel-metal hydride battery, AC adapter Model 780(100VAC – 240VAC)

Standard accessories

011B

  012B

013B

014B

015B

016B

※Hook of 011B for RZ-100  is different from standard hook,the wire diameter is Φ４

Options

Output cable, software RZ-3000, test stand, printer BL2-58SNWJC

Optional cables

I/O cable RZ-OP-1, I/O cable RZ-OP-2,
Mitutoyo DP-1VR printer cable RZ-OP-3,
Sanei Electric line thermal printer cable RZ-OP-4
RZ-OP-1 : For Stand control function only
RZ-OP-2 : For Stand control function, Analog output and Comparator output
