รหัสสินค้า | SKU-06671 |
หมวดหมู่ | เครื่องวัดตรวจจับก๊าซออกซิเจนOxygen(O2) |
ราคาปกติ | |
ลดเหลือ | 0.00 บาท |
สถานะสินค้า | Pre-Order |
สภาพ | สินค้าใหม่ |
ลงสินค้า | 16 เม.ย. 2564 |
อัพเดทล่าสุด | 16 เม.ย. 2564 |
คงเหลือ | 1 ชิ้น |
จำนวน | ชิ้น |
SPECIFICATIONS
Manufacturer | Lutron |
---|---|

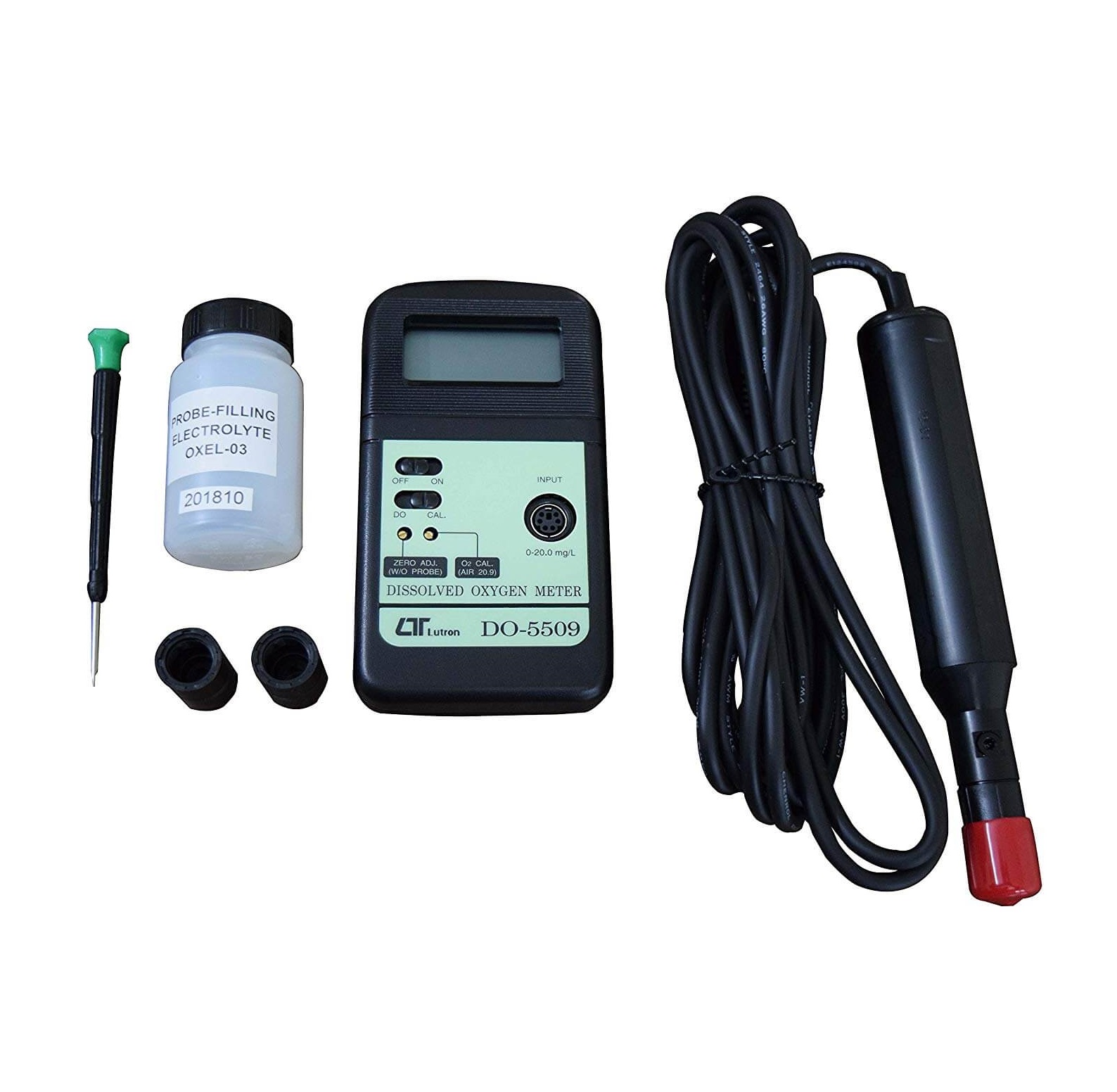

Model No | DO 5509 |
Measuring Parameters | Dissolved Oxygen |
Dissolved oxygen | 0 to 20.0 mg/L |
Resolution_1 | 0.1 mg/L |
Accuracy_1 | ± 0.4 mg/L. (after calibration within 23± 5 ℃) |
Display | 13 mm ( 0.5" ) LCD, 3 1/2 digits. |
Operating Temperature | 0℃ to 50℃ |
Operating Humidity | Less than 80% RH |
Memory Recall | Records Maximum, Minimum and Average readings with RECALL |
Circuit | Custom one-chip of microprocessor LSI circuit. |
Power Consumption | Approx. DC 3.5 mA. |
Battery | 006P DC 9V battery ( heavy duty ). |
Accessories | Carrying case, Operation manual |
Weight | 350 g ( 0.77 LB ) - with probe & battery. |
Dimensions | Main Instruments:131 x 70 x 25 mm ( 5.2 x 2.8 x 1.0 inch ),Oxygen probe :190 mm x 28 mm Dia. ( 7.5" x 1.1" Dia.) |
