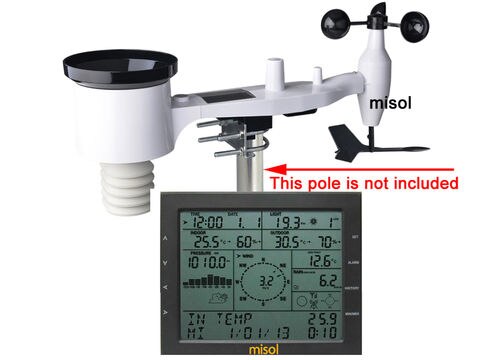

MISOL รุ่น WS2310CA เครื่องตรวจวัดและบันทึกการเปลี่ยนแปลงสภาพอากาศของลมฝนและความชื้น /WIND SPEED WIND DIRECTION RAIN METER PRESSURE TEMPERATURE HUMIDITY UV / WITH SOLAR CHARGE

Functions:

 1) Free PC software to view the weather data, after PC connecting to the receiver(display).

 (remark: software language: Chinese, Czech, Danish, Deutsch, English, French, Hungarian, Polish, Svenska, Spanish)

2)  USB port for easy connection to your PC to view the weather data.

3.) History Record interval is: 1-240minutes(adjustable). The receiver can log 3552 records in total.

4) Time and date, Sunrise and Sunset time, Moon phase.

5) Indoor/outdoor temperature and humidity & Wind chill & wind direction & Rainfall & Pressure measure,

6) Display rain rate, rainfall data in 24 hours, one week, one month, one year, total rain and rainfall event.

7) Wind speed in mph, km/h, m/s, knots or Beaufort.

8) The direction of the wind with 360 degree.

9) Wind chill, dew point and heat index temperature display.

10) Barometric, weather forecast.

11) MAX, MIN with a time stamp.

12) High alarm and low alarm.

13) Light and UV index.

14) Save the data when batteries is changed

15) High light LED backlight

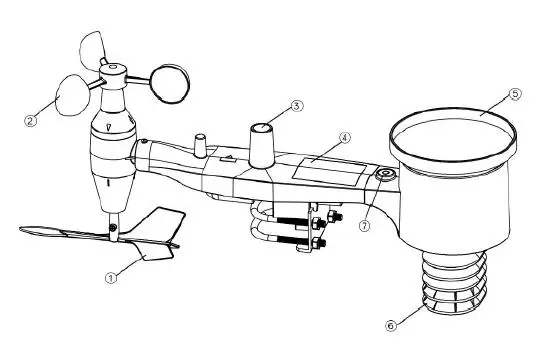

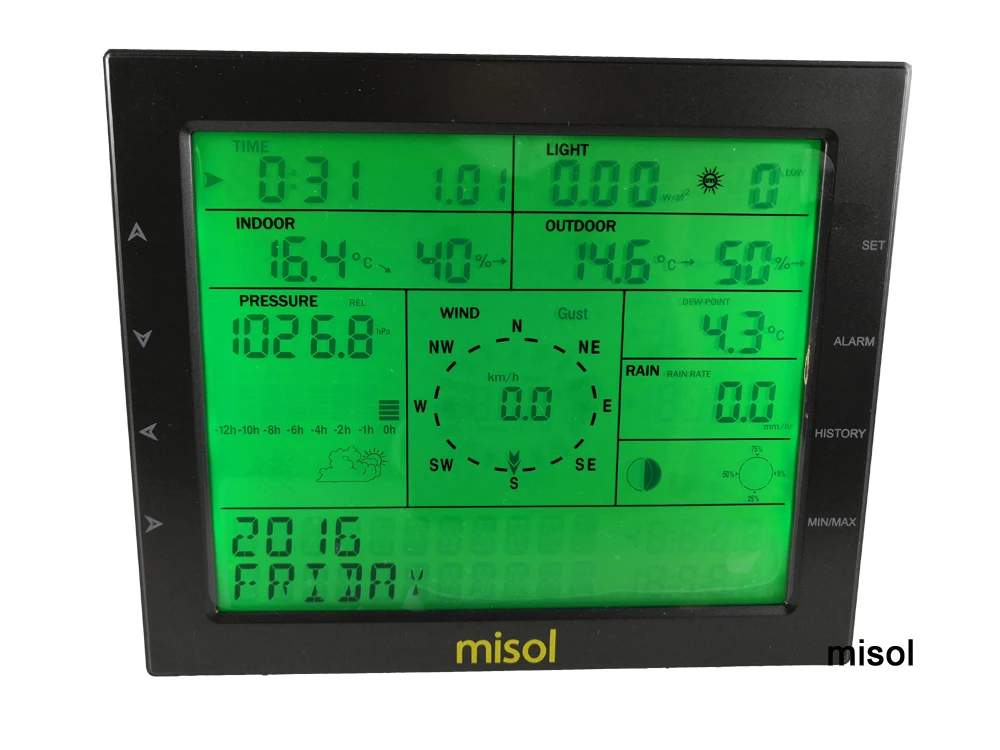

Display information

1. Wind Vane

2. Wind Speed Sensor

3. UV sensor/Light sensor

4. Solar panel

5. Rain collector

6. Thermo-hygro sensor

7. Bubble level

8. U-Bolt

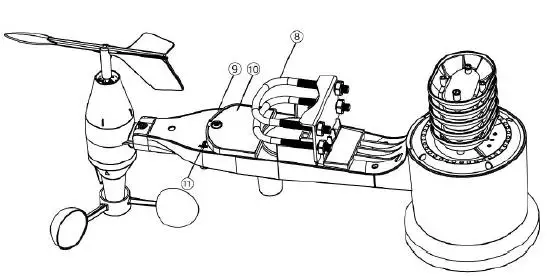

9.LED Indicator

10. Battery door

11. Reset button

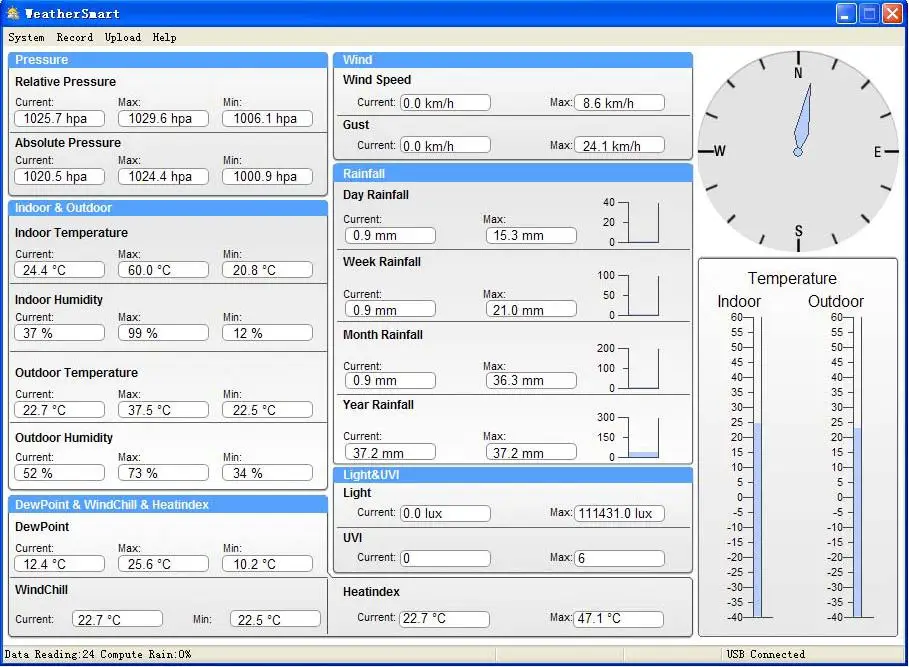

PC Software:

History (in software):

Specification:    Outdoor data

Transmission distance: Max. 100meter (330 feet)

(tested in open field, no obstacle in between, no interference in between)

RF Frequency: 433 MHz

Temperature range: -40～+60°C

Accuracy : +/- 1˚C, Resolution:0.1˚C

Humidity range:10%～99%

Accuracy : +/- 5%, Resolution: 1%

Rain volume: 0 - 9999 mm

Resolution:0.3mm (if rain volume < 1000mm), 1mm (if rain volume > =1000mm)

Accuracy : +/- 10%

Wind speed: 0-50m/s (0~100mph)

Accuracy: +/- 1m/s (wind speed< 5m/s), +/-10% (wind speed >=5m/s)

Wind direction: 0 to 359 degree

Light: 0-200k Lux

Accuracy : +/-15%

UVI: 0-15

The measuring interval for outdoor sensor: 16 sec

Indoor data

Indoor temperature range:   0˚C--50˚C

Resolution :   0.1˚C

Accuracy :    +/-1˚C

Humidity:     10%～99%

Resolution:   1%

Accuracy : +/- 5%

air pressure range:    300-1100hPa (8.85 -32.5inHg)

Accuracy        :    +/-3hpa

Resolution       :    0.1hPa (0.01inHg)

Measuring interval (indoor sensor): 48 sec

Alarm Duration: 120 seconds
