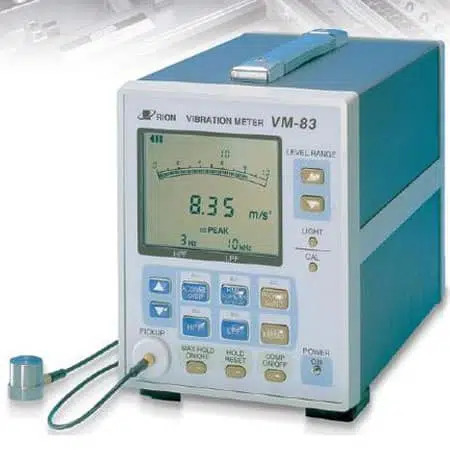

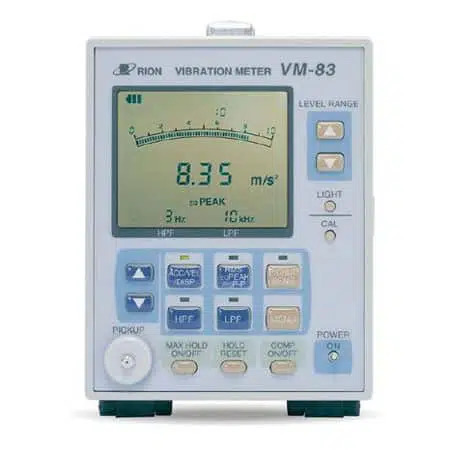

Rion รุ่น VM-83 เครื่องวัดความสั่นสะเทือนสำหรับงานทั่วไป,General-purpose vibration meter

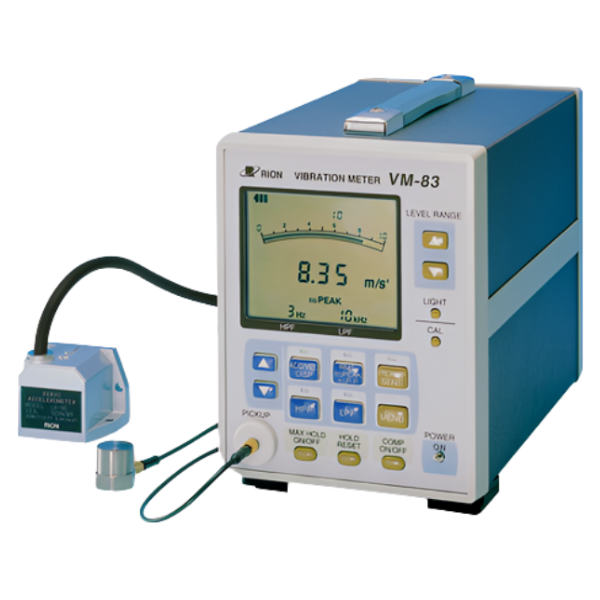

The VM-83 is a general-purpose vibration meter designed for measurement and evaluation of vibrations, using a piezoelectric accelerometer or a servo accelerometer. It provides four types of input connectors and allows selection of acceleration, velocity, and displacement measurement. With the optional servo accelerometer, even very low frequency vibrations in the range of 0.1 to 1 Hz can be measured, something that is very hard to achieve with conventional piezoelectric accelerometers.

• Display characteristics can be switched to true RMS, equivalent peak, and equivalent peak-to-peak. A comparator with level evaluation output is available. AC output, DC output, and a serial interface are provided as standard equipment. The unit has a box type enclosure and can be powered from batteries or an AC adapter.
• All vibration measurements acceleration, velocity and displacement.
• For Piezoelectric and Servo accelerometers
• DSP operation Max and Peak hold
• Battery operation 20h.
• Signal output
• High-pass and Low-pass filters

• Connectivity for various kinds of accelerometers enables a wide range of vibration measurements
• Comparator function with level evaluation output
• Versatile display characteristics including rms, equivalent peak, equivalent peak-to-peak, maximum value hold and peak hold
• AC and DC output connectors
• Serial interface for enhanced connectivity
• Data printout capability via serial interface
• Wide Frequency range
• Large Easy to read display
• Data store capability – Upto 1000 data points

Input Section	Pickup input: For piezoelectric accelerometer, Maximum input charge 30000 pC Preamplifier input 1: For connection of piezoelectric accelerometers via preamplifier VP-26A Preamplifier input 2: For connection of piezoelectric accelerometers with integrated preamplifier(ICP) 18 V, 2mA Servo pickup input: For connection of servo accelerometer LS-10C
Measurement Range Piezoelectric	Acceleration: 0.3, 1, 3, 10, 30, 100, 300, 1000 m/s2 Velocity: 3, 10, 30, 100, 300, 1000 mm/s Displacement: 1, 3, 10, 30, 100, 300, 1000 mm(HPF 1 Hz)
Calibration	Pickup sensitivity: 0.030-0.999 pC/(m/s2), 1.00-9.99 pC/(m/s2), 10.0-99.9 pC/(m/s2)
Interface	Calibration output: Signal for external equipment calibration
Display Characteristics	true RMS, EQ PEAK, EQ P-P
Output	AC/DC output: Range full-scale 2V
Power Requirement	DC: Four IEC R14 (size "D") batteries Battery life: 20 h AC: AC adapter UP01811065A (Option)
Dimensions and Weight	171 (W) X 120 (H) X 234 (D) mm Approx. 1.8 kg (incl. batteries)
