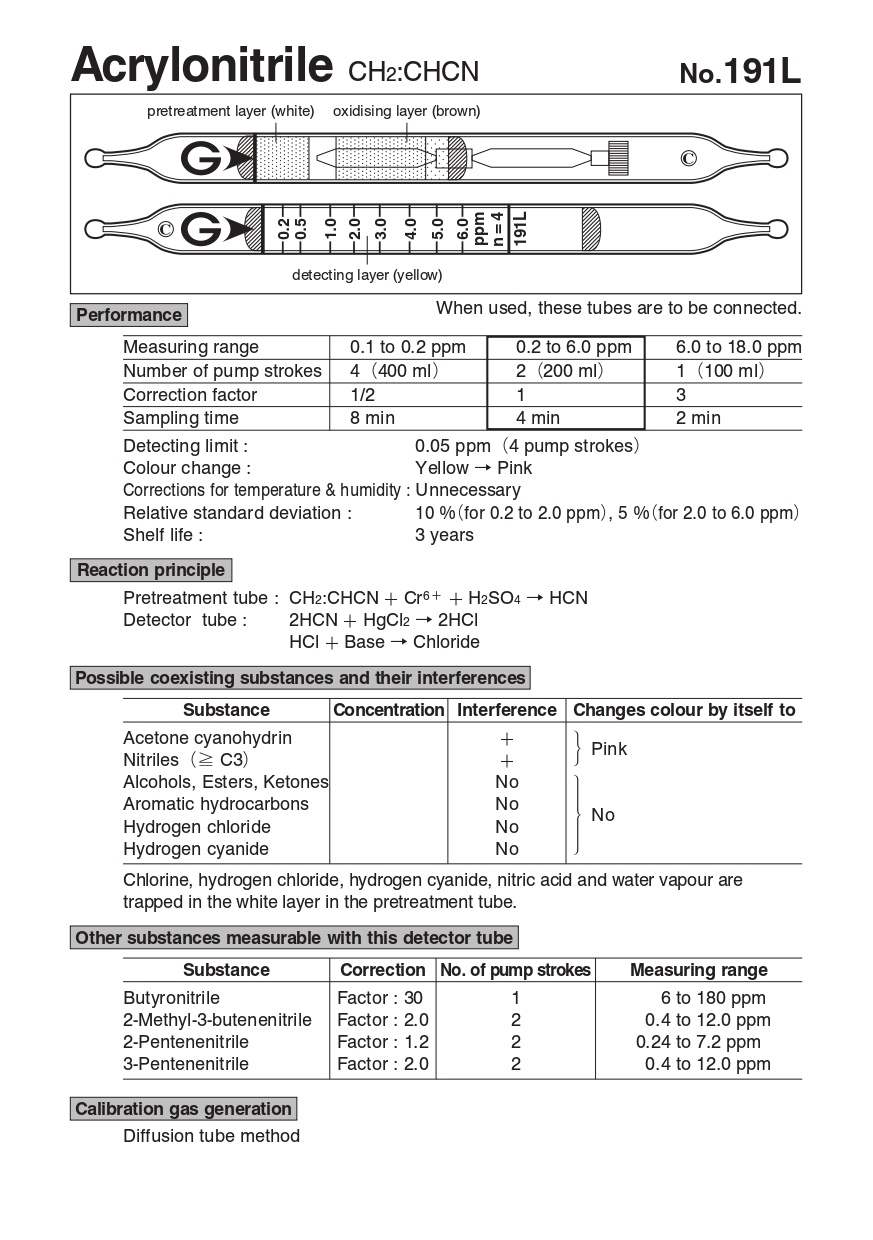

Gastec รหัสสินค้า No.191L หลอดวัดความเข้มข้นของแก๊ส,Detector Tube for Acrylonitrile,Meas.range:0.1～18ppm,(10pcs/Box)

Acrylonitrile Detection Tubes (0.1 to 18 ppm)This detector tube measures Acrylonitrile within 0.1 to 18.0 ppm.

• Measuring Range:
  • 0.1 to 0.2 ppm - 4 pump strokes - Correction Factor: 1/2
  • 0.2 to 6.0 ppm - 2 pump strokes - Correction Factor: 1
  • 6.0 to 18.0 ppm - 1 pump stroke - Correction Factor: 3
• Sampling Time: 2 minutes per pump stroke
• Detecting limit: 0.05 ppm (4 pump strokes)
• Changes from Yellow to Pink
• Corrections for temperature & humidity: Unnecessary
• Relative Standard Deviation: 10 %（for 0.2 to 2.0 ppm）, 5 %（for 2.0 to 6.0 ppm)
• 3 Year Shelf Life
• Reaction Principle:
• • CH2:CHCN + Cr6+ + H2SO4 → HCN
  • 2HCN + HgCl2 → 2HCl
  • HCl + Base → Chloride
• Store the tubes at a cool and dark place

• On-site measurements can be performed easily by anybody, anytime and anywhere, in a short time
• Easy-to-check direct reading possible due to calibrated scale directly printed on the tube
• An extensive measuring range can be obtained by adjusting the sampling volume
• In order to assure high precision, each production lot is tested and calibrated independently, Each detector tube has its own quality control number printed on the tube
• Long shelf-life with excellent long-term stability
