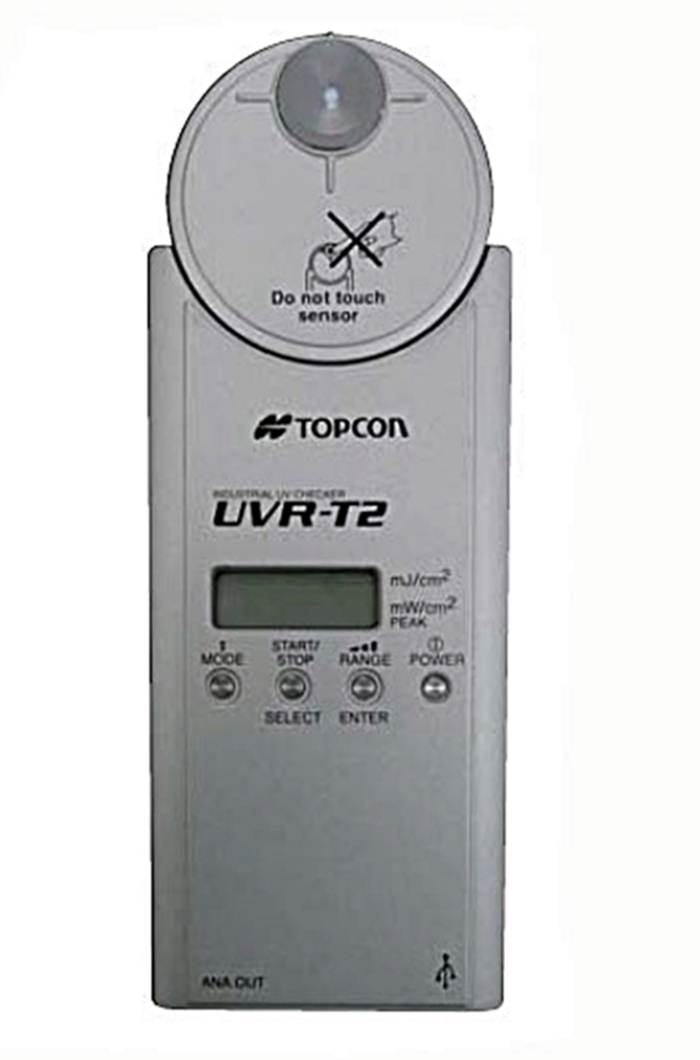

Topcon รุ่นUD-T40T2เซนเซอร์สำหรับเครื่องวัดแสงยูวีLight Receiving Detector Part,Meas.range350～490nm.

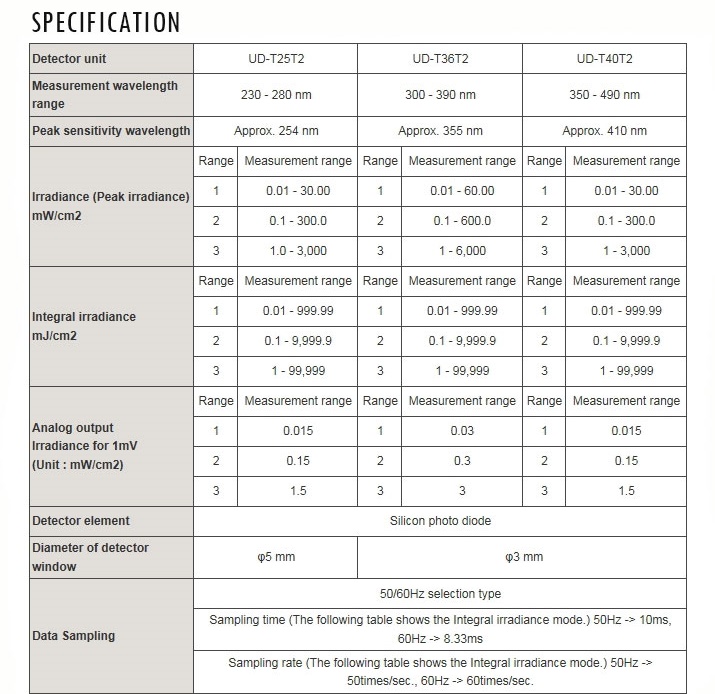

Specification items

Specification value

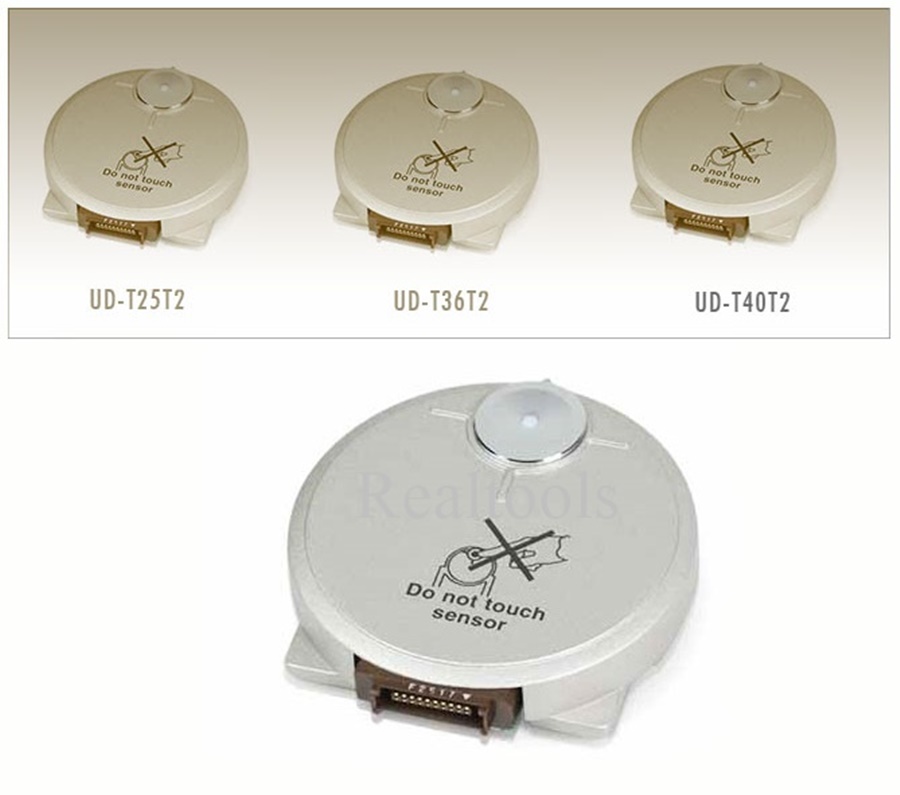

UD-T25T2

UD-T36T2

UD-T40T2

Light receiving element

Silicon photodiode

Light receiving window diameter

φ5mm

φ3mm

φ3mm

Measurement wavelength range

230-280nm

300-390nm

350-490nm

Peak sensitivity wavelength

About 255nm

About 355nm

About 410nm

Illuminance measurement range
(mW / cm2)

Range-1: 0.01 to 30.0
Range-2: 0.1 to 300.0
Range-3: 1.0 to 3000.0

Range-1: 0.01 to 60.0
Range-2: 0.1 to 600.0
Range-3: 1.0 to 6000.0

Range-1: 0.01 to 30.0
Range-2: 0.1 to 300.0
Range-3: 1.0 to 3000.0

Integrated light intensity measurement range
(mJ / cm2)

Range-1: 0.01-999.99
Range-2:
0.1-9999.9 Range-3: 1.0-99999.0

Range-1: 0.01-999.99
Range-2:
0.1-9999.9 Range-3: 1.0-99999.0

Range-1: 0.01-999.99
Range-2:
0.1-9999.9 Range-3: 1.0-99999.0

Irradiance with analog output of 1 mV
(mW / cm2)

Range-1: 0.015
Range-2: 0.15
Range-3: 1.5

Range-1: 0.03
Range-2: 0.3
Range-3: 3.0

Range-1: 0.015
Range-2: 0.15
Range-3: 1.5

Data sampling

ت Sampling time 50Hz: 10ms, 60Hz: 8.33ms ت
Sampling rate 50Hz: 50 times / second 60Hz: 60 times / second

Oblique incident light characteristics

30 °: within ± 5%, 60 °: within ± 25%

Calibration accuracy * 1

Within ± 2%

Linearity * 2

Within ± 3%

Analog signal output

0-2V max. Common to all ranges

interface

USB2.0 (USB A Connector-USB Micro B Connector)

Power supply

AAA batteries x 3 (commercially available) / USB bus power

terms of use

Temperature: 10-60 ° C / Humidity: 85% RH or less (no condensation)

External dimensions (W x D x H) * 3

75 x 201 x 16 mm

Mass * 3 * 4

320g
