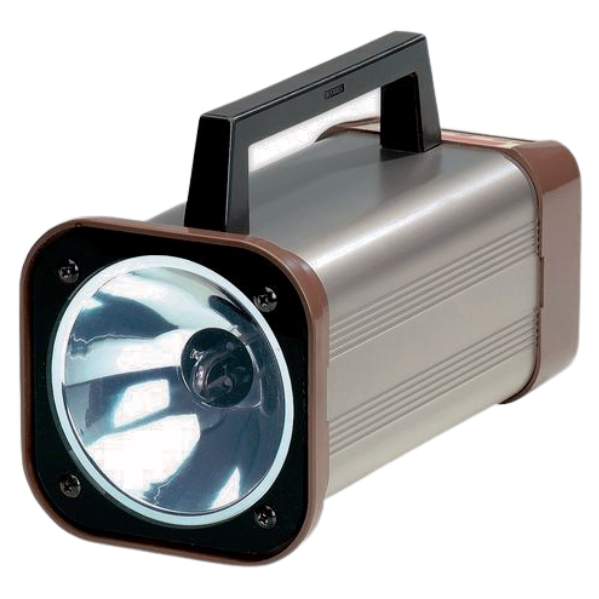

NidecSHIMPO รุ่นDT-315Nเครื่องวัดความเร็วรอบแบบดิจิตอล,Digital Strobe Scope Flashing range:40.0~35,000rpm

NidecSHIMPO รุ่นDT-315Nเครื่องวัดความเร็วรอบแบบดิจิตอล,Digital Strobe Scope Flashing range:40.0~35,000rpm
รหัสสินค้า SKU-00495
หมวดหมู่ •เครื่องวัดความเร็วรอบแบบStroboscope
ราคาปกติ 87,000.00 บาท
ลดเหลือ 0.00 บาท
สถานะสินค้า Pre-Order
ลงสินค้า 23 ต.ค. 2561
อัพเดทล่าสุด 2 ธ.ค. 2566
คงเหลือ 1 ชิ้น
จำนวน
ชิ้น
หยิบลงตะกร้า
หนังสือรับรองบริษัท
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay
A wide measuring range
The high-accuracy flashing enables measurement covering a wide range between 40.0-35,000 rpm.
Provided with a phase adjustment function
It is possible to move an image while maintaining synchronization.
The standard feature of an external signal connector is provided for synchronization and delayed flash using external signals.
Provided with a memory function
The flashing frequency is memorized at the time of turning off the power and recalled when the power is turned on next time.
Model DT-315N
Emission times (rpm) 40.0 to 35000 0 to 35000 for external synchronization mode
Internal oscillation
mode
Display decomposition function 0.1: 40.0 to 5000
0.2: to 8000
0.5: to 10000
1: to 35000
jump function Yes (pressing the dedicated switch halves or doubles the number of flashes)
integer function Yes (display decimals, do not set)
memory function Yes (Memorizes the number of flashes when the power is turned off, and fires at that number of times the next time the power is turned on.)
External synchronization
mode
input signal Voltage input H level: 2.5V to 12V
L level: 0.8V MAX
pulse width 50μs or more
Input impedance 10kΩ or more
Speed measurement function 40.0 to 35000 rpm (disabled during delayed light emission)
Delayed emission In the range of 40.0 to 10000rpm, the
delay angle can be set in increments of 0 to 359° 1°, or the
delay time can be set in increments of 0 to 2000ms 1ms.
display 5-digit red LED 7-segment
Synchronous output signal 12V voltage signal pulse width about 400μs
Setting device Multi-rotation encoder, tact switch
flash of light xenon lamp
lamp input 10W
power supply Rechargeable (dedicated nickel-cadmium battery)
continuous light emission for about 1 hour or
included AC adapter g (2 hours quick charge)
AC 100 V ± 10%
Emission timer Lights up continuously or stops emitting after a set time of 1 to 120 minutes
Power output for sensor DC12V 40mA
Power cord
Operating temperature 0 to 40°C
mass 2.1kg
accessories Dedicated adapter
