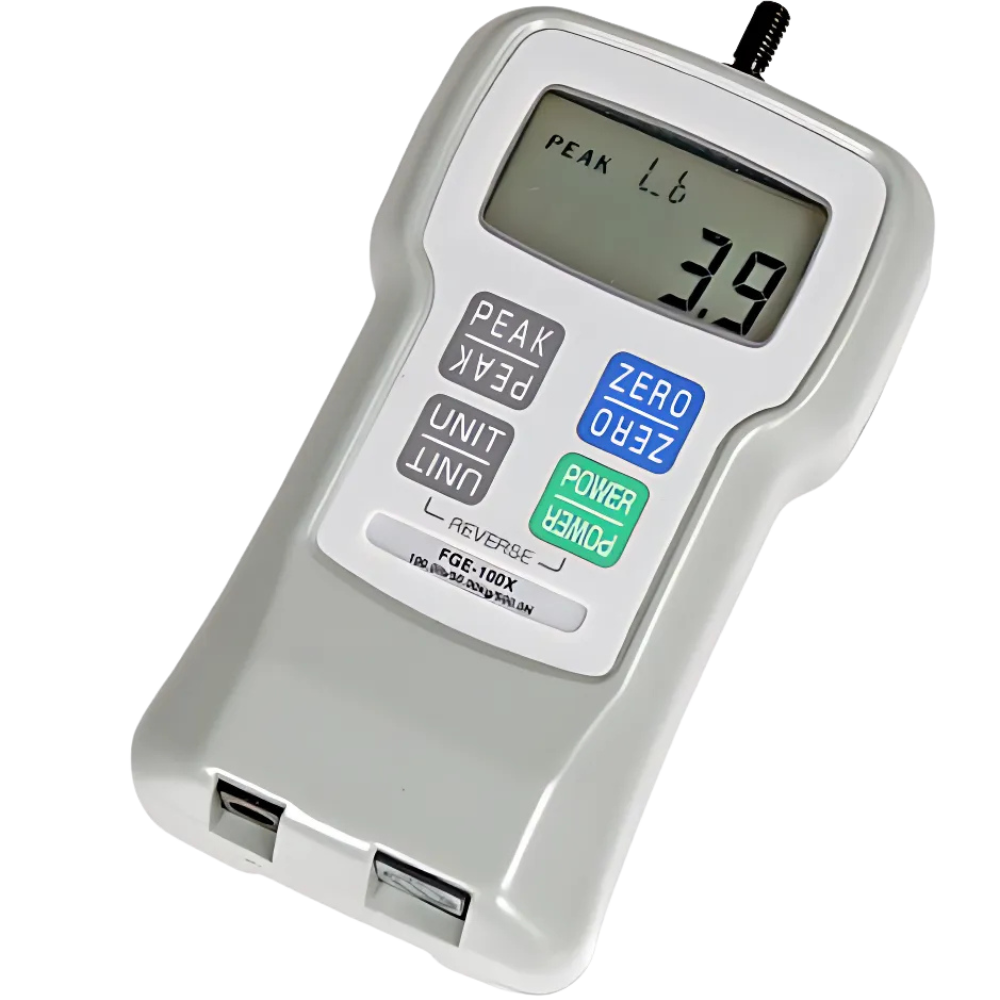

Nidec Shimpo รุ่น FGE-1XY เครื่องวัดแรงดึงแรงกดแบบดิจิตัล,Capacity Digital Force Gauge, Capacity:1lb(500g) Unit:oz,g,kg,N and lb

Digital Force Gauges with 180° reversible display & dual labeled keypad for both push, pull applications. The Series FGE-XY Digital Force Gauges combine a rugged, ergonomic and compact design with exceptional accuracy to provide a solid force testing instrument. These instruments are utilized in a variety of applications such as, incoming quality inspection, finished goods testing, R&D or almost any portable or force stand testing requirement.

Simple one button adjustment changes units of measure, while pressing the peak button quickly produces the highest recorded value during the test. The 180° reversible display combined with the adjustable force direction and dual labeled keypad enable the FGE-XY to excel in both compression and tension applications in any direction. Models are available from 0.5 lbs to 100 lb ranges providing a large offering for various testing requirements.

Typical applications include wallboard, wire pull, wire crimps, trigger pull, brake pedal, aerospace ceramic, springs, food ripeness, corrugated paper strength, blister pack, medical component, muscle strength, ergonomic testing, adhesives, syringe plunger, needle sharpness and many more.

• Ideal for strict tolerances with its high accuracy ±0.2% F.S.
• Measure and record compression and tension tests, permits true "push-pull" testing
• Simple one button adjustment changes units of measure, while pressing the peak button quickly produces the high-est recorded value during the test
• 180° reversible display and dual printed keypad allows usage as a portable gauge or mounted upside down on a test stand
• Variable display response rate aids viewing readings
• 1 million operation load cell with superior overload protection provides a long-life, damage free product
• Rugged, ergonomic die cast aluminum construction allows usage on production floor
• Dual power capable with rechargeable battery or AC line voltage


Model	FGE-0.5XY	FGE-1XY	FGE-2XY	FGE-5XY	FGE-10XY	FGE-20XY	FGE-50XY	FGE-100XY	FGE-200XY	FGE-200XY
Capacity X Readability	0.5 x 0.001 lb	1 x 0.001 lb	2 x 0.001 lb	5 x 0.001 lb	10 x 0.01 lb	20 x 0.01 lb	50 x 0.01 lb	100 x 0.1 lb	200 x 0.1 lb	500 x 0.1 lb
	200 x 0.1 g	500 x 0.1 g	1000 x 1 g	2 x 0.001 Kg	5 x 0.001 Kg	10 x 0.01 Kg	20 x 0.01 Kg	50 x 0.01 Kg	100 x 0.1 Kg	250 x 0.1 Kg
	2 x 0.001 N	5 x 0.001 N	10 x 0.01 N	20 x 0.01 N	50 x 0.01 N	100 x 0.1 N	200 x 0.1 N	500 x 0.1 N	1000 x 1 N	2500 x 1 N
	8 x 0.01 oz	16 x 0.01 oz	32 x 0.01 oz	-	-	-	-	-	-	-
Thread	M4	M4	M6	M6	M6	M6	M6	M6	M6	M10
Accuracy	±0.2% F.S. @ 73°F (23°C)
Selectable Units	oz, g, kg, N and lb. (Depending on Range)
Overload Capacity	200% of F.S. (200 lb and up: 150% F.S.)
Data Sampling Rate	1000 Hz
Display	4-Digit LCD, 0.5” (12 mm) high, Units 0.29” (7 mm). Reversible. Minus sign for tension
Display Update Rate	0.05, 0.1, 0.2, 0.3, 0.5, 1 sec
Power	Rechargeable Ni-MH battery or universal AC adapter/charger (100 - 240 VAC, 50/60 Hz)
Auto Power Shut-Off	Yes (not active if adapter/charge is in use)
Battery Charge	Approximately 12 hours continuous use per full charge
Recharge Time	Approximately 18 hours (when fully discharged)
Temperature Limits	32 - 104°F (0 - 40°C)
Dimensions	5.8 x 3 x 1.5” (147 x 75 x 38 mm)
Product Weight	1 lb								1.1 lb	2 lb
Package Weight	2.25 lb		2.4 lb						2.75 lb	7.45 lb
Certification	CE, RoHS
Warranty	1 year
Included Accessories	AC adapter/charger, carrying case, hook, chisel, flat head, notched head, hanger, cone head, metric to inch thread adapter, extension rod
		FGE-500HXY AC adapter/charger, carrying case, 2 handles, hanger, metric thread to inch adapter, calibration cert and attachments (flathead, hook, chisel, notched head, cone head, extension rod) in a foam fitted plastic carrying case
