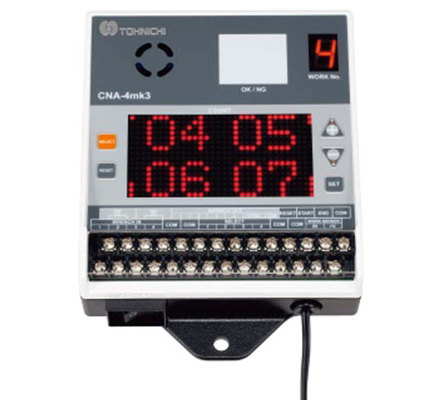

Tohnichi รุ่นCNA-4MK3 Poka Patrol Count Checker

COUNT DISPLAY

16×32 dot-matrix LEDs

OK/NG JUDGEMENT DISPLAY

30×25 square display lamp (commonly used for OK/NG)
OK:Blue lamp turned on NG: Red lamp blinking＋Buzzer sounds（4 patterns

WORK NO. SELECTION DISPLAY

1-digit 7-segment LED

COUNT INPUT

Contact input x 4

MAX. TIGHTENING NUMBER OF BOLTS

99 counts

MAX. NUMBER OF WORKS

8 sets

OK/NG JUDGEMENT SETTING

Preset judgement
END input judgement
Automatic judgement (0 to 300 seconds in steps of 1 second)

OUTPUT FUNCTION

OK/NG output (Relay contact output rating: 30 V DC, 1 A, 125 V AC, 0.3A)

INPUT FUNCTION

SELECT input×4 START input END input
RESET input WORK SENSOR input

TIMER FUNCTION SETTING

Double count prevention timer (0 to 10 seconds in steps of 0.1 second)
Automatic reset timer (0 to 60 seconds in steps of 1 second)
Interval warning timer (0 to 99 seconds in steps of 1 second)

SETTING METHOD

Special-purpose application software (USB communication), key operation

WORKING TEMPERATURE RANGE

-10～40 [℃ ]

ELECTRICITY CONSUMPTION [W]

Below 10

POWER SUPPLY AC[V]

100～240V±10% 50/60Hz

WEIGHT

Approx. 400g
