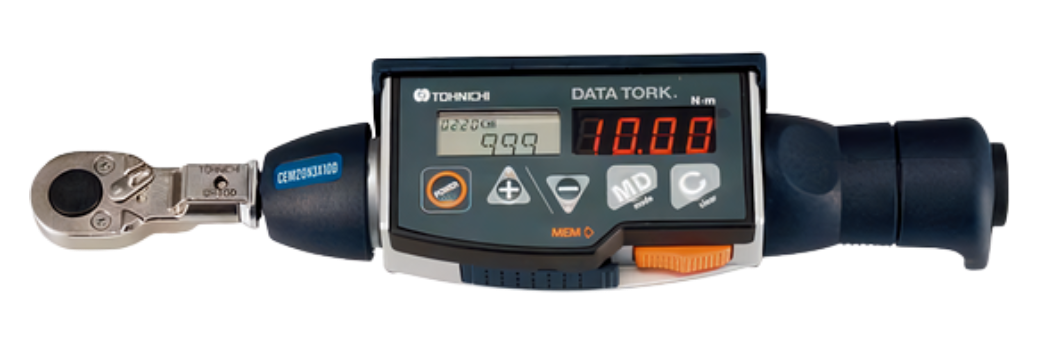

-Torque wrench for inspection and tightening of tightened screws.
-Robust and strong aluminum body.
-With CE mark that can be used safely even in the EU.
-It is designed (Tohnichi Unified Design) so that it is easy to use regardless of individual differences in color vision.
Product Highlights
- Industrial Grade Digital Torque Wrench Ideal for Quality Inspections
- Robust and durable aluminum body.
- Two Mode Selection: Measuring Mode for quality inspections of already tightened fasteners or Tightening Mode for applying torque
- Dual LED and LCD Displays
- LCD screen is viewable under the direct light, while LED screen is vivid in dark places.
- Easily select unit of measure by keypad. Certificate supplied in SI units.
- 999 Data Memory Capacity with torque value, time/date stamp, and count
- Automatic or Manual Save Modes
- Set up Menu Selection: Measuring/Tightening Mode, Unit of Measure, Clock, Date, Data Output, Baud Rate, Hi/Lo Judgments, Buzzer, Auto- reset timer
- Ergonomically designed and adapted for Color Vision Deficiencies (Tohnichi Unified Design).
Accuracy ±1% |
MODEL |
CEM10N3X8D-G |
CEM20N3X10D-G |
CEM50N3X12D-G |
CEM100N3X15D-G |
TORQUE RANGE [N • m] |
MIN.~MAX. |
2~10 |
4~20 |
10~50 |
20~100 |
1 DIGIT |
0.01 |
0.02 |
0.05 |
0.1 |
TORQUE RANGE [kgf • cm] |
MIN.~MAX. |
20~100 |
40~200 |
100~500 |
200~1000 |
1 DIGIT |
0.1 |
0.2 |
0.5 |
1 |
TORQUE RANGE [kgf • m] |
MIN.~MAX. |
0.2~1 |
0.4~2 |
1~5 |
2~10 |
1 DIGIT |
0.001 |
0.002 |
0.005 |
0.01 |
TORQUE RANGE [lbf • in] |
MIN.~MAX. |
20~90 |
36~180 |
100~440 |
200~880 |
1 DIGIT |
0.1 |
0.2 |
0.5 |
1 |
TORQUE RANGE [lbf • ft] |
MIN.~MAX. |
1.5~7.3 |
3~14.5 |
7.5~36 |
15~73 |
1 DIGIT |
0.01 |
0.02 |
0.05 |
0.1 |
MAX. HAND FORCE [N] |
48.1 |
92.2 |
196.9 |
275.5 |
DIMENSION [mm] |
EFFECTIVE LENGTH (L) |
208 |
217 |
254 |
363 |
OVERALL LENGTH (L') |
212 |
214 |
282 |
384 |
HEAD (d3) |
8 |
10 |
12 |
15 |
WEIGHT [kg] |
0.46 |
0.47 |
0.58 |
0.63 |
INTERCHANGEABLE HEAD |
(SH,RH,QH,HH) 8D |
(SH,SH-N,RH,QH,DH,HH) 10D |
(SH,RH,QH,RQH,DH,HH) 12D |
(SH,RH,QH,RQH,DH,HH) 15D |
Accuracy ±1% |
MODEL |
CEM200N3X19D-G |
CEM360N3X22D-G |
CEM500N3X22D-G |
CEM850N3X32D-G |
TORQUE RANGE [N • m] |
MIN.~MAX. |
40~200 |
72~360 |
100~500 |
170~850 |
1 DIGIT |
0.2 |
0.4 |
0.5 |
1 |
TORQUE RANGE [kgf • cm] |
MIN.~MAX. |
400~2000 |
720~3600 |
1000~5000 |
- |
1 DIGIT |
2 |
4 |
5 |
- |
TORQUE RANGE [kgf • m] |
MIN.~MAX. |
4~20 |
7.2~36 |
10~50 |
17~85 |
1 DIGIT |
0.02 |
0.04 |
0.05 |
0.1 |
TORQUE RANGE [lbf • in] |
MIN.~MAX. |
360~1700 |
650~3100 |
890~4400 |
- |
1 DIGIT |
2 |
4 |
5 |
- |
TORQUE RANGE [lbf • ft] |
MIN.~MAX. |
30~150 |
52~260 |
73~360 |
124~620 |
1 DIGIT |
0.2 |
0.4 |
0.5 |
1 |
MAX. HAND FORCE [N] |
428.3 |
498.6 |
549.5 |
608 |
DIMENSION [mm] |
EFFECTIVE LENGTH (L) |
467 |
722 |
910 |
1398 |
OVERALL LENGTH (L') |
475 |
713 |
949 |
1387 |
HEAD (d3) |
19 |
22 |
32 |
WEIGHT [kg] |
0.78 |
1.13 |
4.00 |
5.14 |
INTERCHANGEABLE HEAD |
(SH,RH,QH,RQH,DH,HH) 19D |
(SH,RH,QH,RQH,DH,HH) 22D |
(SH,RH,QH) 32D |
|
DISPLAY (Torque value) |
7 elements LED 4 lines* |
(Counter) |
14 LCD elements 3 lines* |
Digit Height (Torque Value) |
10.16mm* |
(Counter) |
7mm* |
Number of results stored in memory |
999 values |
Main functions |
Maximum value when measured |
Maximum value of all results in memory |
Display of the current torque when tightening |
Automatic saving of results in memory, reset |
Automatic zero setting |
Automatic shutdown after 3 minutes |
Sound and light signal about exceeding the torque |
date and time |
Data transfer |
RS232C (2400-19200bps) |
USB |
Battery charging indication |
There is |
Source of power |
Ni-MH battery (replaceable) |
Working time |
20 hours with a fully charged battery |
Charging time |
Approximately 3.5 hours |
Operating temperature range |
0-40 deg. Celsius |
|
