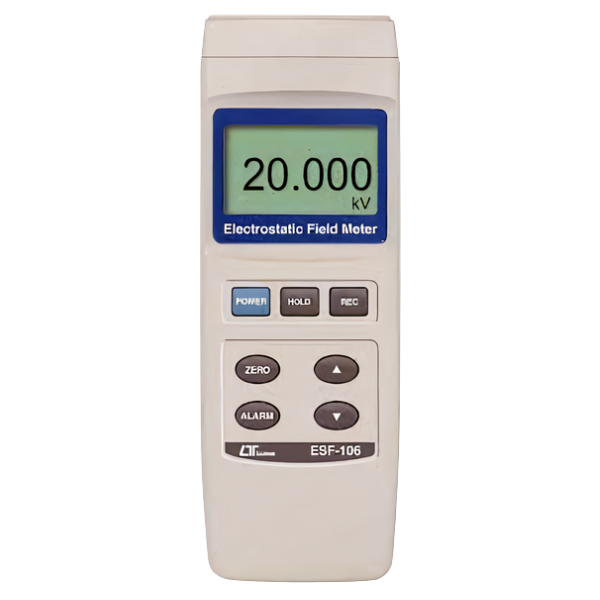

Lutron รุ่นESF-106เครื่องวัดไฟฟ้าสถิตย์,Electrostatic Voltage Meter,Meas.range:-19.999～19.999kV.

Lutron Electrostatic Voltage Meter (ESF-106) -19.999kV to 19.999kV

• Professional precision STATIC Voltage meter with 0.001 kV resolution.
• Measurement range: -19.999 kV to +19.999 kV.
• High voltage alarm: plus or minus 18.000kV.
• ALARM setting: 0.010 kV to 18.000 kV.
• Data hold , Record ( Max. , Min.).
• LCD with green light backlight, easy reading.
• Built-in low battery indicator.
• Circuit Custom one-chip of microprocessor LSI circuit.
• Data hold Freeze the display reading.
• Memory recall Maximum and Minimum value.
• Data output RS232/USB PC Computer interface.
• Connect the optional RS232 cable, UPCB - 02 will get the RS232 plug.
• Connect the optional USB cable, USB - 01 will get the USB plug.

SPECIFICATIONS

• Static Voltage Range: 19.999 to -19.999 kV
• Resolution: 0.001 kV
• Accuracy: within (95% + 50d) at 18 to 28℃
• Display LCD size: (51x30mm)
• Max. indication: ± 19999.
• Measurement Static Voltage : -19.999 kV to +19.999 kV
  Over input " ---- " mark indication.
• Zero adjustment ZERO button.
• Sampling time Approx. 0.5 second.
• Operating Temperature: 32° F to 122° F (0° to 50° C).
  NOTE most batteries are not rated for below -4° F or above 125° F.
• Operating Humidity: less than 80% RH non-condensing.
• Power supply: (1) 9v Alkaline or equivalent battery.
• Power consumption: approximate 6mA DC.
• Weight: approximately 8 ounces (215 g).
• Dimensions: 7.6" x 2.6" x 1.2" (195 x 68 x 30mm).

Supplied with:

• Instruction manual.
• included 1" Magnetic Spacer.
• Ground wire.
• Ground CLIP.

Optional:

• USB cable, USB-01.
• RS232 cable, UPCB-02.
• Carrying case, CA-06.
• Data Acquisition software, SW-U801-WIN.
• Excel Data Acquisition software, SW-E802.
