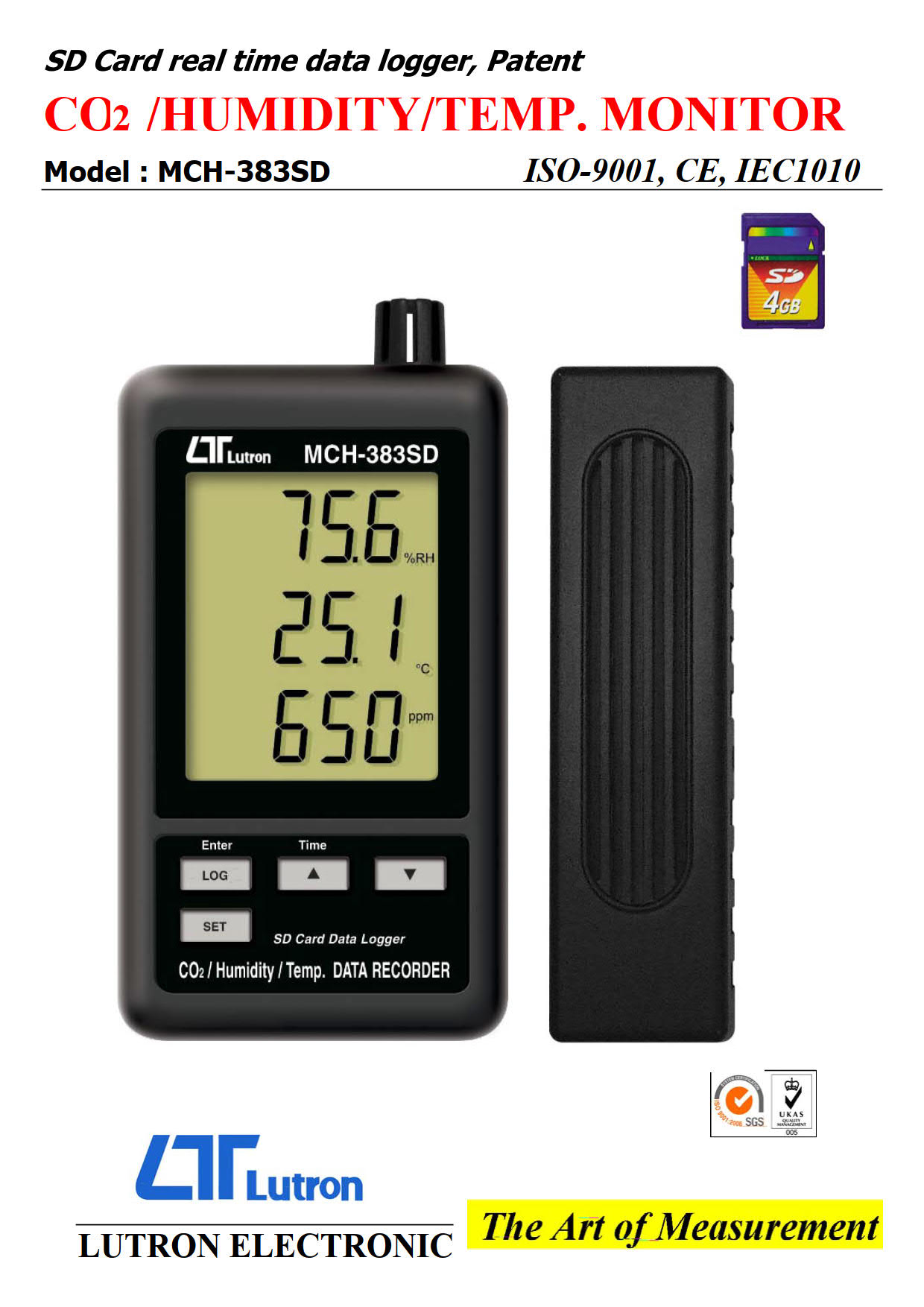

Lutron รุ่นMCH-383SDเครื่องวัดก๊าซคาร์บอนไดออกไซด์แบบบันทึกค่าได้,3-1 Air Quality Monitor CO2,humidity,Temperature meter with DataLogging

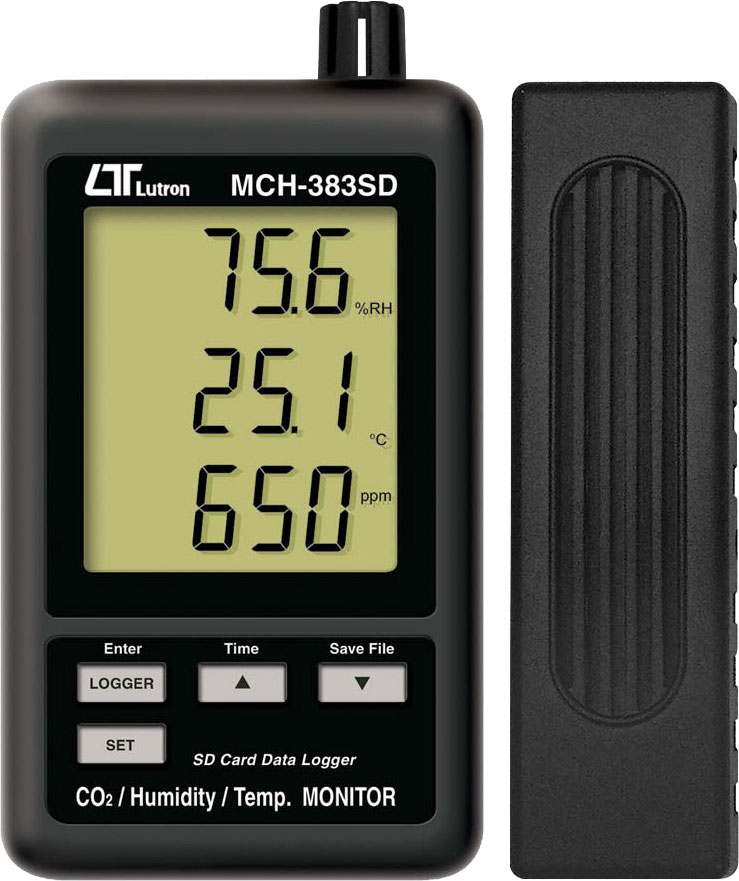

Lutron Air Quality Monitor (MCH-383SD) Measures Carbon Dioxide CO2, Relative Humidity & Temperature. DataLogger records onto an optional SD card.

Carbon dioxide monitoring is becoming a common practice to determine energy efficient ventilation regimes for buildings. The Lutron MCH-383SD is a very economical way to obtain long term data on these variables. Data is saved at intervals or "automatically" where data is logged when there is a change in the measured variables. Data is recorded on an optional SD card, which can then be transferred to a computer and analyzed using a typical spreadsheet program.

• Displays and records Carbon Dioxide CO2, RH and Temperature levels with date and time stamp.
• Datalogger sampling time: every 5, 10, 30, 60, 120, 300 or 600 seconds. Also can be set to automatic.
• Wall mountable & built-in easel back.
•  Large multi-parameter display.

Specifications:

• Carbon Dioxide (CO2) with automatic temperature compensation (ATC):
  • Range: 0 to 4,000 ppm.
  • Resolution: 1 ppm.
  • Accuracy:
  • plus or minus 40 ppm at less than 1,000 ppm.
  • within 5% of reading at greater than 1,000 ppm and less than 3,000 ppm.
  • plus or minus 250 ppm typically at greater than 3,000 ppm (reference only).
• Humidity (RH):
• Range: 10 to 90% RH (non-condensing).
• Resolution 0.1 % RH.
• Accuracy: within 4% of the reading.
• Temperature (°F/°C):
• Range: 32 to 122°F (0 to 50°C).
• Resolution: 0.1°
• Accuracy*: within 1.5°F (0.8°C).
  *above specifications are with RF Field Strength less than 3 V/M & frequency less than 30 MHz.
• Operating Temperature: 32°F to 122°F (0° to 50°C).
  NOTE most batteries are not rated for below -4° F or above 125° F.
• Operating Humidity: less than 90% RH non-condensing.
• Power: (6) AAA 1.5v alkaline batteries or equivalent or by 9 volt AC adapter.
• Weight:
  • Base unit: 8.5 ounces (240g).
  • CO2 probe: 5.6 ounces (158g).
• Dimensions:
  • Base unit: 5.2" x 3.1" x 1.3" (132x80x32mm).
  • CO2 probe: 5.2" x 1.5" x 1.2" (132x37x31mm) with 8" cord.

Supplied with:

• Operation manual.
• CO2 probe.
• Wall mounting hardware for base unit and CO2 probe (with double sided mounting tape).
• 110v AC to 9v DC adapter AP-9V110.

Optional accessories:

• SD card
• USB to 9v DC power cable USBP-59.
• Data acquisition software with USB cable USB-2005.
