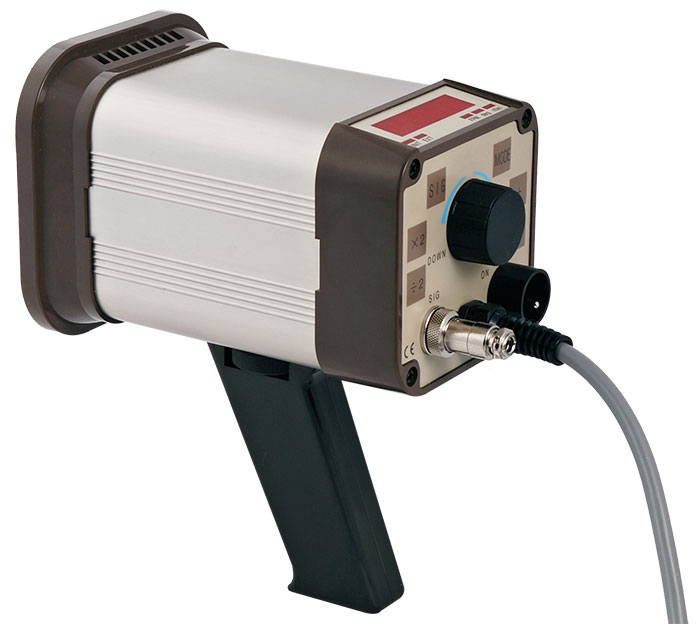

NidecSHIMPO รุ่นDT-311A-230Vเครื่องวัดความเร็วรอบไฟซีนอน,Heavy Duty Xenon Stroboscope 230VAC,Meas.range:40～35,000fpm

Model

DT-311A-230V

Power Requirement

220 VAC

±10 % 60/50 Hz

Battery Life

1 – 2 hours depending on the flash rate

Flash Rate Range

40.0 – 35,000 fpm (flashes per minute)

Accuracy

±0.01 % of reading

Resolution

• 0.1 fpm: 40.0 – 5,000 fpm
• 0.2 fpm: 5,001 – 8,000 fpm
• 0.5 fpm: 8,001 – 10,000 fpm
• 1 fpm: 10,001 – 35,000 fpm

Phase Shift

Use +/- push buttons (360° in 6 seconds)

Display Update Time

0.2 sec approx

Output Signal

Synchronous, 400 µsec. Pulse output, 0 to +12 VDC amplitude (approx.), 4.7 KO impedance

Rate Multiplier/Divider

Multiply by 2, divide by 2

Flashing Range

0.0 to 35,000 fpm

External Mode Accuracy

±0.01 % ±1 digit

Phase Shift

0 to 359° with 1° resolution

Delay Time

0 to 2,000 mSec from 40 – 10,000 fpm

External Trigger Input Signal

LO level: 0 -0.8 VDC, HI level: 2.5 – 12 VDC or open collector (NPN),pulse width 50 µsec min.

Input Impedance

4.7 KO to 12 V / 6.8 KO to 0 V

Display

5 digits, 0.4” (10 mm) high, LED

Flashtube Power/Life

Xenon, 10 W max. (100 million flashes)

Flash Duration

10 to 40 µs automatically adjusts with flash rate

Lux Rating

8” (20 cm) Distance = 4500 lx @ 1500 fpm, 3375 lx @ 6000 fpm with 4.5? (110 mm) irradiation diameter.

20” (50 cm) Distance = 1300 lx @ 1500 fpm, 930 lx @ 6000 fpm with 10? (250 mm) irradiation diameter.

Operating Temperature

32° – 104°F (0 – 40°C))

Dimensions

7.28” L x 4.72” W x 4.72” H (185 mm x 120 mm x 120 mm)

Product Weight

3.35 lbs (1.52 kg)

Package Weight

4.4 lbs (2 kg)

Warranty

2-year

Certification

CE

Included Accessories

Handle, flash tube removal tool
