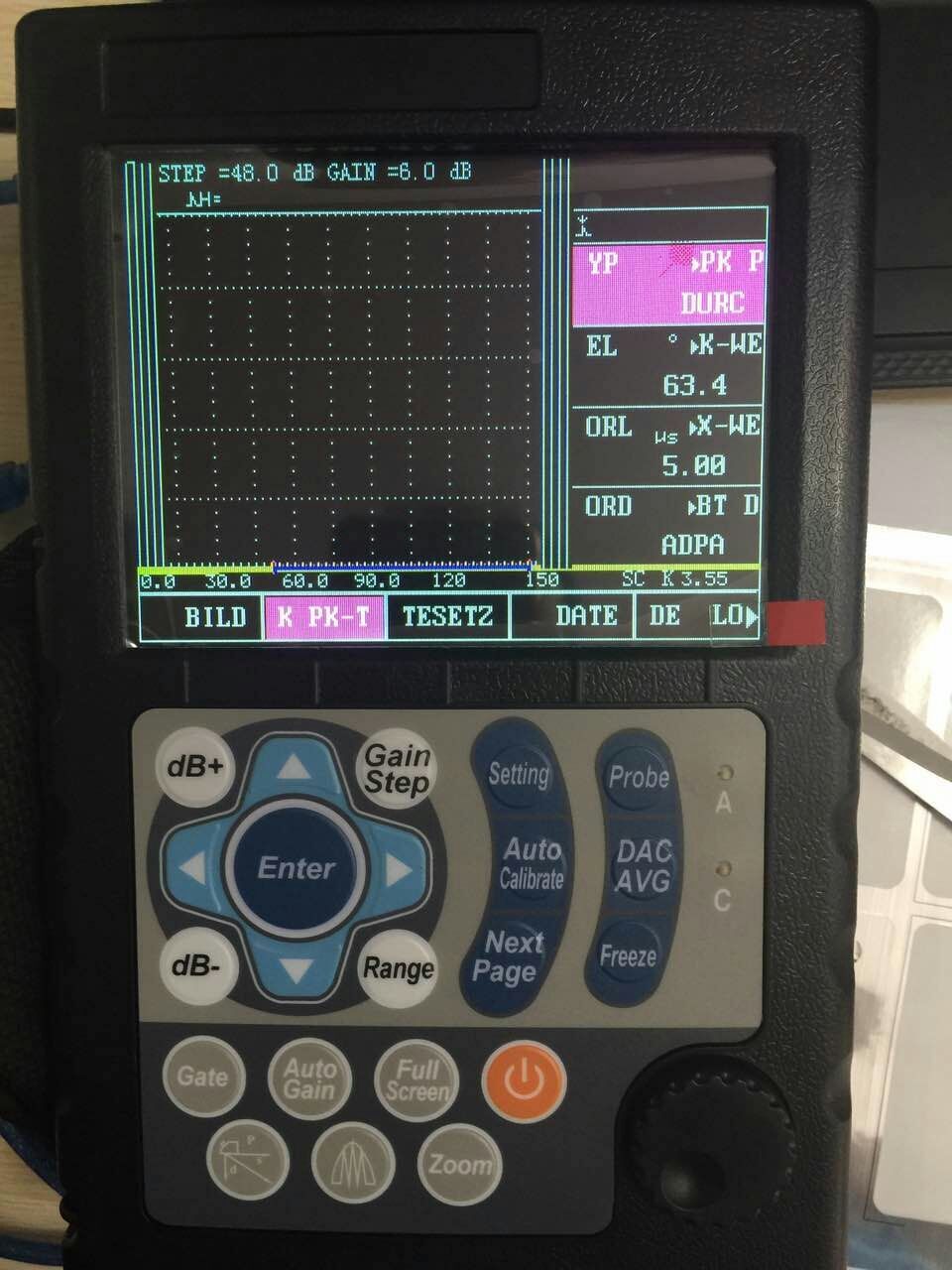

Digital Portable Handheld Ultrasonic Flaw Detector, NDT, ultrasonic tesing machine RFD620 เครื่องตรวจจับข้อบกพร่องอัลตราโซนิกแบบพกพาดิจิตอลแบบพกพา NDT เครื่องทดสอบอัลตราโซนิก RFD620

Automated calibration,Automated gain

★ DAC,AVG,TCG,B scan,AWS

★ High-speed capture and very low noise

★ Solid metal housing

★ high contrast viewing of the waveform from bright

★ Powerful pc software and reports can be export to excel

Features:

1.Automated display precise flaw location(Depth d,level p,distance s,amplitude,sz dB);

2.Automated switch three staff gauge ((Depth d,level p,distance s)；

3.Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity；

4.Convenient to make and use DACTCG and AVG to evaluate the echo, the curve can be modified and compensated

5. 6dB DAC functions;

6.Standards of test for DAC is saved.

7. 300 independence setup, any criterion can be input freely, we can work in the scene without test

block；

8.Big memory of 800 A graph

9.Automated gain and gain scan;

10.Peak Hold and Peak Memory；

11.B scan;

12.AWS D1.1

13.Automated make video of test process and play; use upan,the length of video is unlimited.

14.Powerful pc software and reports can be export to excel;

15.Li battery, continue working time up to 12 hours;

16.The embeded software can be online updated；

Other assistant function

Display freeze;

Automated echo degree;

Angles and K-value;

Lock and unlock function of system parameters;

Electronic clock calendar ;

Two gates setting and alarm indication;

Gate and DAC alarm;

Specifications

Standard Configuration
