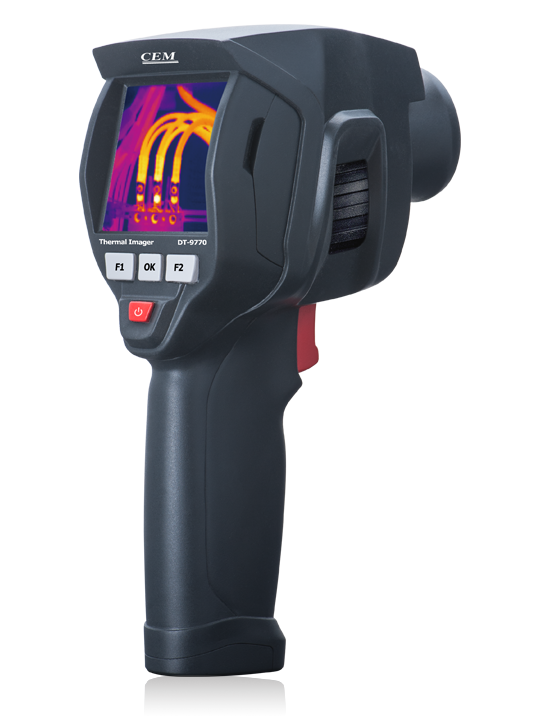

CEM instruments DT-9770/9771/9772 High Performance

Specifications

DT-9770

DT-9771

DT-9772

Imaging and Optical Data

IR Resolution

focal plane array (FPA), uncooled microbolometer

160x120

384x288

640x480

Field of View (FOV)

29.8°x 22.6°

29.8°x 22.6°

24.6°x 18.6°

24.6°x 19.8°

Spatial Resolution

IFOV

3.78 mrad

1.15 mrad

0.77 mrad

Thermal Sensitivity/NETD

<0.05℃ @ +30℃ (+86℉)/50mK

*

*

*

Image Frequency

50Hz

*

*

*

Focus

Manual

*

*

*

Image Presentation

Display

3.5" TFT, touchscreen

*

*

*

Image Mode

IR image, visual image, picture in picture

*

*

*

Color Palette

Gray/Gray Iron/Iron/Rainbow/Feather

*

*

*

Measurement

Object Temperature Range

Low range: -20℃ to +150℃ (-4℉ to +302℉)

High range: 0℃ to +450℃ (+32℉ to +842℉)

*

*

*

Accuracy

±2℃ (±3.6℉) or ±2% of reading

*

*

*

Measurement Analysis

Emissivity

0.01~1.0 Adjustable

*

*

*

Automatic hot /cold detection

Auto hot or cold marks

*

*

*

Set-up

Laser/Floodlight

<class 2/white LED floodlight

*

*

*

Set-up Commands

Local adaptation of units, language, date and time formats, information of camera

*

*

*

Language Selection

English, Chinese, French, German, Spanish

*

*

*

Storage of Videos/ Images

Storage Media

8Gbytes Micro SD card

*

*

*

Video Storage Format

Standard MPEG-4, 640x480@30fps, on memory card>60mins

*

*

*

Image Storage Format

Standard JPEG, including measurement data, on memory card>1000 pictures

*

*

*

Storage Mode

IR/visual images; simultaneous storage of IR and visual images

*

*

*

Digital Camera

Built-in Visible Light Digital Camera

2M Pixels

*

*

*

Data Communication Interfaces

USB Interfaces

USB-mini, data transform between camera and PC

*

*

*

Remote control, live video

*

*

*

Wi-Fi Connectivity

Wi-Fi connectivity allows to send images and data to mobile devices

*

*

*

Power System

Battery

Lithium polymer battery, 4.5 hours operating time

*

*

*

Input Voltage

DC 9V to 12V

*

*

*

Charging System

In camera (AC adaptor)

*

*

*

Power Management

Automatic shutdown and sleep mode (user selectable)

*

*

*
