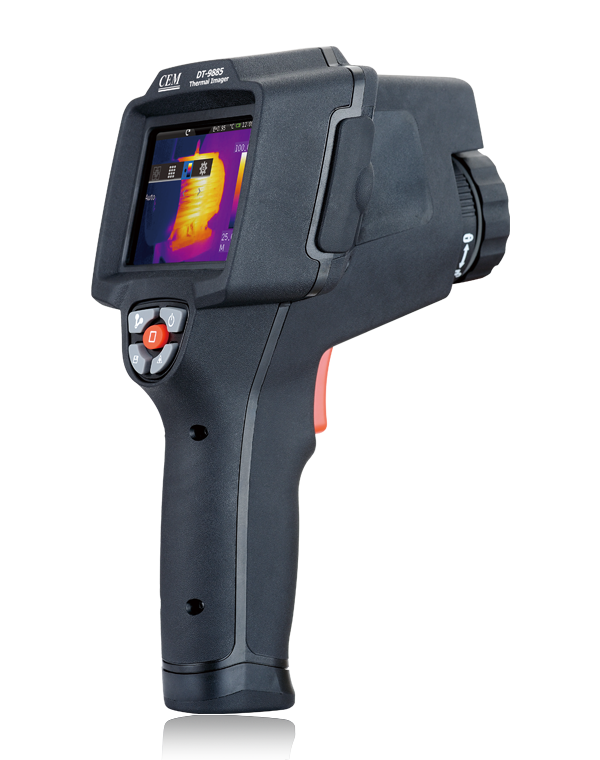

CEM รุ่นDT-9885กล้องถ่ายภาพความร้อนHigh Performance High Resolution Thermal Imagers

Imaging and Optical Data

IR Resolution

384 x 288 pixels, focal plane array (FPA), uncooled microbolometer

*

*

Field of View (FOV)

24.6°x 18.6°

*

*

Minimum Focus Distance

0.3m

*

*

Spatial Resolution

(IFOV) 2.28mrad

*

*

Thermal Sensitivity/NETD

<0.06℃ @ +30℃ (+86℉)/60mK

*

*

Image Frequency

50Hz

*

*

Focus

Manual

*

*

Zoom

1-20x continuous, digital zoom

*

*

Rotate

0-360°, continuous change by 1°

*

*

Image Presentation

Display

3.5" TFT, touchscreen

*

*

Image Mode

IR image, visual image, picture in picture, image fusion

*

*

Picture in Picture

IR area on visual image or visual image area on IR

*

*

Color Palette

Iron/rainbow/grey/grey inverted/ sepia/blue red/hot cold/humidity

*

*

Measurement

Object Temperature Range

Low range: -20℃ to +150℃ (-4℉ to +302℉)

*

*

High range: 0℃ to +400℃ (+32℉ to +752℉)

*

*

Accuracy

±2℃ (±3.6℉) or ±2% of reading

*

*

Measurement Analysis

Spot

3

*

*

Emissivity

0.01~1.0 Adjustable

*

*

Emissivity Table

Emissivity table of predefined materials

*

*

Line

2 lines (horizontal and vertical)

*

*

Area

3 boxes with max/min/average

*

*

Automatic hot /cold detection

Auto hot or cold marks

*

*

Isotherm

High/low temperature/interval detection

*

*

Measurement Corrections

Emissivity, ambient temperature, distance, relative humidity, offset temperature

*

*

Set-up

Laser/Floodlight

<="" span="">

*

*

Set-up Commands

Local adaptation of units, language, date and time formats, information of camera

*

*

Language Selection

English, Chinese, French, German, Spanish

*

*

Storage of Videos

Storage Media

4 Gbytes Micro SD card

*

*

Video Storage Format

Standard MPEG-4, 640x480@30fps, on memory card>60mins

*

*

Video Storage Mode

IR/visual images; simultaneous storage of IR and visual images

*

*

Storage of Images

Image Storage Format

Standard JPEG, including measurement data, on memory card>1000 pictures

*

*

Image Storage Mode

IR/visual images; simultaneous storage of IR and visual images

*

*

Digital Camera

Built-in Visible Light Digital Camera

640x480 pixels

*

*

Data Communication Interfaces

USB Interfaces

USB-mini, data transform between camera and PC

*

*

Remote control, live video

*

Wi-Fi Connectivity

Wi-Fi connectivity allows to send images and data to mobile devices

*

Video out

Composite (PAL and NTSC)

*

*

Power System

Battery

Lithium polymer battery, 4.5 hours operating time

*

*

Input Voltage

DC 9V to 12V

*

*

Charging System

In camera (AC adaptor)

*

*

Power Management

Automatic shutdown and sleep mode (user selectable)

*

*

Environmental Data

Operating Temperature Range

-20 to 50 ℃ (-4 to 122 ℉)

*

*

Storage Temperature Range

-40 to 70 ℃ (-40 to 158 ℉)

*

*

Humidity (Operating and Storage)

10%~90%RH

*

*

Encapsulation

IP65

*

*

Drop Test

2m

*

*

Bump

25g (IEC 60068-2-29)

*

*

Vibration

2g (IEC 60068-2-6)

*

*

Physical Data

Camera Weight incl. Battery

920g

*

*

Camera Size

243mm(L) x 103mm(W) x 160(H)

*

*
