CEM instruments LDM-110H Series

Features

LDM-40H

LDM-50H/ LDM-100

LDM-60H

LDM-70H

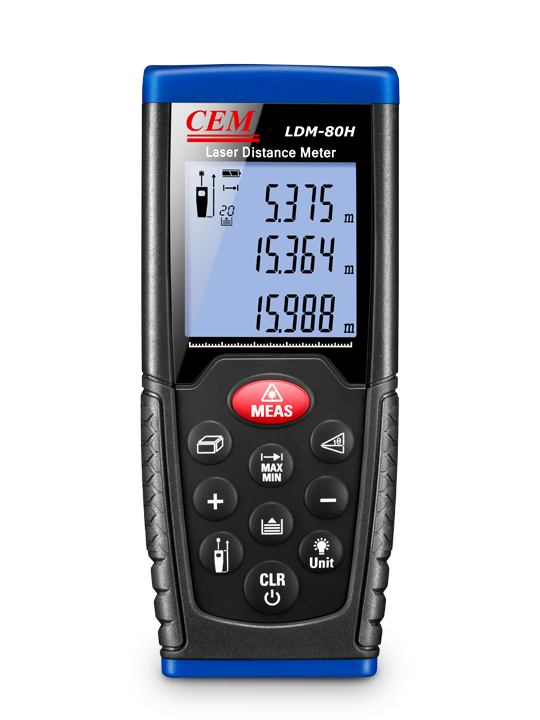

LDM-80H

LDM-100H

LDM-110H

LDM-35

LDM-65

Measuring Range

40m (131.2ft)

50m (164.2ft)

60m (196.8ft)

70m (229.6ft)

80m (262.4ft)

100m (328.0ft)

110m (360.8ft)

35m (114.0ft)

65m (213.2ft)

Area, Volume Calculations

*

*

*

*

*

*

*

*

*

Indirect Measurement Using Pythagoras

*

*

*

*

*

*

*

*

*

Addition/Subtraction

*

*

*

*

*

*

*

*

*

Continuous Measurement

*

*

*

*

*

*

*

*

*

Min/Max Distance Tracking

*

*

*

*

*

*

*

*

*

Display Illumination and Multi-line Display

*

*

*

*

*

*

*

*

*

Buzzer Indication

*

*

*

*

*

*

*

*

*

Enhanced Outdoor Performance

*

*

*

*

*

*

*

±1.5mm High Accuracy

*

*

*

*

*

*

*

Specifications

LDM-40H

LDM-50H/ LDM-100

LDM-60H

LDM-70H

LDM-80H

LDM-100H

LDM-110H

LDM-35

LDM-65

Measuring Range

0.05 to 40m/
0.15ft to 131.2ft

0.05 to 50m/
0.15ft to 164.2ft

0.05 to 60m/
0.15ft to 196.8ft

0.05 to 70m/
0.15ft to 229.6ft

0.05 to 80m/
0.15ft to 262.4ft

0.05 to 100m/
0.15ft to 328.0ft

0.05 to 110m/
0.15ft to 360.8ft

0.05 to 35m/
0.15ft to 114.0ft

0.05 to 65m/
0.15ft to 213.2ft

Measuring Accuracy

Typically ±1.5mm (±0.06in)

Smallest Unit Displayed

1mm

Measuring Units

m, in, ft

Laser Class

Class II 635nm, <1mW

Dust Protect/Splash Proof

IP54

History Measurement Records

20

Keyboard Type

Super Soft-touch (Long Life)

Operating Temperature

-10℃ to 50℃ (14℉ to 122℉)

Storage Temperature

-20℃ to 60℃ (4℉ to 140℉)

Battery Life

Up to 4,000 Measurements

Battery

Type AAA 2x1.5V

Auto Laser Switch-off

After 0.5min

Auto Instrument Switch-off

After 3min
