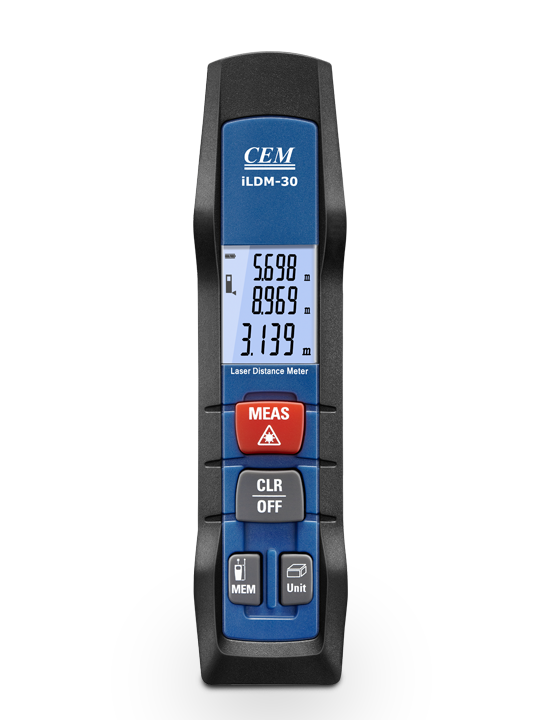

CEM instruments iLDM-30/50/LDM-30/50

Features

iLDM-30

iLDM-35

LDM-30

LDM-35

Bluetooth 4.0 with APP Support

*

*

Built-in Level vial

*

*

Unit Selectable (m, in, ft)

*

*

*

*

Area, Volume Calculations

*

*

*

*

Continuous Measurement

*

*

*

*

Min/Max Distance Tracking

*

*

*

*

Reference Level Selectable

*

*

*

*

Water and Dust Proof

*

*

*

*

Display Illumination and 3-line Display

*

*

*

*

Buzzer Indication

*

*

*

*

Specifications

iLDM-30/LDM-30 Measuring Range

0.05 to 30m/ 0.15ft to 98.0ft

iLDM-50/LDM-50 Measuring Range

0.05 to 50m/ 0.15ft to 164.0ft

Measuring Accuracy

Typically ±1.5mm (±0.06in)

Smallest Unit Displayed

1mm

History Measurement Records

20

Measuring Units

m, in, ft

Laser Class

Class II 635nm, <1mW

Dust Protect/Splash Proof

IP54

Operating Temperature

-10℃ to 50℃ (14℉ to 122℉)

Storage Temperature

-20℃ to 70℃ (4℉ to 158℉)

Battery Life

Up to 5,000 Measurements

Battery

Type AAA 2x1.5V

Auto Laser Switch-off

After 0.5min

Auto Instrument Switch-off

After 3min
