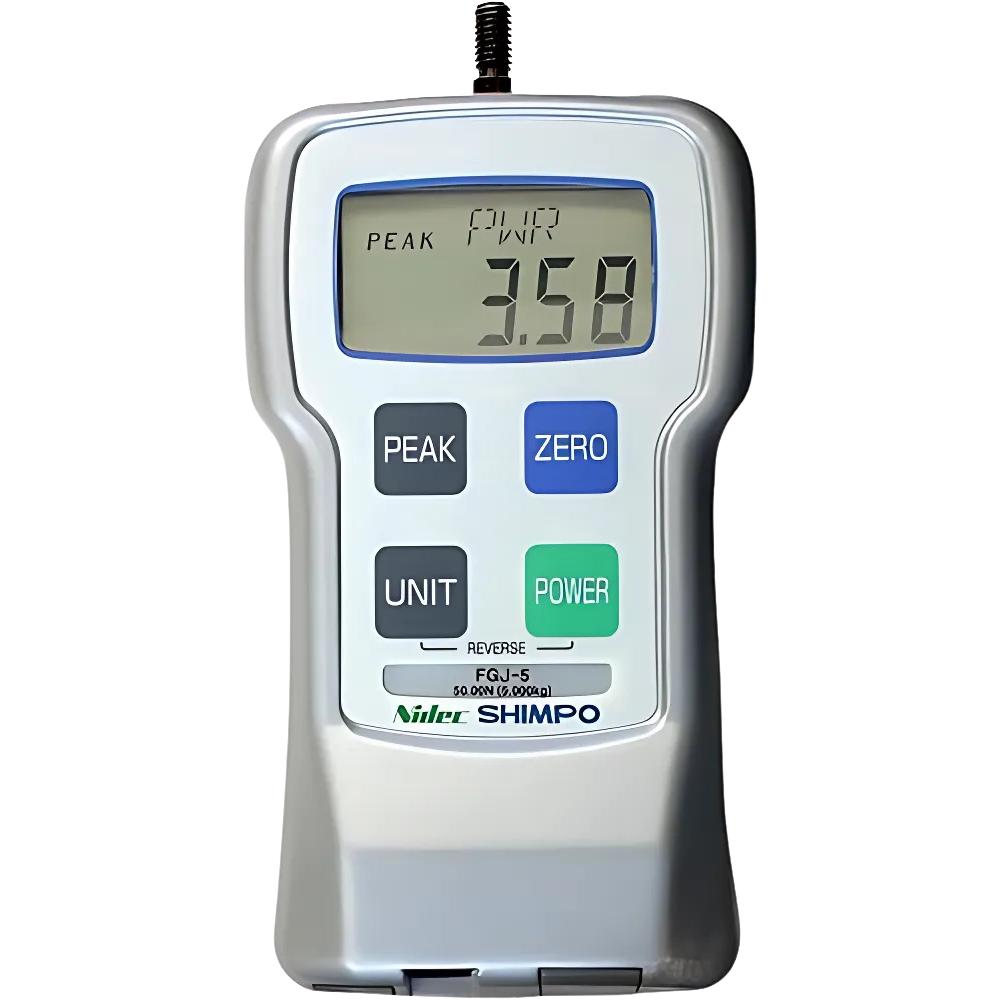

Shimpo รหัส FGJN-5 เครื่องวัดแรงดึงแรงผลักแสดงผลแบบดิจิตอล,Digital force gauge for simple tests,rated capacity(RC):±50.00N(±5.000kg)

Model

FGJN-5

Rated capacity (RC)

± 50.00N  (± 5.000kg)

Displayable range

± 50.00N ± 5.000kg

Display resolution

0.01N / 0.001kg

unit

N, kg (upside down display possible)

Measurement method

1. Normal measurement 2. Positive peak measurement 3. Negative peak measurement

Display cycle

1 time / second, 2 times / second, 3 times / second, 5 times / second, 10 times / second, 20 times / second

time to calculate

1000 times / sec

accuracy

± 0.3% and ± 1/2 digit of rated capacity (at 23 ° C)

Temperature effect

Zero: Canceled by tracking process, Span: ± 0.03% / LOAD / ℃

display

4-digit liquid crystal display, character height 12 mm, pull load-display (upside down display possible)

Various displays

1 "LO BAT" (low battery voltage)

2 "BAT" (charging)

3 "OVR" (overload)

4 "PEAK" (peak hold mode)

Overload capacity

200% / RC

Tracking function

Yes (ON / OFF switchable)

Power supply

Rechargeable (built-in nickel-metal hydride battery) and AC adapter (DC9V 200mA), measurable during charging Usable
time: Approximately 8 hours after full charge, Charging time: Up to 12 hours (automatically ends when fully charged)

Auto power off function

10 minutes (continuous use is possible when using the AC adapter) or OFF

Temperature range

0-40 ℃

External dimensions

Width 75 x thickness 38 x length 147 mm

Mass

Approximately 450g (including batteries)

Accessories

● Measurement adapter (M6) ● Hanger ● AC adapter ● Carrying case
