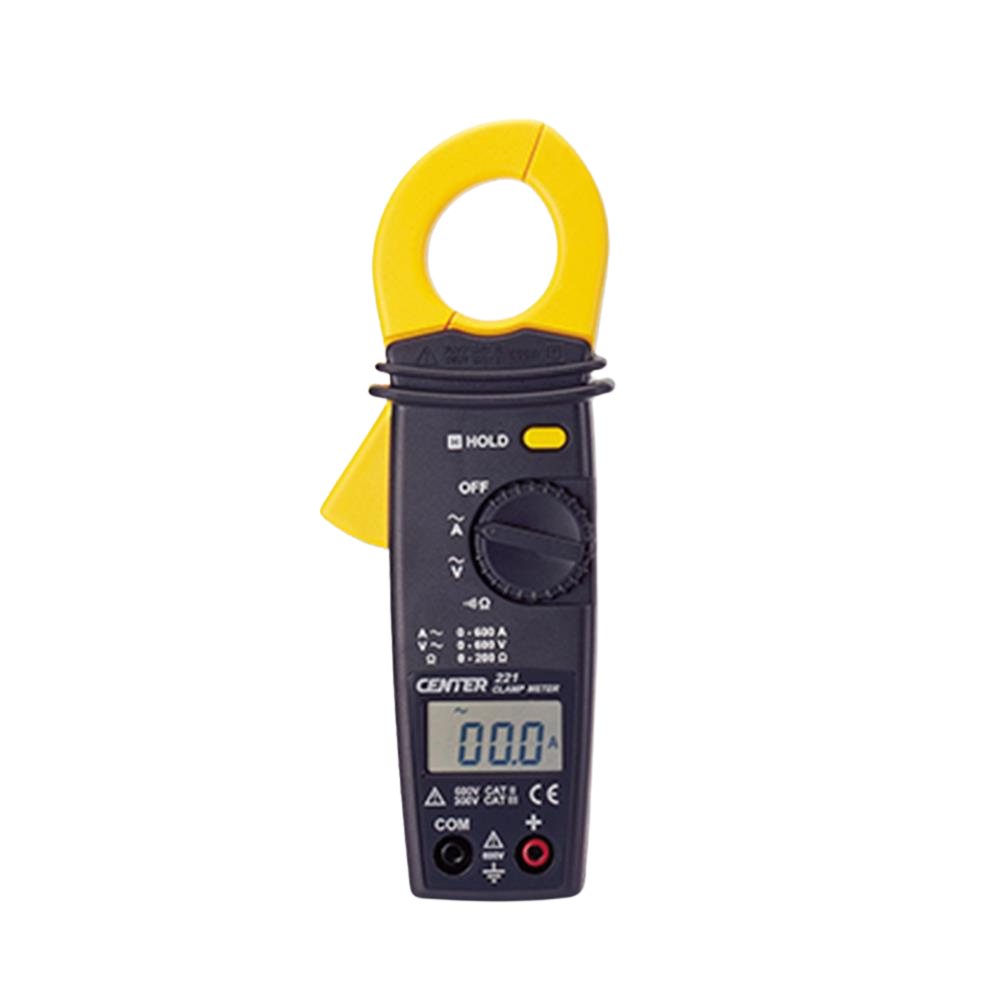

Center รุ่น CENTER-221 แคลมป์มิเตอร์,Clamp Meter(AC/DC 600V),Meas.range:200V~600V

CENTER 220/221/222 series Multimeter are mid-size clamp meters. These clamps can measure up to 1000A with resolution 0.01A. 1 ms peak function is also built in this series of clamps. This is especially useful for start current measurement. Maximum, Minimum and Hold are also standard functions for these testers. 210 is an AC clamp meter,211 is an AC True RMS clamp meter and 212 is AC/DC True RMS meter.

• Pocket Size
• 4 Digits Display
• Data Fold Function
• Autoranging

Function	Range	Resolution	Accuracy
ACA	20A~600A	0.1A~1A	±2%rdg+5dgts
ACV	200V~600V	0.1V~1V	±1.5%rdg+5dgts
Ohms	200Ω	0.1Ω	±1.9%rdg+3dgts
)))	Active Sound Level: ≦ 100Ω



Display 3-1/2, 4 digital Liquid display

Sampling Rate: 2 times/sec(digital reading)

Battery: 1.5V, size AAA battery x 2

Dimensions 187x50x29 mm

Weight: 210g

Maximum Jaw Opening: ø 25 mm
