Wingo รุ่น L-9000 เครื่องตัดชิ้นงานตัวอย่างชนิดบากหน้าและหลังแบบมือดึง,Sample cutting machine front and rear notch manual type,max. cutting φ80mm

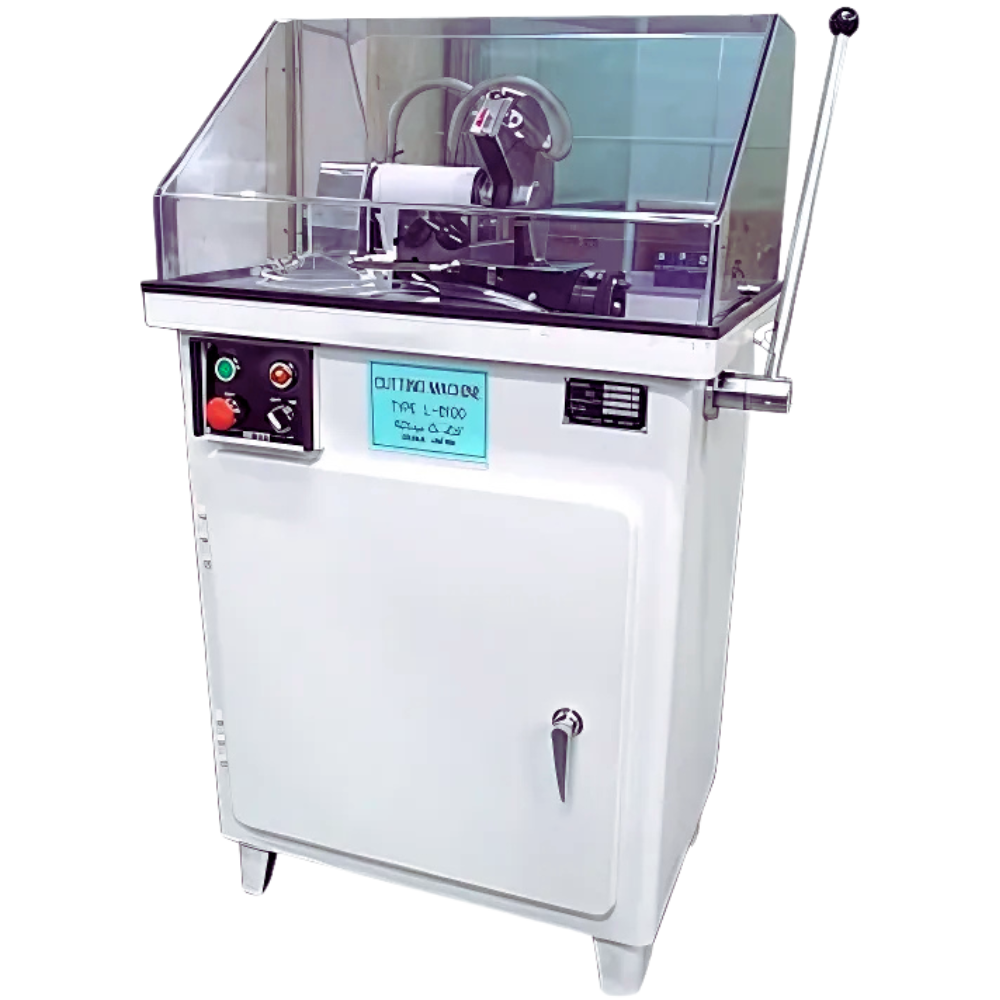

Specimen Cutters - Medium Cutters Models L-6000/6100, L-7000/7100, L-8000/8100, and L-9000/9100

Wingo’s specimen cutters enable stable cutting of materials without waste. Even difficult-to-process materials can be cut with precision. The double-column clamping vice enables secure clamping of irregularly shaped materials and easy vertical cutting.

Cooling water/cutting fluid circulated by a pump is sprayed from a whetstone cover to prevent degradation and clogging by whetstone particles due to heat effects during cutting and enable reduction of post-finishing processes. A transparent safety cover enables safe work by preventing scattering of whetstone particles and cutting chips. Moving and rotating parts are sinter-polished for excellent durability.

Manual Front/Back-slide Cutting Type

• The manual front/back- slide cutting models have an established reputation among operators. During the cutting is performed by pulling the side handle, hardness and states of the material being cut can be felt sensitively by the response transmitted to the hand.(The handle is a circular handle in the L-9000/9100 models.)
• The spindle motor is equipped with an ammeter that lets an operator clearly know the hardness of the material being cut, the cutting quality and other load conditions.
• The wide working base enables cutting of long materials.
• The double-column clamping vice enables secure clamping of irregularly shaped materials and prevents burr formation and chipping during cut-off.
• UD models (in which the whetstone shaft moves vertically) are also available.
