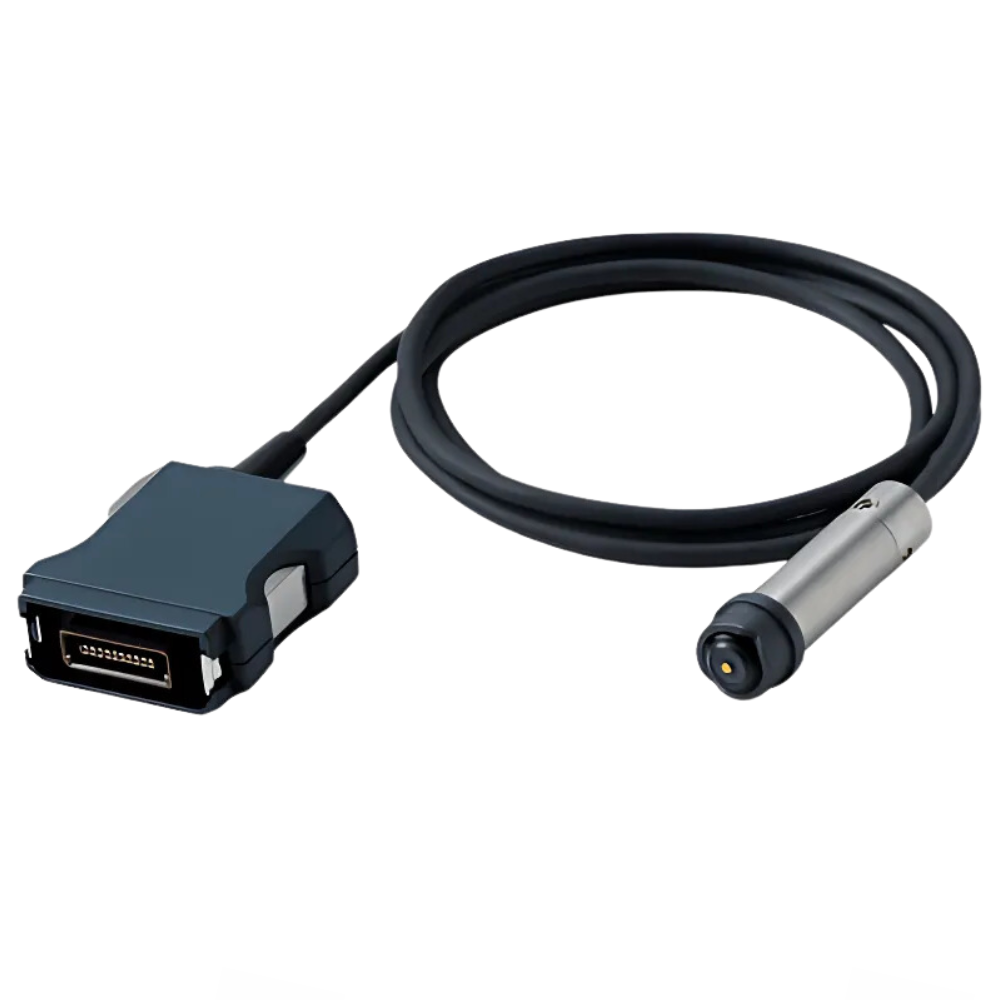

Sanko รุ่น SWT-SFN-325 โพรบวัดความหนาโลหะและอโลหะ,Probe for both ferrous&non-ferrous materials,meas.range:(F)0～3.00mm/(N)0～2.5mm,probe size:φ15×50.9mm

Model

SFN-325

Measurement method

Both electromagnetic induction and eddy current types
(automatic ferrous/non-ferrous substrate detection)

Measurement range

Ferrous substrate: 0~3.00,
Non-ferrous substrate: 0~2.50mm

Display resolution

1μm: 0~999μm
0.01mm: 1.00~3.00mm (ferrous substrate)
0.01mm: 1.00~2.50mm (non-ferrous substrate) 0.1μm: 0~400μm 0.5μm: 400~500μm
by switching

Measurement accuracy (for smooth surfaces)

0~100μm: ±1μm or within ±2% of indicated value
101μm~3.00mm: within ±2% of indicated value (ferrous substrate)
101μm~2.50mm: within ±2% of indicated value (non-ferrous substrate)

probe

1 point constant pressure contact type with V cut Approx. Φ15×51mm

accessories

Standard thickness plates, zero test plates (for ferrous and non-ferrous materials)

What to measure

Ferrous substrates: Paint, lining, thermal spray coating, plating (excluding electrolytic nickel plating) on magnetic metal substrates such as iron and steel, etc.
Non-ferrous substrates: For relatively general-purpose measurement of insulating coatings on non-magnetic metal substrates such as aluminum and copper
