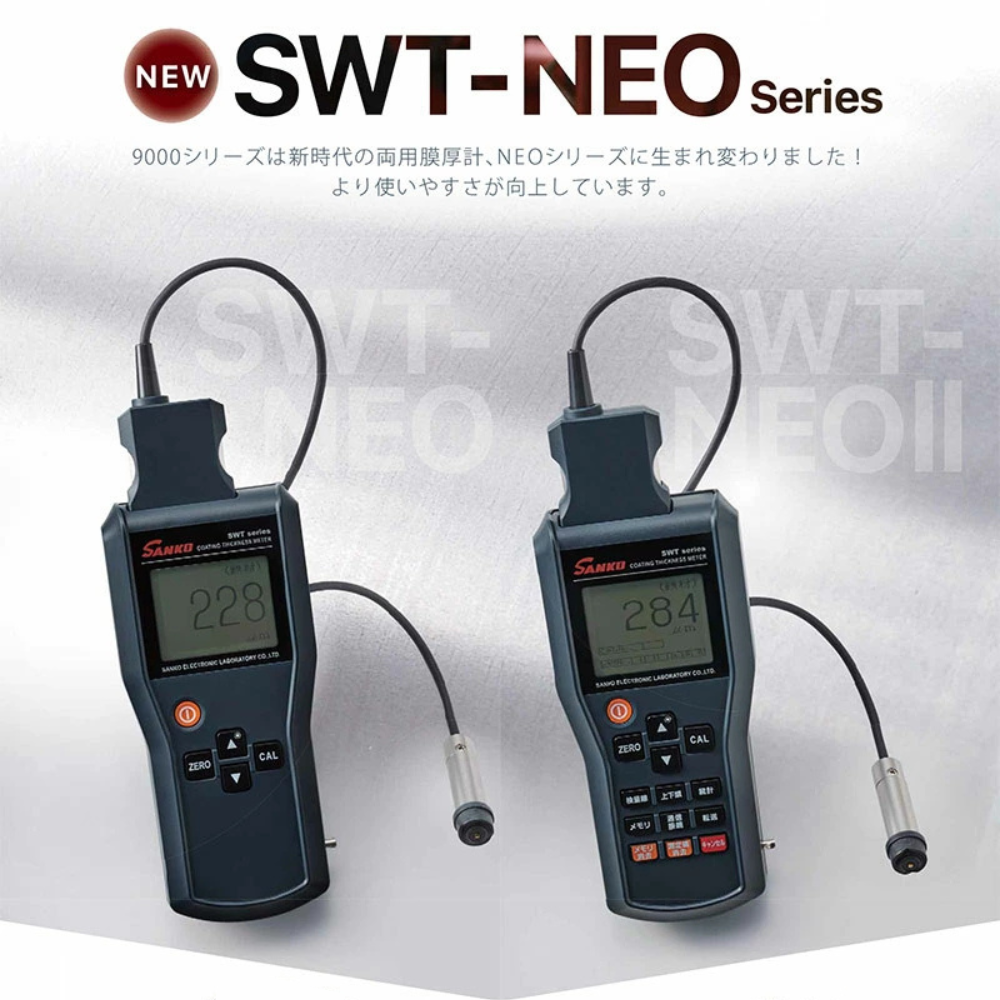

Sanko รุ่น SWT-NEO-2 เครื่องตรวจจับและเกจวัดความหนาแผ่นฟิล์มแบบประสิทธิภาพสูงพร้อมหน่วยความจำ,Dual type film thickness meter(Main Unit Only)

SWT-NEO series dual type coating thickness gauge for both ferrous and non-ferrous materials.You can select the connection probe according to the measurement purpose and object.Easy-to-understand guide display makes measurement easy.Data can be transferred to a computer via USB connection.Compliant with various standards such as JIS K 5600 and ISO2808.

• The connection probe can be selected according to the measurement purpose.

Probe compatibility allows you to freely select the connection probe that best suits your application and the object being measured. It is possible to have spare probes and various probes that match the shape of the substrate, greatly improving work efficiency.

• Easy-to-understand guide display screen

The LCD screen provides simple and easy-to-understand guides on how to operate the device.

• Data can be transferred to a computer via USB connection

Measurement data can be transferred by connecting to a PC with a USB cable. Data
is transferred in real time after each measurement.
All data stored in the memory can also be sent at once (excluding NEO).

• Key Notation

The key notation has been changed to Japanese for easier understanding.

• Unit Settings

The function to switch unit settings to "mil" is now officially included.

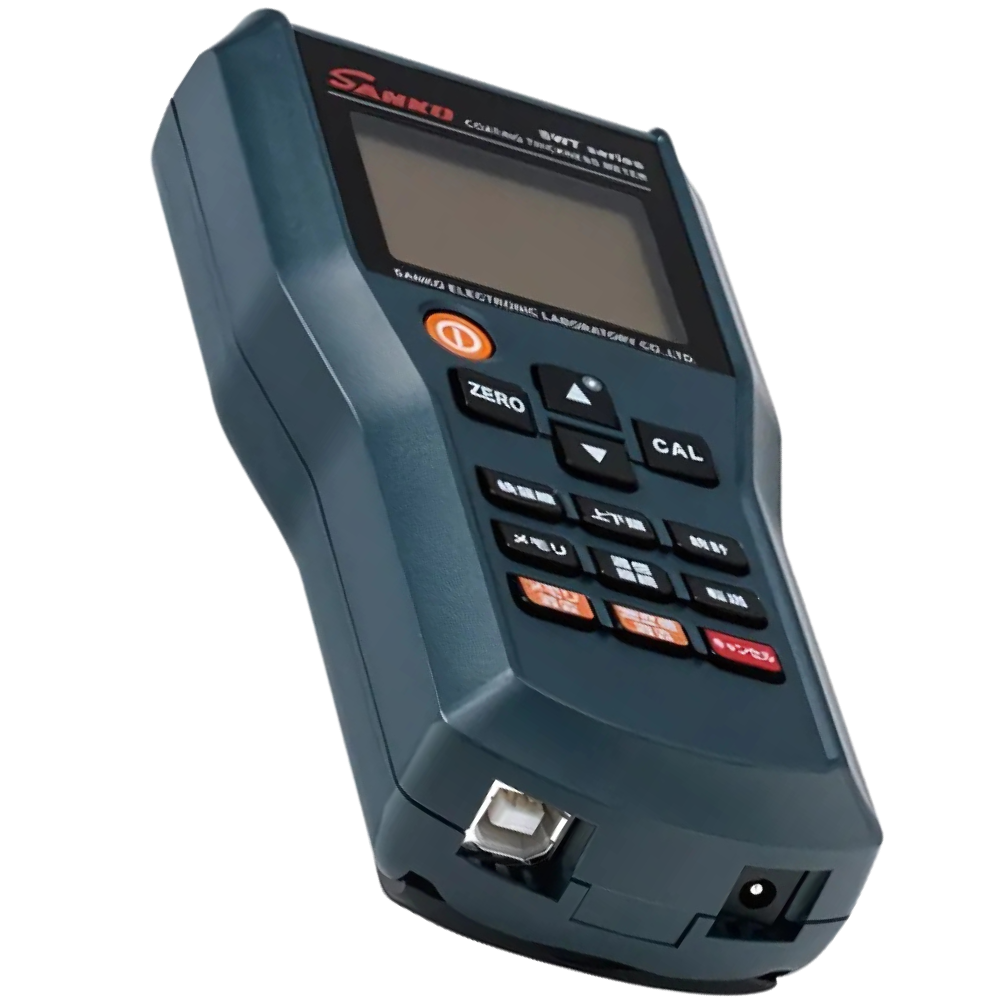

• Slim body design

The body is slimmer than conventional coating thickness gauges.
It provides an excellent grip for women and people with small hands.
It reduces fatigue when working with the gauge.

• Tilt Stand

Newly equipped with a tilt stand that allows it to be raised and used.

• Built-in statistics function (NEO-II / NEO-III)

Statistics for all memory data, group, block, and section data can be displayed on the LCD screen.

• Calibration curve registration function (NEO-II / NEO-III)

The number of registered calibration curves is 10 (NEO-II) and 100 (NEO-III). You
can register and select the calibration curve that matches your characteristics and start measuring immediately.

• Upper/Lower Limit Function (NEO-II/NEO-III)

A set of limit values can be set for each registered calibration curve.
If the measured value is outside the upper/lower limit range, the set limit value will flash and an alarm will sound.

• Large capacity measurement value memory function (NEO-II / NEO-III)

Thanks to the data memory function, one person can measure and record even for multi-point measurements that inspect several thousand film thicknesses in a day. This
reduces the labor and costs of inspection work.
The memory capacity is 20,000 points (NEO-II), 40,000 points (NEO-III). You
can work without worrying about the remaining memory.
Measurement data is saved by dividing it into groups, blocks, etc.

• Wireless output to printer (NEO-III)

Using a dedicated receiver (sold separately), data can be transferred to the printer via a specific low-power radio connection available only in Japan.
