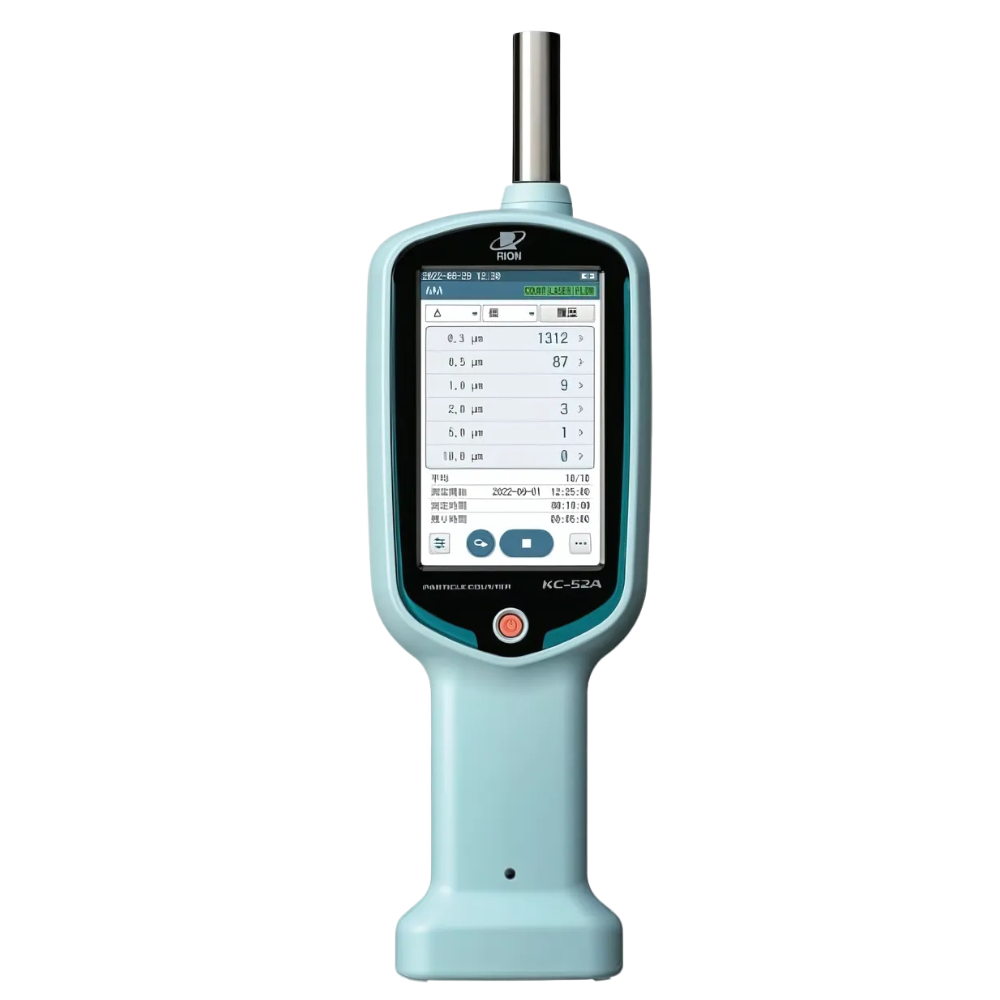

Rion รุ่น KC-52A เครื่องวัดฝุ่นละอองในอากาศรุ่นสัมผัสหน้าจอขนาดพกพา,Airborne particle counters,minimum measurable particle φ0.3μm

specification

KC-52A

Optical Method

Side scattering method

light source

Semiconductor laser (wavelength 780nm, rated output 35mW)

Laser Product Class

Class 1 IEC60825-1

Light receiving element

Photodiode

Rated Flow

2.83 L/min

Particle size range

6 levels: 0.3, 0.5, 1.0, 2.0, 5.0, 10.0 μm or more

Maximum particle number concentration

140 000 000 pieces/m³ (counting loss within 10%)

Measurement time/measurement volume

Manual, arbitrary time (1 second to 2 hours)
283 mL (6 seconds), 1 L (21 seconds), 2.83 L (1 minute), 10 L (3 minutes 32 seconds), 28.3 L (10 minutes)

Measurement value display

Accumulation value, difference value

Equivalent Volume

1L, 28.3L, 1000L, no conversion

Number of consecutive measurements

Up to 99 times

Measurement interval

Maximum 24 hours (set as measurement period)

Number of measurement conditions saved

Up to 3 patterns

Number of times measurement results can be saved

Approximately 10,000 times (number of times depends on the amount of measurement data, rotating method)

Saved Data Format

Tab-separated value (TSV) text file

How to retrieve saved data

Copy to USB memory

Alarm function

Particle count upper limit monitoring (buzzer sounds when count is above a set value)
or particle count fluctuation measurement (beep interval varies according to particle count)

Password function

Only administrators or users can change the measurement conditions.

Display

4.3 inch color LCD panel

Access

Touch panel, buttons

Display Language

Japanese, English

External Terminals

USB C (for connecting to computers, printers and AC adapters)

Operating temperature and humidity range

10℃ to 40℃, 85% RH or less (no condensation)

power supply

AC adapter (input voltage: AC100-240 V, 50/60 Hz)

Lithium-ion battery (built-in, operating time: approx. 7 hours, charging time: approx. 4 hours)

Size and weight

307 (H) x 93 (W) x 54 (D) mm / Approx. 680 g

accessories

Hand strap, USB cap, zero count filter, silicon tube, isokinetic suction probe

Factory Options

ISO 21501-4:2018 compliant calibration
1μm particle size modification (particle size classification 1, 2, 5, 10, 20, 30μm)

Sold separately

AC adapter (for use in Japan only, USB cable CC sold separately), AC adapter (CE compliant, power cord included, USB cable CC sold separately), charging stand, carrying case, vinyl tube, communication dock, USB memory 8GB, printer DPU-S245, thermal recording paper TP-34, dust-free thermal recording paper TP-33, USB cable (CC), USB cable (C-miniB), USB cable (A-miniB), USB cable (AB), RP monitor Evo10 K1701 Ver.2/Ver.3, RP monitor Evo10 K1701P Ver.2/Ver.3, tube diameter conversion adapter
