Fluke รุ่น Fluke-1AC-II-90-1000 ปากกาตรวจวัดแรงดัน,Non-contact voltage tester,flat tip,voltage range:90~1000VAC

Fluke รุ่น Fluke-1AC-II-90-1000 ปากกาตรวจวัดแรงดัน,Non-contact voltage tester,flat tip,voltage range:90~1000VAC
รหัสสินค้า SKU-22822
หมวดหมู่ เครื่องทดสอบแรงดันไฟฟ้า และเครื่องทดสอบวงจรไฟฟ้า(Electrical testers, voltage testers, and circuit testers),Fluke
ราคาปกติ 2,400.00 บาท
ลดเหลือ 0.00 บาท
สถานะสินค้า Pre-Order
ลงสินค้า 16 พ.ย. 2567
อัพเดทล่าสุด 16 พ.ย. 2567
คงเหลือ 1 ชิ้น
จำนวน
ชิ้น
หยิบลงตะกร้า
หนังสือรับรองบริษัท
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay

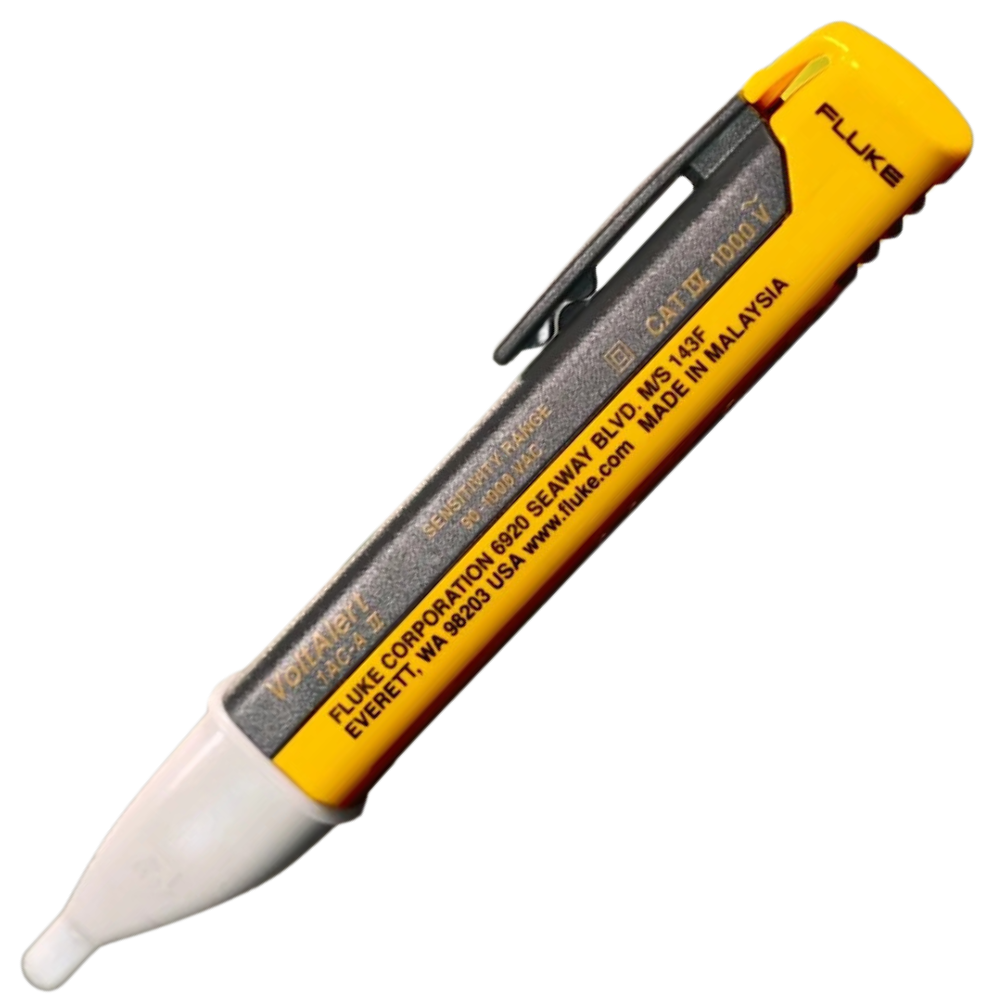

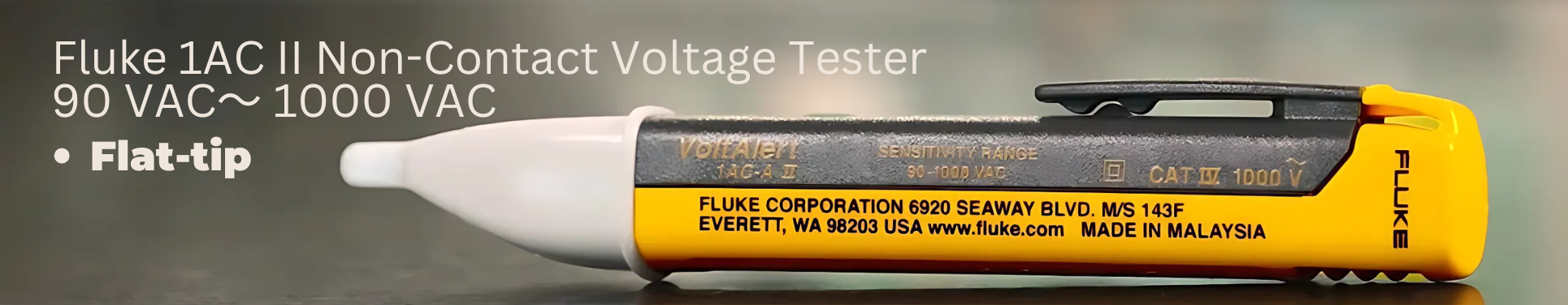

  • The Pocket-Sized Voltage Detector

The FLK-1AC-A1-II is part of the family of next generation VoltAlert AC non-contact voltage testers from Fluke. Easy to use, you just touch the tip to a terminal strip, outlet, or supply cord. When the tip glows red and the unit beeps, you know there's voltage present. Electricians, maintenance, service, safety personnel, and homeowners can quickly test for energized circuits in the workplace or at home.

  • VoltBeat (System Self-Test)

VoltBeat is a self-test feature for visual confirmation of battery and system integrity, and power on. It provides a double-flash every two seconds during normal operation.

  • VoltAlert Series

Fluke now offers three models of noncontact voltage detectors, making sure you have the right tool for the job.

    • 1AC-A1-II - 90 V AC to 1000 V AC
    • 2AC - 90 V AC to 900 V AC
    • LVD2 - 90 V AC to 900 V AC
  • Other Names for Non-Contact Voltage Testers

Voltage presence is useful information to have when troubleshooting or working on a failed asset. The first tool you'll reach for is a non-contact voltage detector. They are also know as:

  • Electricity tester pen
  • Voltage tester pen
  • Non-contact voltage detector
  • Voltage detector pen
  • AC voltage detector
  • Non-contact electrical tester
  • Electrical sniffer
  • Volt alert tester


  • Contactless voltage detector
  • Non-contact circuit tester
  • Non-contact voltage sensor
  • AC tester pen
  • No-touch voltage tester
  • Proximity voltage tester
  • Live wire tester pen
  • Non-contact power tester
  • Non-contact voltage checker

  • Voltbeat technology and continuous self-test - so you always know it's working
  • Upon detection, tip glows and beeper sounds (Audible/Silent)
  • CAT IV 1000 V for added protection
  • Expanded range: 90 V to 1000 VAC
  • 20 V to 90 V AC control circuit model also available
  • Flat-tip
  • On/Off Button
  • IP rating IP 40

Operating Principles

Senses the steady state electrostatic field produced by AC voltage through insulation without requiring contact to the bare conductor. A red glow at the tip and a beeping noise (if not switched OFF) indicates the presence of voltage.

Voltage sensing ranges

Nominally, 90 V AC to 1000 V AC

Detector tip style

Flat-tip

Light source

One high intensity red LED

Agency Approvals

‍‍‍

Safety

IEC 61010-1: Pollution Degree 2, IEC 61010-2-030: CAT IV 1000 V

EMC

IEC 61326-1: Portable

IP Rating

IP 40

Operating Temperature

-10°C to 50°C (-14°F to 122°F)

Operating Humidity Ranges

0% to 95% (0°C to 30°C)

0% to 75% (30°C to 40°C)

0% to 45% (40 to 55°C)

Operating Altitude

3000 m

Cleaning

Clean with damp cloth

Batteries

2 AAA alkaline batteries included

Battery Life

Typical battery life of greater than 1 year

Warranty Period

Two years

Product does not respond to random electrostatic discharge.
