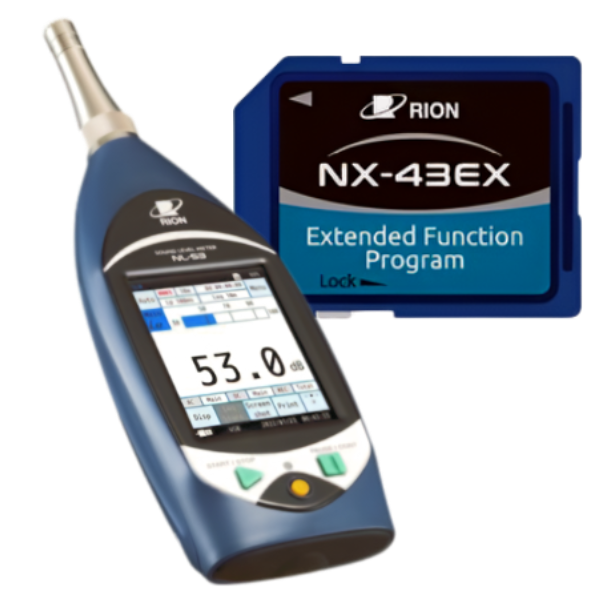

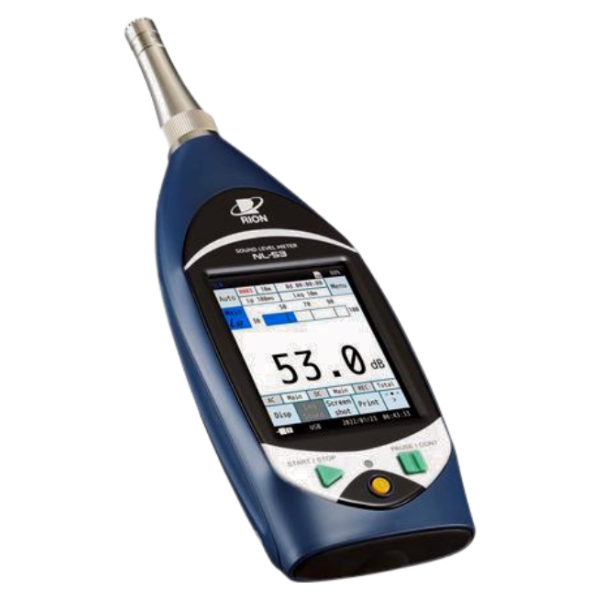

Rion รุ่น NL-43EX เครื่องวิเคราะห์เสียงมาตรฐานรองรับฟังก์ชันการติดตั้งโปรแกรมเสริม,Sound level meter, NX-43EX pre-installed,Class-2

“Connect” is the key word for RION’s New Gen Sound Level Meters.More intuitive operation with touch panel, LAN terminal for more expandability, USB type-C connector for power supply/ data transfer, and newly added measurement function enhance your possibility of noise measurement. We carefully designed our new sound level meter to maintain the advantages of previous model such as easy operation, reliability, and robustness. At the same time, there are plenty of new features to the new model to support your measurement task. Fully complied with international standards IEC 61672-1:2013, ANSI/ASA S1.4.

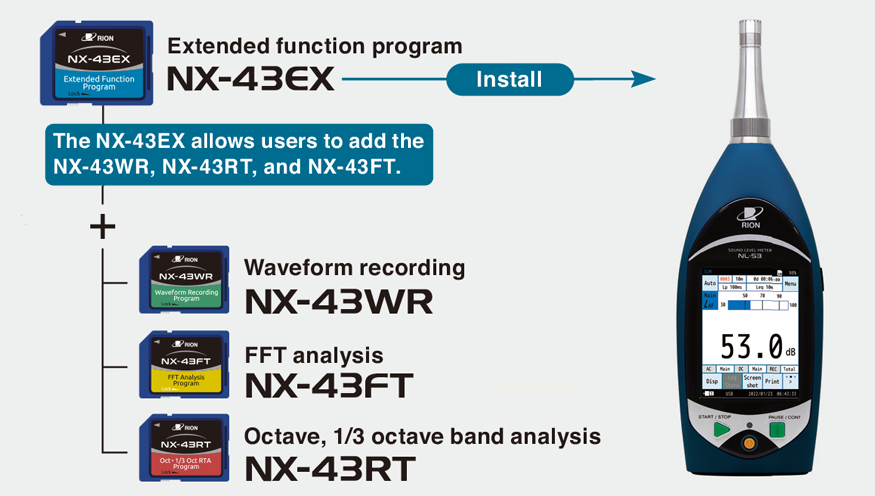

• Optional program feature list

• • Other optional programs can be added


• • Supports long-term measurements such as environmental measurements.Recording time exceeds 1,000 hours (approximately one month).
  • Auto store function Continuous recording of Lp (instantaneous value) and Leq calculation (equivalent sound pressure level, percentile sound pressure level, maximum value, etc.) can be performed simultaneously. Each data is saved in CSV format on the SD card. Data can be managed using the environmental measurement data management software AS-60, and can also be displayed using spreadsheet software.
  • Three types of trigger functions: level trigger, timer auto and external trigger.Measurement starts when a trigger occurs.
  • LNA function:Allows operation and status monitoring from remote locations.
  • Four types of marker functionsYoucan add markers and check them later.
• Waveform recording program NX-43WR ^*


  It is possible to record the sound level while calculating it.
  The recorded data can be played back on a computer and also supports frequency analysis (uncompressed WAVE file). The
  waveform processing software AS-70 allows graph display, level processing, frequency analysis, file output and playback of the analysis results.

• FFT analysis program NX-43FT (scheduled for release) ^*


  It is possible to perform FFT analysis and measure the loudness of each frequency.
  The analysis frequency range is 20kHz, and the frequency resolution is 2.5Hz (8000 lines).
  It is possible to read out saved analysis results and display them overlaid on the graph being analyzed.
  The zoom magnification is up to 40x, and up to 20 peak lists can be displayed.

• Octave/1/3 octave real-time analysis program NX-43RT (scheduled for release) ^*


  It enables measurements that comply with JIS C 1513-1: 2020 "Octave band and 1/N octave band filters". It has
  the function of reading out saved analysis results, overlaying them with the graph being analyzed, and calculating and displaying the NC curve graph and NC value required for evaluating indoor noise.
  By using the environmental measurement data management software AS-60RT, it is possible to recalculate and manage data on a computer. It
  is also possible to output the voltage (AC out, DC out) of the band selected at your discretion.

• LAN terminal for strengthening the network connection with other communication devices
• Web app for easy noise monitoring via a PC or smartphone web browser
• USB Type C connector for power supply, serial communication, and SD card access, and it can be a replacement of AC adapter, RS-232C cable, and USB cable
• A single unit can measure up to 4ch simultaneously, enabling an efficient noise measurement
• Intuitive and easy-to-understand user interface by combining physical keys and touch panel operation
• Calibration history can be viewed and saved to manage the measurement accuracy of the instrument
• Enhanced measurement functions, including new calculation parameter, Leq_mov
• Class 1 sound level meter and Class 2 sound level meter, conforming to Measurement Law, IEC, JIS, ANSI/ASA, and JJG

• Carrying case ×1,
• Windscreen WS-10 ×1,
• Windscreen fall prevention rubber ×1,
• Hand strap ×1,
• Size AA alkaline batteries ×4,
• SD card 512 MB（NX-43EX preinstalled model only）
