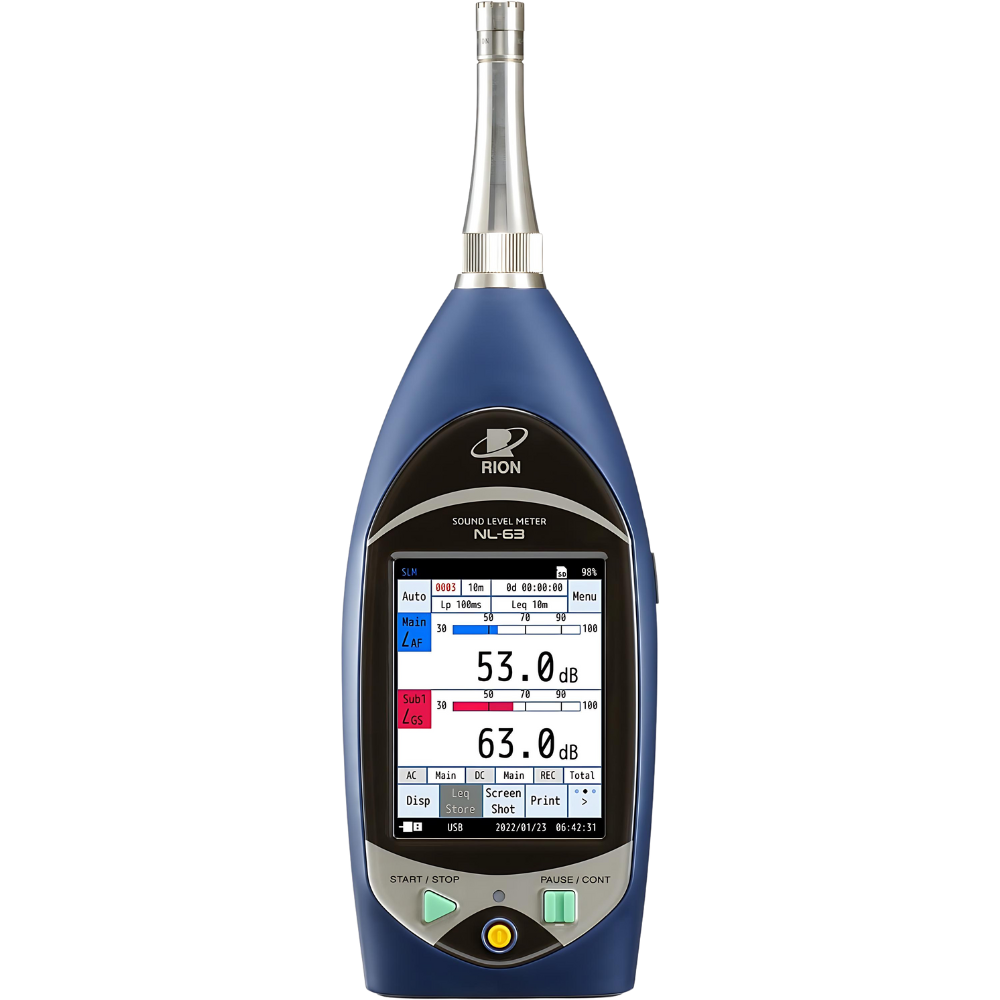

Rion รุ่น NL-63(Uncertified) เครื่องวิเคราะห์เสียงมาตรฐาน,Precision sound level meter,JIS C 1516:2020 Class 1,frequency range:1Hz～20,000Hz

Type Approval Number

No. TF232 (designated sound calibrator: NC-72B, NC-75)

Compliance standards

Measurement Law Precision Sound Level Meter
JIS C 1516: 2020 Class 1, IEC 61672-1: 2013 Class 1, JIS C 1509-1: 2017 Class 1, ANSI/ASA S1.4-2014/Part1 Class 1,
ISO 7196: 1995

CE Marking
/ EMC Directive 2014/30/EU EN 61326-1:2013
/ RoHS Directive 2011/65/EU EN IEC 63000:2018
/ Low Voltage Directive 2014/35/EU EN 61010-1:2010/AI: 2019
UKCA marking, China version RoHS, VCCI class B

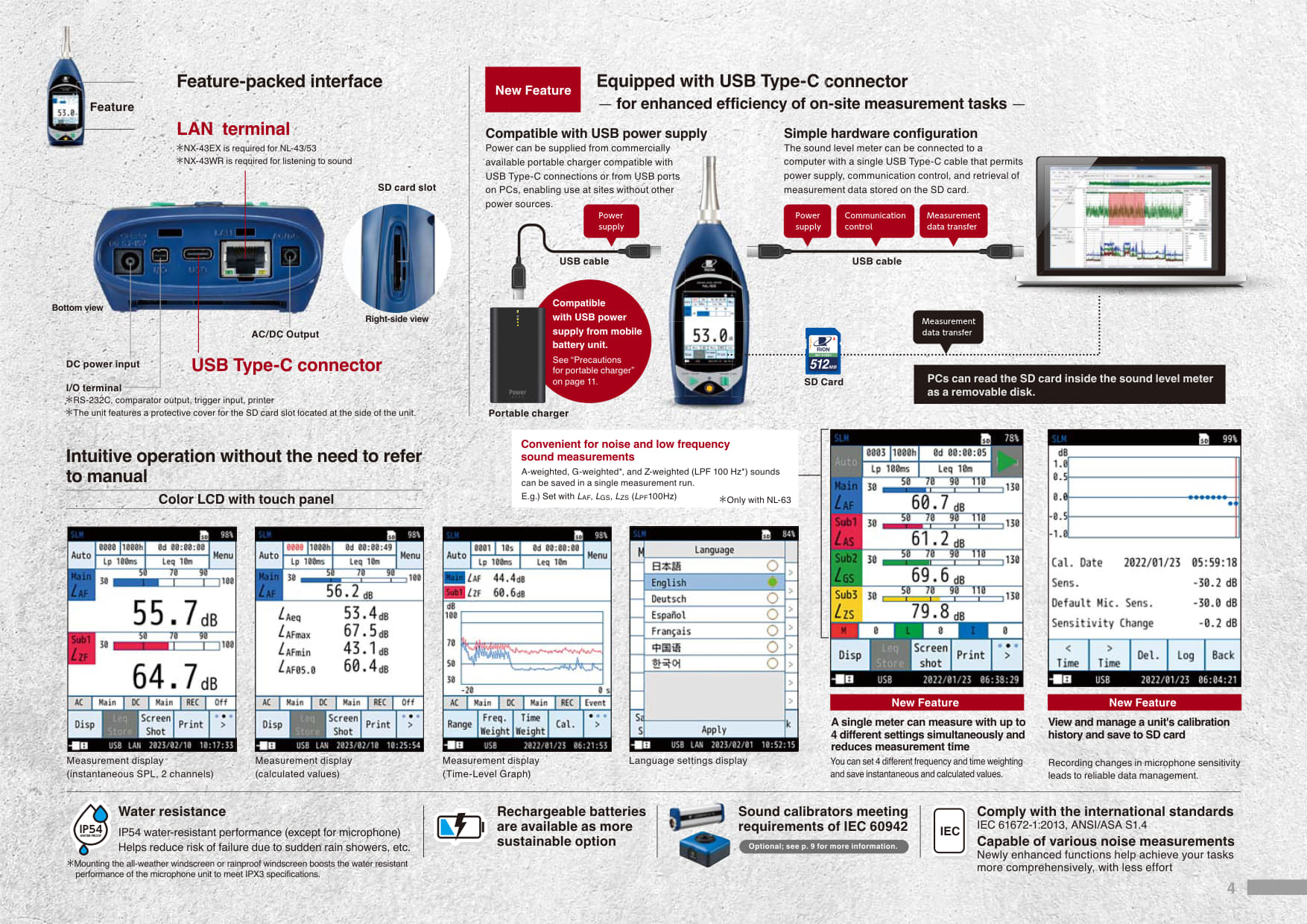

Measurement features

Measurement features

Up to four channels (Main channel, Sub1 to Sub3 channels) can be measured simultaneously with the selected time weighting and frequency weighting.

Instantaneous Value

Time-weighted sound level Lp

Calculated value

Time-average sound level Leq , sound exposure level LE , maximum time-weighted sound level Lmax ,
minimum time-weighted sound level Lmin , percentile sound level LN ,
peak sound level LCpeak

Microphone

Model

UC-59L

Sensitivity level (typical)

-27 dB

Measurement Level Range

A-weighted: 25 dB to 138 dB, C-weighted: 33 dB to 138 dB,
G-weighted: 43 dB to 138 dB, Z-weighted: 50 dB to 138 dB,
C-weighted peak sound level: 60 dB to 141 dB, Z-weighted peak sound level: 65 dB to 141 dB

Self-Noise Level

A-characteristics

17 dB or less

C-characteristics

25 dB or less

Z characteristics

42 dB or less

G characteristics

35 dB or less

Measurement Frequency Range

1Hz to 20kHz

Frequency Weighting Characteristics

A, C, G and Z characteristics

filter

Digital Processing

High-pass filter
Low-pass filter Cutoff frequency: 100 Hz, 500 Hz

Time Weighting Characteristics

F (fast), S (slow), I (impulse) and 10 s

Input Range

Automatic Switching

Bar graph display

upper limit

70 dB to 130 dB in 10 dB increments

lower limit

20 dB to 60 dB in 10 dB increments

Sampling Period

Lp , L eq, L E, L max, L min, L peak: 20.8 µs (sampling frequency 48 kHz), L N: 100 ms

Proofreading

A reference signal is input using the sound calibrator NC-75/NC-74 or pistonphone NC-72B/NC-72A, and the signal input sensitivity is adjusted.
Up to 30 calibration histories can be managed and saved on an SD card.

Reference signal output to external devices

frequency

1 kHz

Output Level

Bar graph upper limit -6 dB

Correction Function

Windscreen correction function

Corrects the effect on frequency characteristics when a windscreen (WS-10, WS-15, WS-16) is installed to comply with standards.

Diffuse sound field correction function

Correct the effect on frequency response to comply with standards in a diffuse sound field

Delay Time

After the measurement start operation, measurement will start after the specified time has elapsed (OFF, 1, 3, 5, 10 seconds)

Back erase function

When this function is implemented, data from a specified time back is excluded from the calculation (OFF, 1, 3, 5 seconds), cannot be used in conjunction with Auto store mode or waveform recording

display

3.5-inch TFT-LCD QVGA with backlight *Touch panel (resistive film type) function
Numeric display update cycle: 1 s, Time-level graph/bar graph update cycle: 100 ms

Manual Store

Manual Store

Manually record one address at a time to the internal memory or SD card

Number of recorded data

Internal memory: Maximum 1000 data sets
SD card: Depends on the capacity of the SD card *1

Measurement time

10 seconds, 1, 5, 10, 15, 30 minutes, 1, 8, 24 hours, user setting (1 second to 24 hours)

Auto store*2

Auto Store

Automatically records instantaneous values ( Lp store) and calculated values (Leq store) at set intervals on the SD card continuously.

Lp store cycle

Off, 10ms, 25ms, 100ms, 200ms, 1s

Leq calculation cycle

Off, 10 seconds, 1, 5, 10, 15, 30 minutes, 1, 8, 24 hours, or user-defined (1 second to 24 hours)

Number of recorded data

SD card: Can store names from 0000 to 9999

Measurement time

10 seconds, 1, 5, 10, 15, 30 minutes, 1, 8, 24 hours, user setting (1 second to 1000 hours), continuous (depending on SD card capacity*1)

Data Format

CSV file

Data Recall

View store data and screen capture images

Setting Memory

Settings can be saved to the internal memory or SD card and recalled at startup or at a specified time.

Waveform recording *2 *3

File formats

Uncompressed WAVE file

Sampling Frequency

Choose from 48 kHz, 24 kHz, 12 kHz, 1200 Hz, and 240 Hz

Data Length

Choose from 24 bit or 16 bit

output

AC Output

Output voltage: 1 Vrms (effective value) at the upper limit of the output range (DC output and AC output can be output simultaneously)

DC Output

Output voltage: 2.5 V, 25 mV/dB at the upper limit of the output range (DC output and AC output can be output simultaneously)

Output Range

Linked to the upper limit of the bar graph, or can be set in 10 dB increments from 70 dB to 130 dB

Comparator*2

When the specified channel exceeds the set level, the comparator output turns ON (maximum input voltage 24 V, internal resistance approx. 480 Ω, power dissipation 300 mW)

RS-232C communication

By using a dedicated cable, it is possible to obtain measured values and change settings using communication commands.

USB

Communication Control

Measurement values can be acquired and settings can be changed using communication commands.

Data Transfer

You can transfer data by having your computer recognize the SD card as a removable disk.

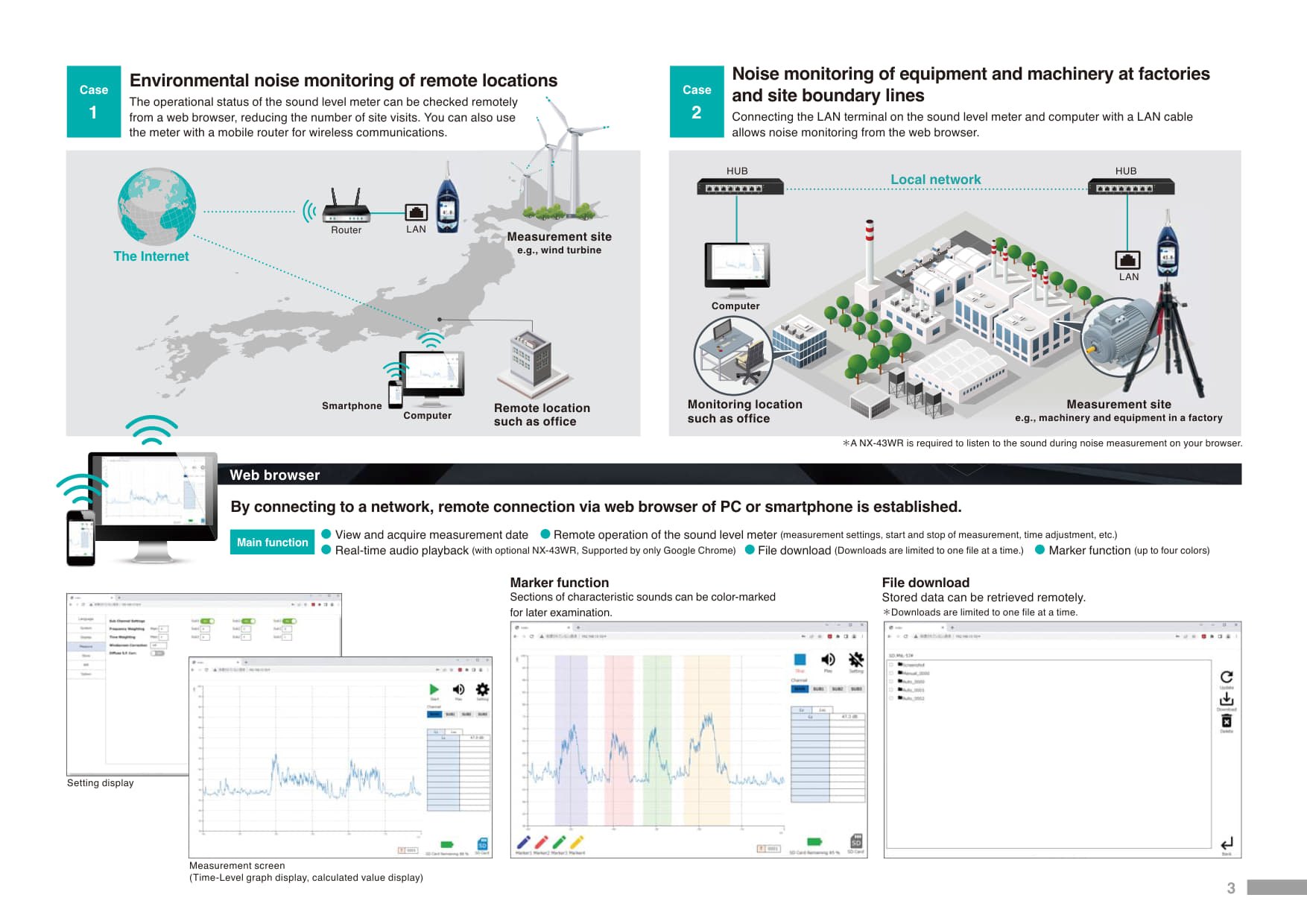

LAN※2

Communication Control

Measurement values can be acquired and settings can be changed using communication commands.

Data Transfer

You can transfer data from the SD card to your computer.

Web browser display

Accessible from a web browser to view measurements, change settings, and play audio*3 (Google Chrome on computers only)

Continuous data output*2

Data type (instantaneous value)

Lp

Data type (calculated value)

L eq, L max, L min, L peak

Output Interval

100 ms (0.1 s)

power supply

power supply

Power supply for 4 AA batteries, external power input terminal and USB terminal

Operating time (23°C, ECO setting)

Alkaline battery LR6: Approx. 12 hours
Nickel-metal hydride rechargeable battery HR6: Approx. 12 hours
Mobile battery: Approx. 20 hours at 5000 mAh
*When the device is set to Auto store mode and ECO setting. Operating time varies depending on the device settings, battery manufacturer, etc.

AC adapter

NE-21P (Input: AC100-240 V, 50/60 Hz, Output: DC12 V)

External Power Supply Voltage

5.7 V to 15 V (rated voltage 12 V)
USB port: 5 V (see notes on using mobile batteries)

Primary side (100 V side) power consumption

Approx. 3 W (when using NE-21P)

Operating temperature and humidity range

temperature

-10℃～50℃

Humidity

10% to 90% RH (no condensation)

Dustproof and waterproof performance*4

IP rating: IP54 (microphone excluded)

Size and weight

Approx. 265 mm (H) x 83.5 mm (W) x 34.5 mm (D), approx. 400 g (including batteries)

accessories

Carrying case x 1, Windscreen WS-10 x 1, Windscreen fall prevention rubber x 1, Strap x 1, AA alkaline batteries x 4, SD card 512 MB
