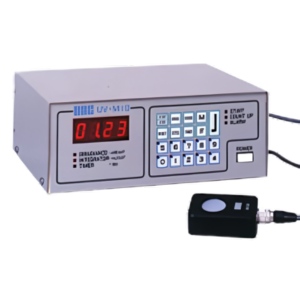

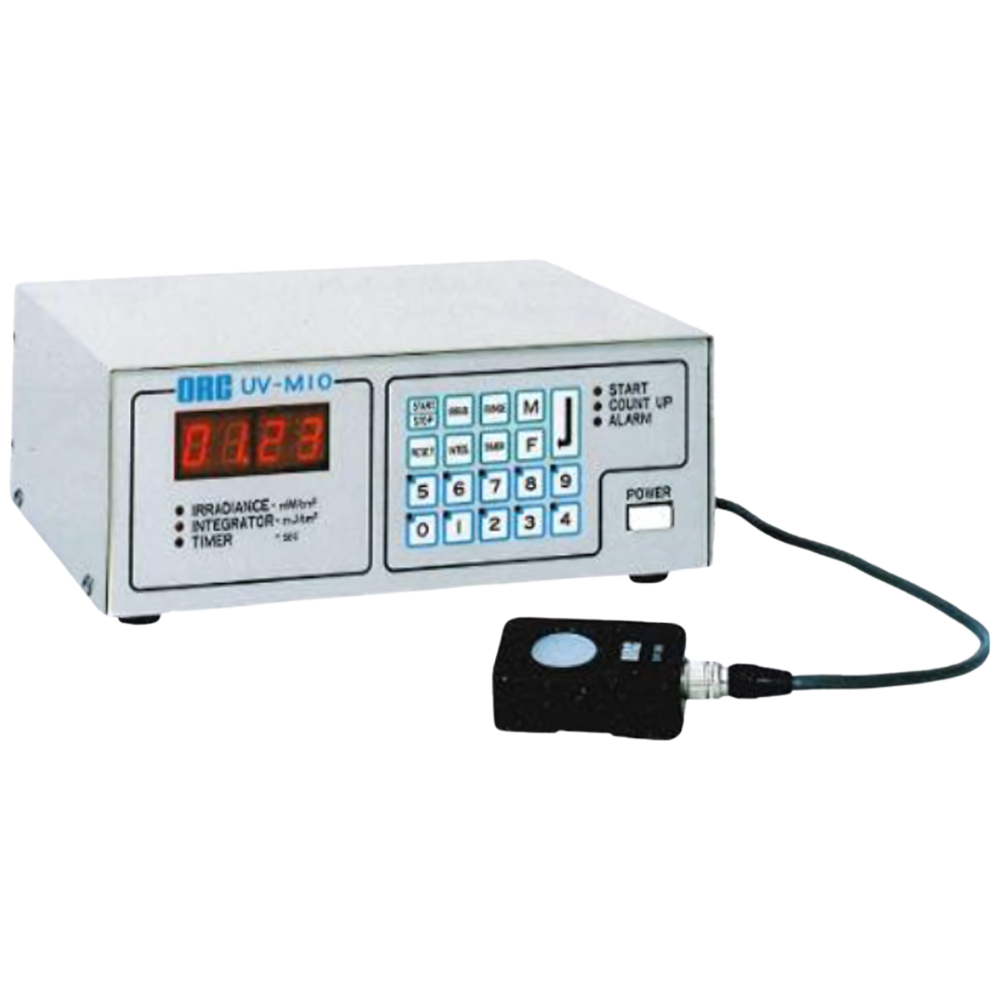

ORC รุ่น UV-M10-S-02 เครื่องวัดความเข้มข้นและปริมาณของแสงยูวีแบบอยู่กับที่,Stationary type UV intensity&energy meter,meas.range1:0.01～10.00mW/cm2,range2:0.1～50.0mW/cm2

• UV measuring instrument, photodetector, and spectral sensitivity characteristics  UV measuring instrument・receiver・spectral sensitivity characteristics


This is a measuring device for managing the amount of light in UV irradiation equipment that uses ultraviolet rays.It is equipped with a control signal contact output, so it can be used to control the amount of exposure in UV irradiation equipment, etc.

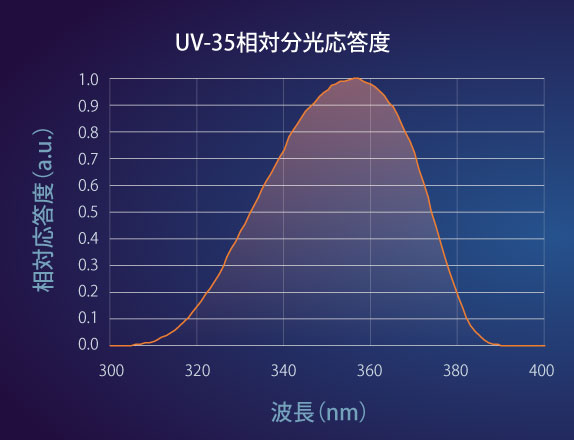

• UV measuring instrument, receiver, spectral sensitivity characteristics

• About SD type and SN type

• About the indicated values of SD and SN types

In order to ensure compatibility with old process data, the SN type uses the indicated values of the SD type (the 365 nm emission line of the high-pressure mercury lamp used as the calibration radiation source in the measurement set is adjusted to 39% higher than the illuminance value displayed at that time (mW/cm2 display).

• This is an ultraviolet light meter that can output a control signal for ultraviolet exposure.
• It has multiple functions such as 10 types of light intensity settings, light intensity measurement, illuminance measurement, timer setting, and time measurement.
• During light measurement, you can switch between illuminance display and time display.
• You can choose between the built-in type UV-M10-P and the tabletop type UV-M10-S.
• Please select the receiver from UV-25, 35, or 42 according to the light source you are using (or plan to use) and the sensitivity of the resist, etc. However, we recommend that you select UV-SN25, UV-SN35, or UV-SN42 when using in the manufacturing process of electronic circuit (printed) boards, and UV-SD25, UV-SD35, or UV-SD42 when using in the manufacturing process of semiconductor or liquid crystal boards.

Model	UV-M10-P/S
Receiver (replaceable)	UV-SD35 (UV-SN35)
Measurement wavelength range	310-385nm
Measurement Illuminance Range	Switching by switch	Range 1: 0.01 to 10.00mW/cm² Range 2: 0.1 to 50.0mW/cm²
Measurement range	0.01～999.9mJ/cm2
Input/Output Signals (D-Sub Connector)	Input (1) Remote start (2) Remote stop Relay contact output (1) NO (ON at start) (2) NC (3) Alarm
Fitting Accuracy	Within ±2% of our UV standard
Repeatability	Within ±2%
