Shishido รหัส AGZ-III-PA ปืนเป่าพ่นไอออนสำหรับล้างไฟฟ้าสถิต,Ion blow gun piezonizer,air pressure:0.05~0.6MPa,Ion balance:±15volts

Shishido รหัส AGZ-III-PA ปืนเป่าพ่นไอออนสำหรับล้างไฟฟ้าสถิต,Ion blow gun piezonizer,air pressure:0.05~0.6MPa,Ion balance:±15volts
รหัสสินค้า SKU-22374
หมวดหมู่ อุปกรณ์และเครื่องกำจัดไฟฟ้าสถิต(Ionizer&Accessory)
ราคาปกติ 22,000.00 บาท
ลดเหลือ 0.00 บาท
สถานะสินค้า Pre-Order
ลงสินค้า 6 ส.ค. 2567
อัพเดทล่าสุด 8 ก.ย. 2568
คงเหลือ 1 ชิ้น
จำนวน
ชิ้น
หยิบลงตะกร้า
หนังสือรับรองบริษัท
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay

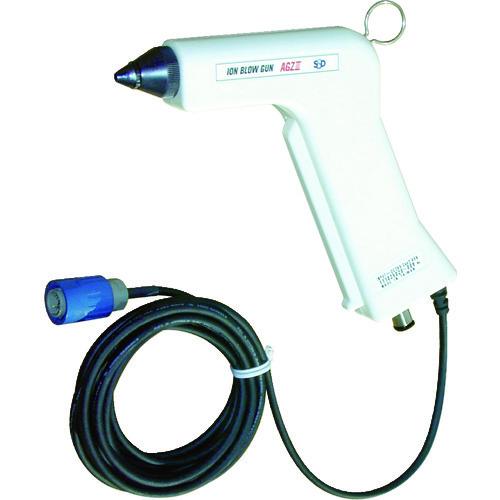

Piezonizer model AGZⅢ-OV is a small-type, lightweight air guntype ionizer using the high-frequency system. While removing with the static electricity of a charged object,the dust adhering with static electricity is blown away.

  • The plastic air gun fits snugly into the operator’s hand, and, at a lightweight 200 grams, greatly increases work efficiency.
  • This product is highly effective static elimination, and ion balance is also good by having a high frequency AC system.
  • The attached cable has used the robot cable with high flexibility.
  • Since the high-voltage power supply and the air valve are mounted in the main unit, an external controllers are unnecessary.
  • The plastic gun has a shape that fits your hand and is lightweight at 200g, which improves work efficiency.
  • The high-frequency AC method has a high static elimination effect and a good ion balance.
  • The air gun has a built-in piezoelectric transformer, so the high-voltage part is not exposed to the outside, and it is a safe design with no high-voltage cables.
  • A robot cable with high flexibility is used for the power supply connection cable from the main unit. The power connection cable is 3m and the AC adapter cable is 0.3m, with a total length of 3.3m.
  • Compliant with CE standards.
  • Air working pressure 0.05~0.6MPa
  • Air consumption 370 liters/min (at 0.6 MPa)
  • A flat nozzle (OAG-F) is also available as an option.



  • Fits well into the operator’s hand and, at a lightweight 330g, greatly increases work efficiency.
  • Wave motion nozzle powerfully blows away dust with pulses of air.
  • High frequency AC method increases static elimination and achieves a good ion balance.
  • Accompanying cable uses a robot cable and is very flexible.
  • High voltage power supply and air valve are attached to the main unit so there is no need for a separate controller.

Model

AGZ-Ⅲ

Input power supply

24 VDC (AC adapter supplied; compatible with 100 to 240 VAC)

Ion balance

±15 V or less(at factory shipment)

Supply airflow

Max. 370 Nℓ / min (ANR)(0.6 MPa)

Ozone density

0.04 ppm or less(at 200 mm)

Operating Environment

0 to 40℃ /65%RH or less (no condensation)

Supply air range

0.05 to 0.6 MPa

Main unit dimensions

164.6×25×135.8 mm (L×W×H)exc. protrusions.

Weight

Approx. 200g (exc. cable)

Accessories

  • Instruction manual
  • AC adapter
